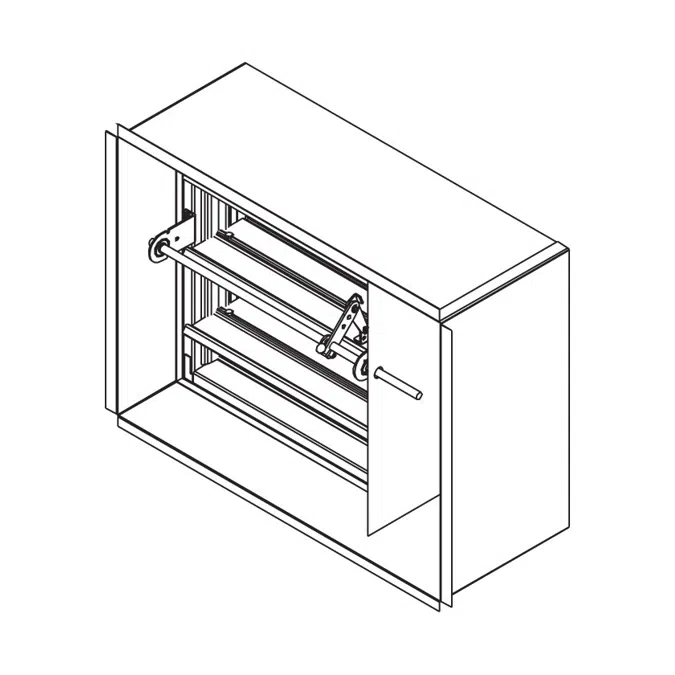

Combination Fire/Smoke Damper - 1-1/2 Hour - Side Panel - Front Access - Triple-V Blade - Class 1 - FSD-141-SP

Standard Construction

Frame: 5" x 1" (127 x 25) galvanized steel hat channel with inerlocking corner gusset. Equivalent to 13 ga. (2.4) channel frame. Low profile head and sill are used on sizes less than 13" (330) high.

Blades: 6" x 16 ga. (152 x 1.6) galvanized steel - triple-V.

Sleeve: 20 ga. (1.0) galvanized steel.

Axles: 1/2" (13) diameter plated steel hex.

Linkage: Concealed in frame.

Bearings: Stainless steel oilite, sleeve-type.

Seals: Silicone blade edge seals and flexible metal jamb seals.

Actuator: 120 VAC, power-open, spring-close, external mount.

Fire Closure Device:
HS-10 (electric actuators)
PFV (pneumatic actuators)

Fire Closure Temperature: 165^oF (75^oC)

Minimum Size: 14" x 8" (356 x 203)

Maximum Size: 44" x 48" (1118 x 1219)

Ratings

UL 555 Fire Resistance Rating: 1-1/2 hour (vertical and horizontal)

UL 555S Leakage Class: 1
(8 cfm/sq.ft. @ 4 in. wg.)
(0.04 m³/s/m² @ 1.0 kPa)

Maximum Dynamic Closure Velocity: 2,000 fpm (10.2 m/s)

Maximum UL 555S Rated Pressure: 4 in. wg. (1.0 kPa)

Maximum Temperature: 350^oF (177^oC)
