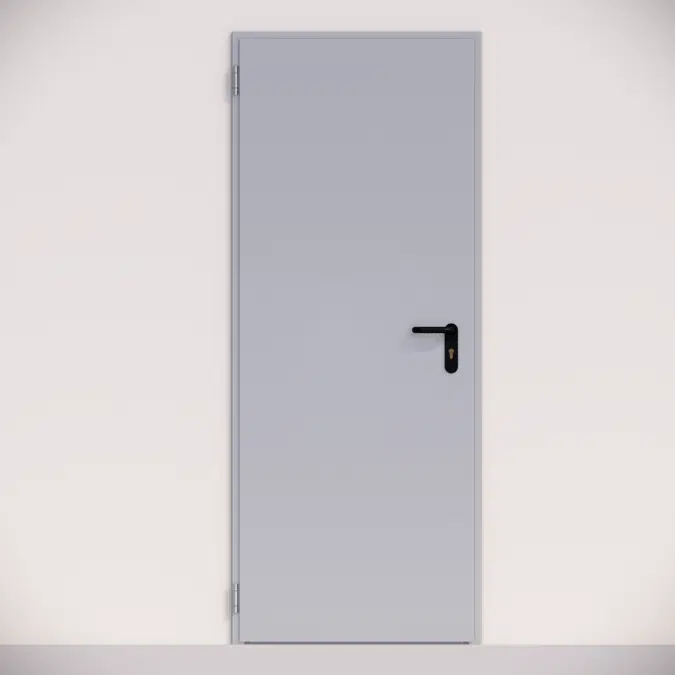

CLASSIC EI2 60 1 LEAF FIRE DOOR

MC3 frame made of 1,2 mm high resistant galvanized steel with fitting for cold smoke seal and provided with anchors and holes for plug and screw fixing.

Leaf with 53 mm thickness, made of galvanized steel skin pass type, filled with rock wool: density of 150 Kg/m3.

Certified lock marked CE.

Certified hinge marked CE type B01 and B02.

For doors with a nominal height equal to or greater than 2400 mm, an additional hinge is included.

Fire rated black handle anti coupling norme DIN norm, made of fire proof polyamide with steel core.

Intumescent seal peripheral between the frame and the leaf.

2 dog bolts.

Separator for an easy installation.

Identification plate.

Assemby and maintenance instructions.

Optional seals.

Specification

Fire resistence: EI60 tested in accordance with EN1634-1 Classification to EN 13501-2
Door dimensions:
Clear Opening Width: 710, 800, 900, 1010, 1110, 1210
Clear Opening Height: 2015, 2105
Wall Opening Width: 800, 890, 990, 1100, 1200,1300
Wall Opening Height 2060, 2150
Standard color: RAL 7035
Plain (pre-painted)
Embossed and textured (painted)
