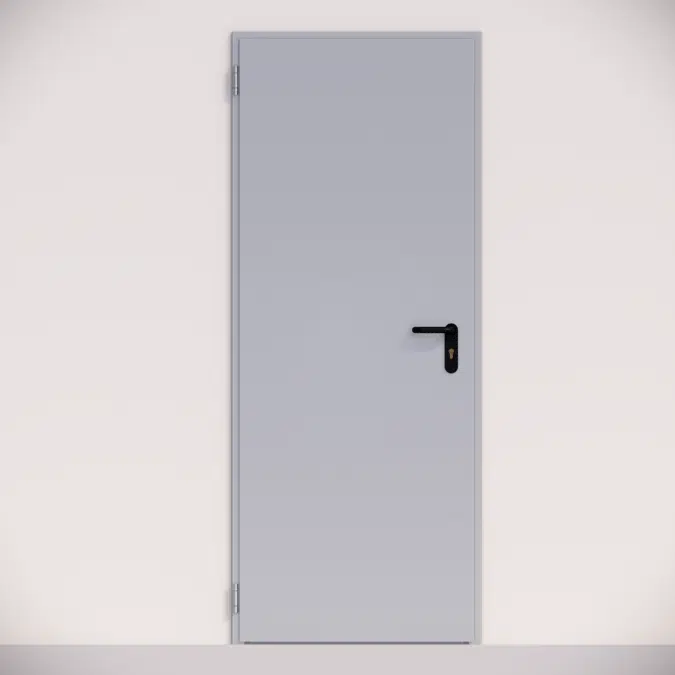

CLASSIC EI2 120 1 LEAF FIRE DOOR

MC3 frame made of 1,2 mm high resistant galvanized steel with fitting for cold smoke seal and provided with anchors and holes for plug and screw fixing.

Leaf with 63 mm thickness, made of galvanized steel skin pass type, filled with rock wool: density of 180 Kg/m3.

Certified lock marked CE.

Certified hinges marked CE type B01 and B02.

For doors with a nominal height equal to or greater than 2400 mm, an additional hinge is included.

Fire rated black handle anti coupling norme DIN norm, made of fire proof polyamide with steel core.

Intumescent seal peripheral between the frame and the leaf.

2 dog bolts.

Separator for an easy installation.

Identification plate.

Assemby and maintenance instructions.

Optional seals.

Specification

Fire resistence: EI2 120 tested in accordance with EN1634-1
Classification to EN 13501-2
Door dimensions:
Clear opening Width: 710, 800, 1010, 1110, 1210
Clear Opening Height: 2015, 2105
Wall Opening Width: 800, 900, 1000, 1100, 1200, 1300.
Wall Opening Heigth: 2060, 2150
Standard colour: ral 7035
Plain (pre-painted)
Embossed and textured (painted)
