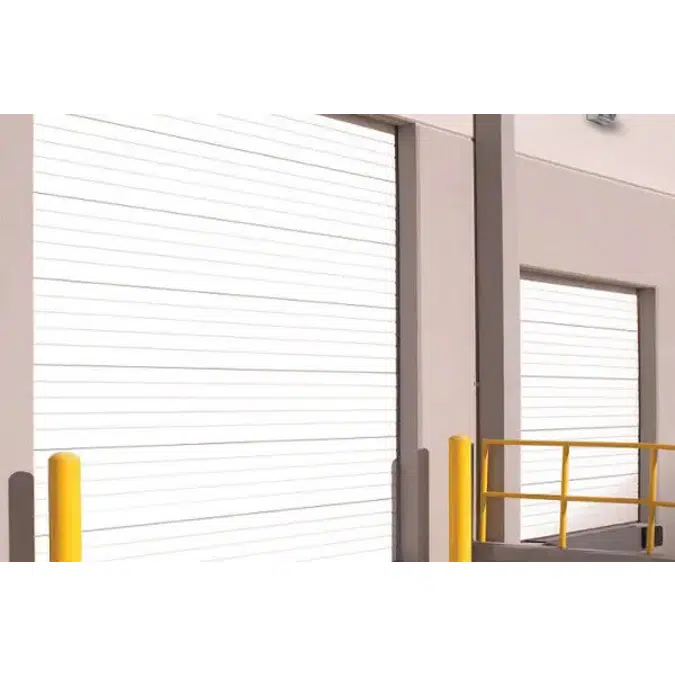

Insulated Wind Load Sectional Door - 429

Model 429 is a insulated door featuring Miami-Dade certifications for static pressures and impact with a R-value of 7.6. Constructed of 24-gauge steel and designed with 4” horizontal struts to enhance door strength.

BIM objects are for general reference and should not be used for exact construction information. Please contact an Overhead Door Distributor when exact dimensions are required.

Specification

Standard Features
Standard max width: 14'2" (4318 mm)
Standard max height: 24'1" (7341 mm)
R-value: 7.6
U-value: .13
Warranty: 1 year limited
Nominal thickness: 2" (51 mm)
Exterior steel: 24-gauge galvanized steel
Exterior surface: ribbed
Interior color: white
Struts: 4" horizontal strut (doors over 10'2" wide)
Standard springs: 10,000 cycle
Standard track: 2" (51 mm)
Weather stripping: flexible PVC bottom with retainer
Joint profile: tongue-and-groove
Wind load: certified to meet Miami-Dade wind load requirements
Door Options
- Chain hoist operation
- Motor operation
- High Cycle Springs - 25k, 50k, 100k
- 3” track option
- Solid shafts
- Perimeter weather seal
- Broken cable devices
- Safety edges
- Safety photo eyes
- Impact glazing 12” x 10”
- Security locks
- Exhaust ports

Technical specification

Unique ref.insulated-wind-load-sectional-doors-429
Product familyCommercial Doors
Product groupWind Load
TypeObject (single object)
Date of publishing2022-12-16
Edition number1

Links

Product urlhttps://www.overheaddoor.com/insulated-wind-load-door-429
Instruction videohttps://www.youtube.com/watch?v=A_cqgBm83u4&t=7s
Technical descriptionhttps://www.overheaddoor.com/Documents/C900-Commercial-Sectional-Windload-Brochure.pdf

Material mainSteel
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryDoors - Industrial
IFC classificationDoor
CSI MasterFormat 2014 Code08 36 13
CSI MasterFormat 2014 TitleSectional Doors
OmniClass Number23-17 11 13 25 13
OmniClass TitleSectional Overhead Metal Doors
