Flat Tank Platin XXL
Flat Tank Platin XXL
Flat Tank Platin XXL
    Otto Graf GmbH

    Flat Tank Platin XXL

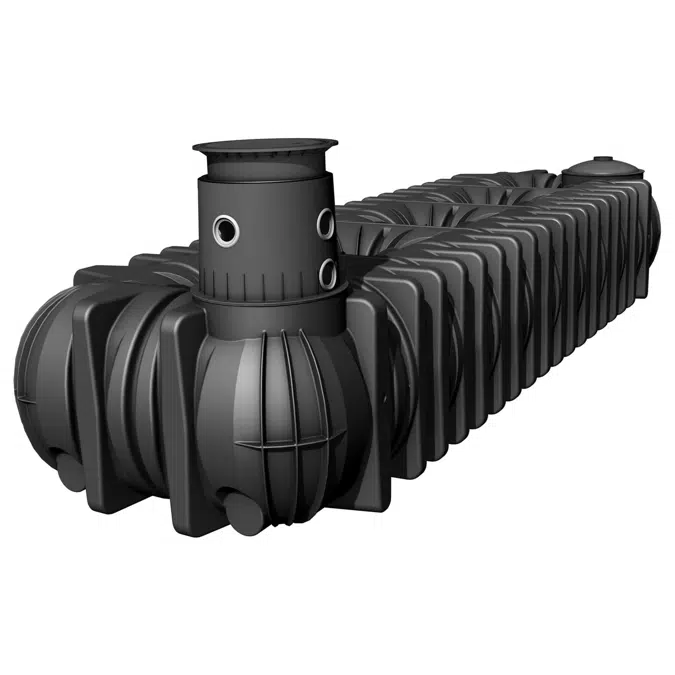

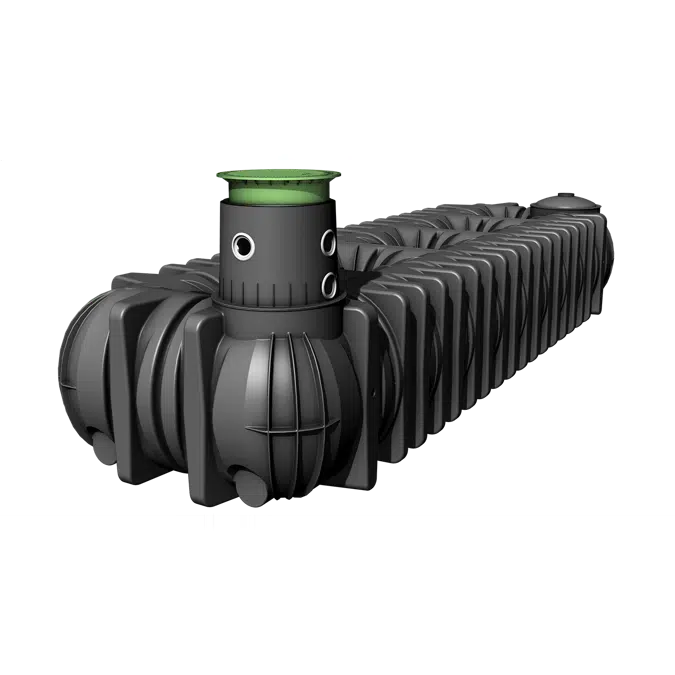

    The Platin XXL flat rainwater tank was specially developed for rainwater harvesting. It is available in sizes from 20.000 to 65.000 l.

    • Rotating tank dome to easily align the connecting lines
    • Available with a second tank dome as an option
    • Suitable for HGV loading up to a vehicle weight of 30 t (66138 lbs)
    • Flexible connection up to DN 300 (12")
    • Connection openings with prefitted DN 150 (6") lip seals
    • Tank height of just 125 cm (4' 1")

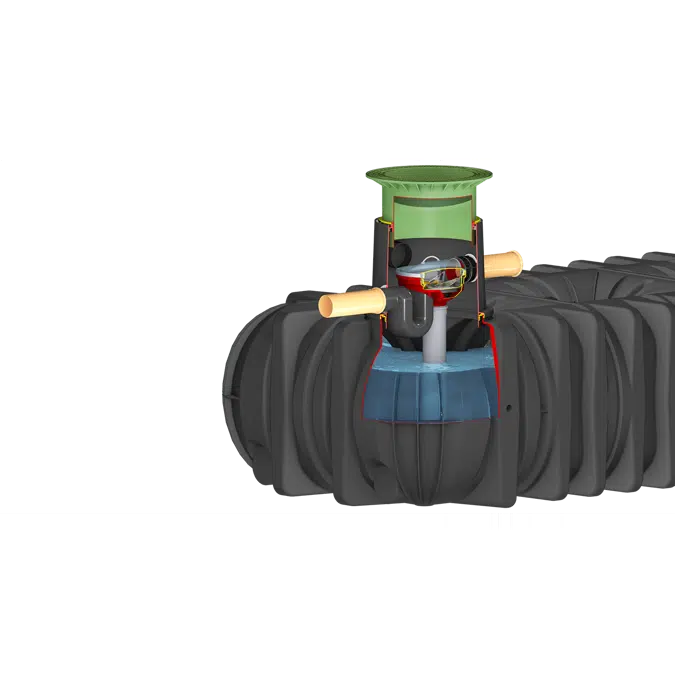

    • High-quality, integrated DN 150 (6") filter technology
    • Dome opening with stainless steel profile for precision fit and secure mounting
    • Connection fitting of up to DN 200 (8"), on tank dome of up to DN 300
    Specification

    • Platin XXL rainwater flat tank

      Platin XXL rainwater flat tank (20,000 to 65,000 litres) for rainwater harvesting.

      Truck passable up to SLW 30 – with load distribution plate to be provided on site and corresponding cover.

      Made of high-quality polyethylene (PE); 100% recyclable.

      Numerous connection options DN 100/150/200. Larger connection pipes up to DN 300 on request.

      Dome opening with rotated stainless steel ring - patented - for extreme stability as well as highest fitting

      accuracy and assembly safety.

      Large entrance dome (360° rotatable) according to DIN 1989.

      Access opening Ø 800/650 mm, H = 610 mm. Optional production with second tank dome possible.

      Sealed up to the top edge of the terrain in connection with telescopic dome shaft and profile seal.

      Tank casing with round grain gravel (max. grain size 8/16). Note the details in our instructions.

      Up to 40,000 litres volume can be transported without special transport.

      Fabrikat: GRAF Platin XXL rainwater flat tank

      Volume
      [l]      		   Length [mm]   Width [mm]   Height [mm]   Weight [kg]
      20000   9405   2250   1910   890
      25000   11580   2250   1910   1140
      30000   14265   2250   1910   1355
      35000   16510   2250   1910   1570
      40000   18430   2250   1910   1750
      45000   21030   2250   1910   2000
      50000   22935   2250   1910   2180
      55000   25195   2250   1910   2395
      60000   27795   2250   1910   2645
      65000   29700   2250   1910   2825
