    Flat Tank Platin XL

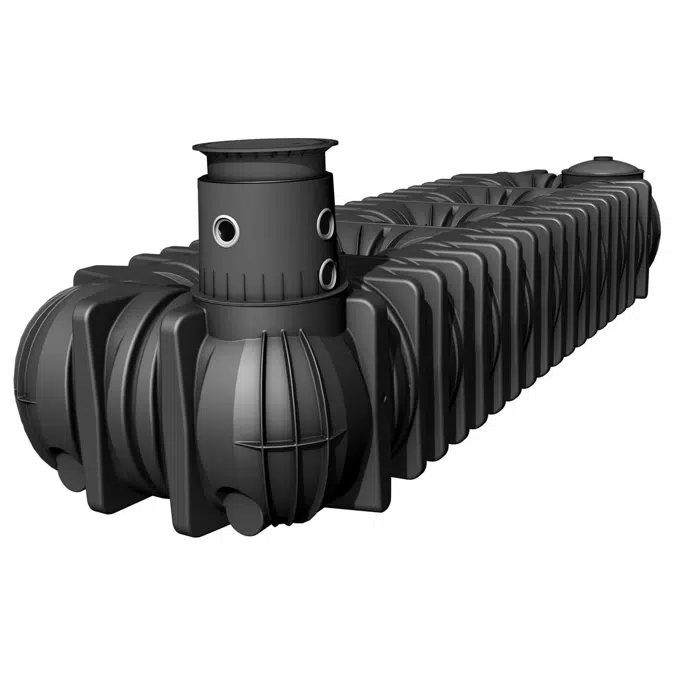

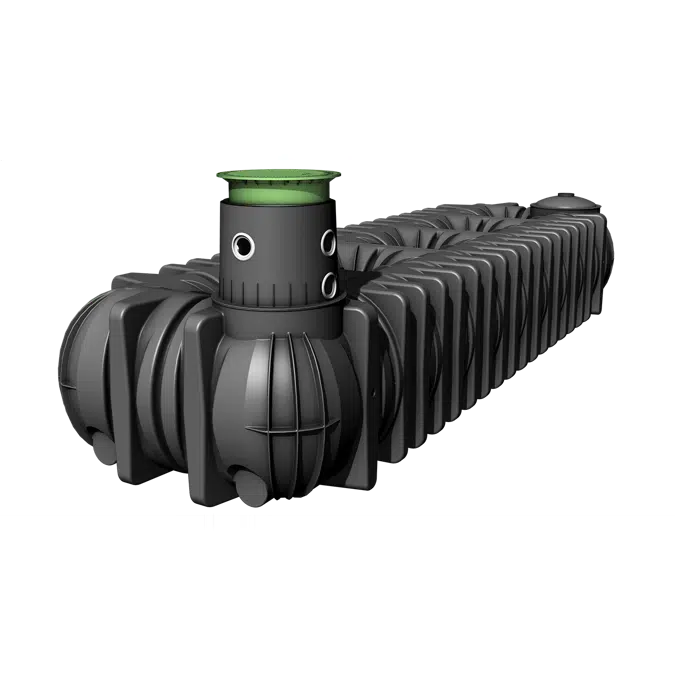

    The Platin XL flat rainwater tank was specially developed for rainwater harvesting. It is available in sizes 10,000 and 15,000 l.

    • Rotating tank dome to easily align the connecting lines
    • Available with a second tank dome as an option
    • Suitable for HGV loading up to a vehicle weight of 30 t (66138 lbs)
    • Flexible connection up to DN 300 (12")
    • Connection openings with prefitted DN 150 (6") lip seals
    • Tank height of just 125 cm (4' 1")

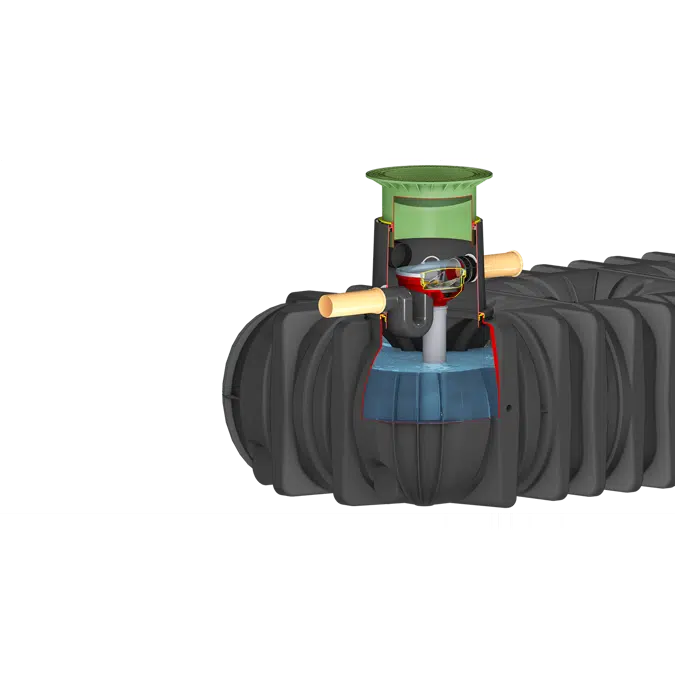

    • High-quality, integrated DN 150 (6") filter technology
    • Dome opening with stainless steel profile for precision fit and secure mounting
    • Connection fitting of up to DN 200 (8"), on tank dome of up to DN 300
    Specification

    • Platin XL rainwater flat tank

      Platin XL rainwater flat tank (10,000 and 15,000 litres) for rainwater harvesting.
      Seamless made of high-quality polyethylene (PE-LLD) - 100 % recyclable - made of one piece.

      Truck passable up to SLW 30 – with load distribution plate to be provided on site and corresponding
      cover.

      Numerous connection options DN 100/150/200. Larger connection pipes up to DN 300 on request.

      Dome opening with rotated stainless steel ring - patented - for extreme stability as well as highest fitting
      accuracy and assembly safety.
      Large entrance dome (360° rotatable) according to DIN 1989.
      Access opening Ø 800/650 mm, H = 610 mm. Optional production with second tank dome possible.
      Sealed up to the top edge of the terrain in connection with telescopic dome shaft and profile seal.

      Tank casing with round grain gravel (max. grain size 8/16). Note the details in our instructions.

      Fabricate: GRAF Platin XL rainwater flat tank

      Volume [l]   Length [mm]   Width [mm]   Height [mm]   Weight [kg]
      10000   4900   2250   1910   460
      15000   7500   2250   1910   710
    Technical specification
    • Unique ref.Flat-Tank-Platin-XL
    • TypeObject (single object)
    • Date of publishing2026-03-19
    • Edition number1
    Links
    Related
    • Designed inGermany
    • Manufactured inGermany
    Classification
    • BIMobject CategoryEngineering & Infrastructure - Water
