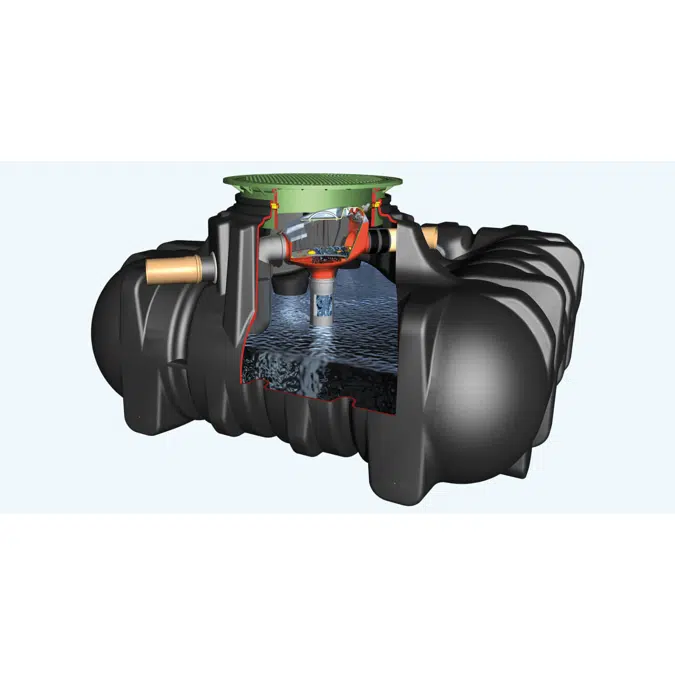

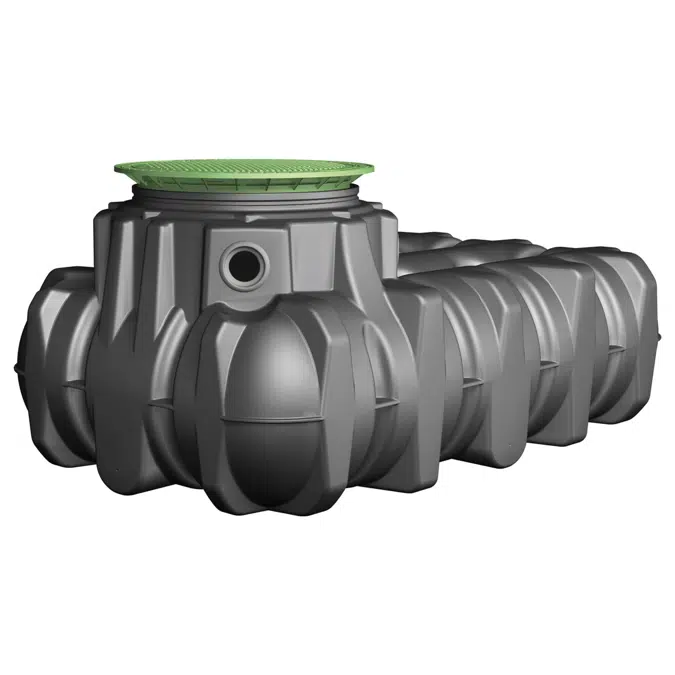

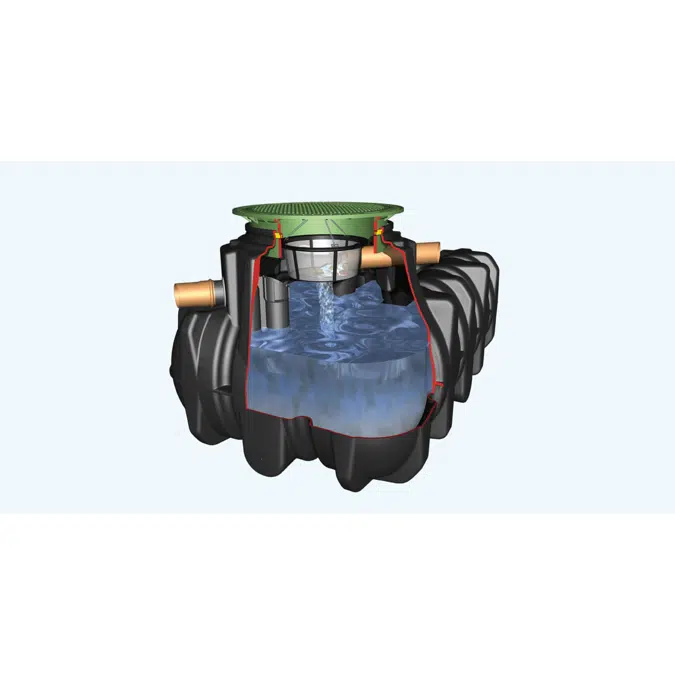

Platin rainwater flat tank
Platin rainwater flat tank, suitable for vehicle loading, made from the high-quality polyethylene (PE)
smoothly in one piece, 100 % recyclable. 8 connection possibilities DN 100 (4” pipe) – 4 prepared with lip
seals DN 100 (4” pipe). Large dome shaft according to DIN 1989. Access Ø 900/650 mm (35.4”/25.6”),
height = 315 mm (12.4”). Sealed up to the top edge of ground using a telescopic dome shaft and profile
seal. Certified of stability and watertightness according to DIN EN 12566-3.
Volume: 1500 - 7500 Liter (US gal.)
| Volume [l] | Length [mm] | Width [mm] | Height [mm] | Weight [kg] |
|---|
| 1500 | 2100 | 1250 | 1015 | 82 |
| 3000 | 2450 | 2100 | 1050 | 180 |
| 5000 | 2890 | 2300 | 1315 | 250 |
| 7500 | 3600 | 2250 | 1565 | 380 |
