EcoBloc maxx

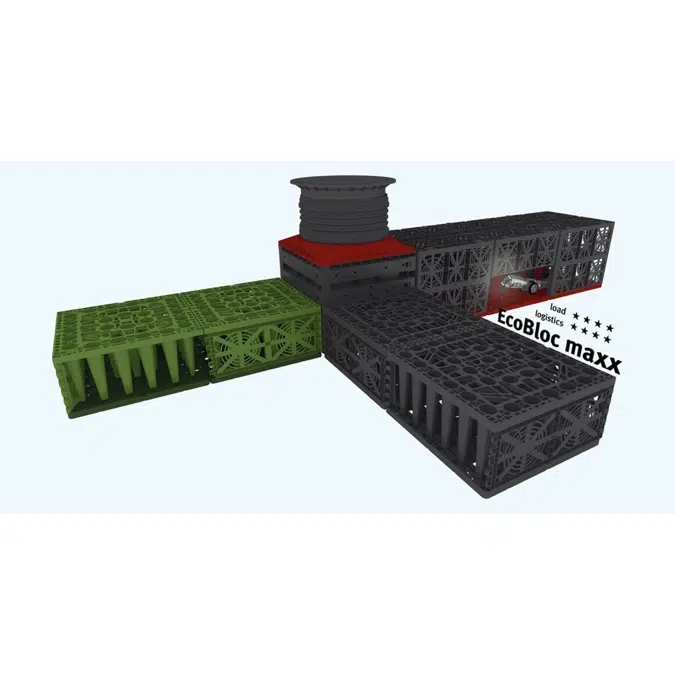

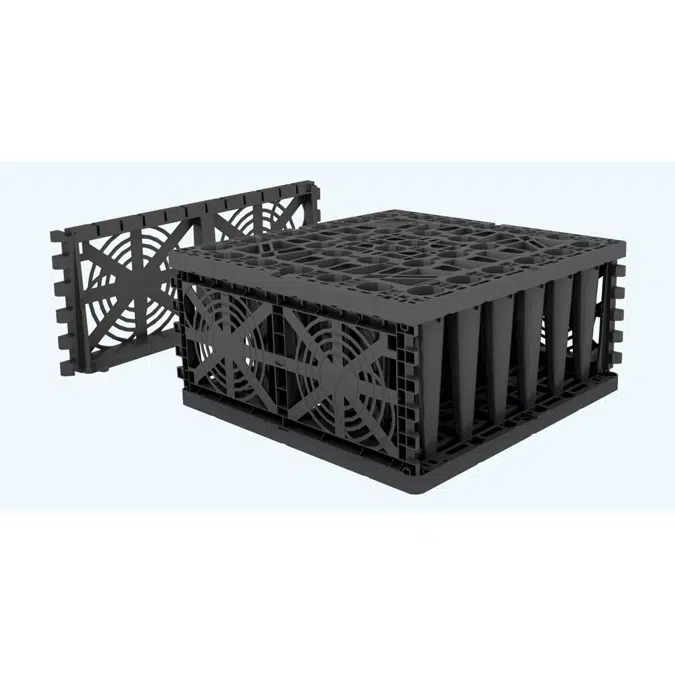

EcoBloc maxx infiltration bloc
Infiltration bloc for storage and/or infiltration of rainwater and for positioning on EcoBloc maxx base plates
– see separate item – or for creating multiple layers on other EcoBloc maxx infiltration blocs.
Inspection and cleaning is possible by combining with EcoBloc Inspect flex infiltration blocs and the
Vario 800 shaft system.
The open structure ensures a three-dimensional flow of water through all system components.
Infiltration blocs are laid to give sufficient coverage by linking with EcoBloc connectors in a horizontal
direction – see separate item.
Multiple layers of infiltration blocs can be laid, no connectors needed for the vertical connection.
Long-term load-bearing capacity up to heavy-duty 60 tonne lorry verified.
Max. installation depth up to 5 m.
Technical data:
Dimensions (LxWxH): 800 x 800 x 350 mm
Weight: approx. 9 kg
Material: Polypropylene PP (100 % recyclable)
Colour: grey
Volume: 225 litres (217 litres net)
Storage coefficient: 96 %
Note: Installation and laying should be carried out following the manufacturer's instructions.
Product: GRAF EcoBloc maxx or equivalent

Accessories

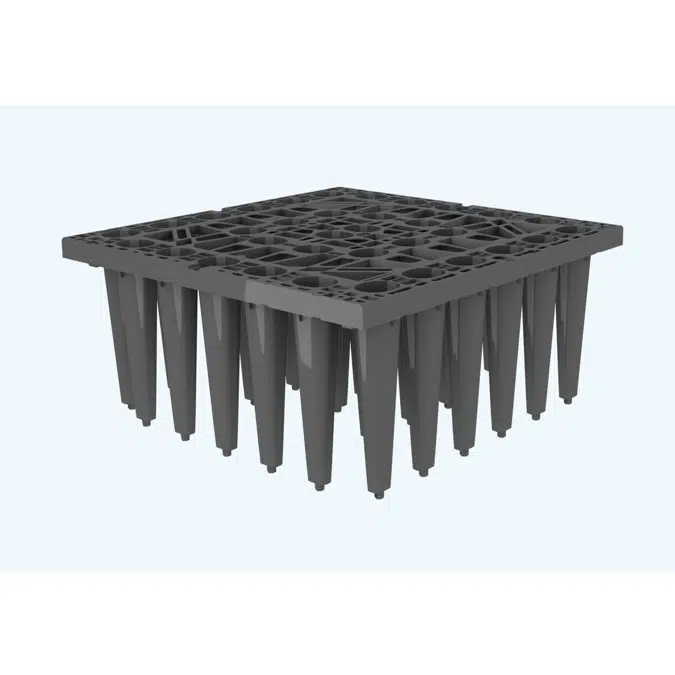

EcoBloc maxx base plate
EcoBloc maxx base plate as the base layer unit for creating an EcoBloc maxx infiltration or storage tank
Technical data:
Dimensions (LxWxH): 800 x 800 x 40 mm
Weight: approx. 4 kg
Material: Polypropylene PP (100 % recyclable)
Colour: grey
Volume: 25 litres (20 litres net)
Note: Each EcoBloc maxx base plate should be laid on a geotextile or membrane material – see separate item
– which in turn is laid on a blinding surface which has been rolled flat – again see separate item. Installation and laying should be carried out following the manufacturer's instructions.
Product: GRAF EcoBloc maxx base plate or equivalent

EcoBloc maxx end plate

Side connection plates to end each row and create side panels for GRAF EcoBloc maxx infiltration blocs.
Technical data:
Set consists of two end plates
Dimensions (LxWxH): 800 x 315 x 80 mm
Material: Polypropylene PP (100 % recyclable)
Colour: grey
Each open end/side of the EcoBloc maxx system is closed with an end plate.
Connections: 2 x DN 250/200/150/100
Additional DN 100 connector for complete ventilation
Additional DN 150 connector for complete drainage
No tools needed for installation
Product: GRAF EcoBloc maxx end plate or equivalent

EcoBloc connectors
Connectors for joining multiple components of the EcoBloc family, where GRAF EcoBloc system components are laid to provide coverage over any surface area. One connector is required per contact surface
between two connecting blocs (side by side and end by end) on every vertical layer of the system components.
Technical data:
Dimensions (LxWxH): 68 x 26 x 38 mm
Material: Polypropylene PP (100 % recyclable)
Colour: grey
Product: GRAF EcoBloc connectors or equivalent

GRAF-Tex geotextile
Graf-Tex geotextile (8 ounce, non-woven geo-textile fabric), 100 % polypropylene filter membrane, mechanically needle-punched to form continuous filament. Rot-proof material between soil and infiltration
system prevents infiltration layers from silting up. The Graf-Tex geotextile ensures long lifetime, consistent infiltration and high permeability.
Technical data:
Opening width: 100 µm
Water permeability coefficient kv (s = 20 kPa): 1.0 x 10-3 m/s
Tensile strength (lengthwise / crosswise): 15 kN/m / 15 kN/m
Punch push-through force (x-s): 2.0 kN
Weight: 200 g/m²
Robustness class: 3
Roll material: Roll width 5 m (196.9”)
Product: GRAF-Tex geotextile

Deaeration end DN 100 (4” pipe)
Deaeration end DN 100 (4” pipe) should always be installed for attenuation/infiltration systems in the
event of heavy inflow of rain/surface water or undersized house venting installation.
Technical data:
DN 100 (4” pipe)
Colour: Black
Rodent guard
Can be extended with standard DN 100 (4” pipe)
Product: GRAF deaeration end DN 100 (4” pipe)

Deaeration cover DN 150/200 (6”/8”)
Deaeration cover DN 150/200 (6”/8”) should always be installed for attenuation/infiltration systems in the
event of heavy inflow of rain/surface water or undersized house venting installation.
Technical data:
DN 150/200 (6“/8“)
Colour: Black
Can be extended with standard DN 150/200 pipes (6”/8”)
Product: GRAF Deaeration cover DN 150/200 (6”/8”)

Additional items without material / service from Otto Graf GmbH
Excavation for EcoBloc system
8–10 cm (3.15”–3.94”) thick layer of gravel 8mm/16mm (0.03”/0.06”).
Compressed with lightweight machine as horizontal and level plane to lay geotextile and EcoBloc Inspect
elements – see separate items –.

Backfill for EcoBloc system
Gravel of size 20mm/40mm (0.79”/1.57”) for side and vertical filling of EcoBloc Inspect System.
If EcoBloc Inspect are to be filled in layers, observe maximum fill height of around 30 cm (0.98’) and
compress in layers in accordance with manufacturer's instructions.
