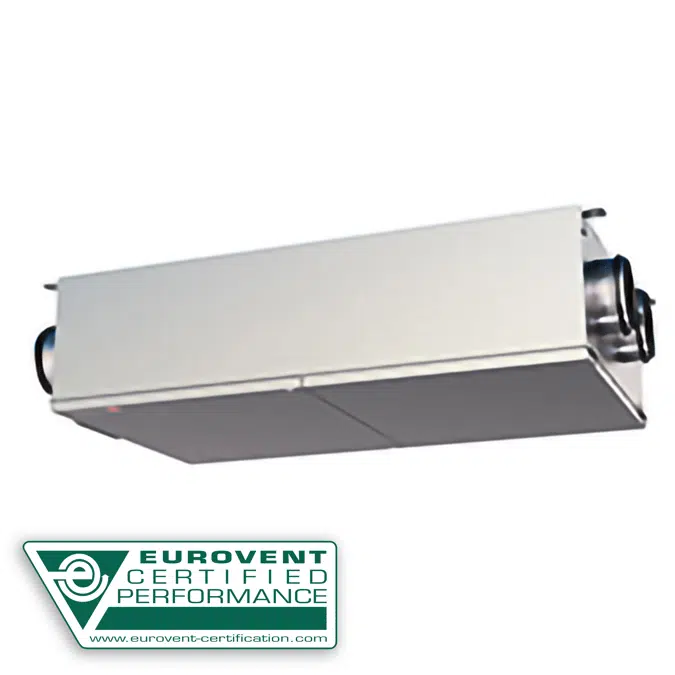

Heat Recovery Ventilator HERU 50 LP EC-y1 AL
Östberg

Heat Recovery Ventilator HERU 50 LP EC-y1 AL

  • Energy recovery unit with low profile and side connections. Ideal for mounting in small spaces such in the ceiling.
  • Designed for supply and exhaust air ventilation with energy recovery.
  • Suitable for installation in homes, offices and other premises where there are stringent requirements on the indoor environment.
  • High temperature efficiency 82%, low energy consumption (SFP), low sound level, high operating reliability and provides clean indoor air.
  • Unique design minimizes all thermal bridges.
  • For easy handling, the unit is remote controlled using the wireless control unit for operation and monitoring.
  • Comes prepared for Modbus communication via RS485 (accessory needed).
  • Airflow is generated by two silent radial fans with EC motors and impellers with forward curved blades.
  • The fans are connected with quick connectors and are very easy to remove for cleaning.
  • A regenerative, non-hygroscopic, aluminum rotating heat exchanger located in the center of the unit. The heat exchanger can also be removed for cleaning.
  • Comes with panel filter ISO ePM1 50% as standard, for both exhaust and supply air. The filter is very easy to change.
  • Integrated controls for heating/cooling.
  • The unit is constructed of double-layer galvanized steel sheet with insulation in between.
  • For placement in warm areas.
  • Available in either right-hand or left-hand design.
Specification
  • ParameterValueUnit
    (a) ManufacturerÖstberg-
    (b) Model codeHERU 50 LP EC-
    (c) SEC value-38.86kWh/m2
    SEC classA-
    (d) Declared typeRVU / BVU-
    (e) Type of driveVariable speed drive-
    (f) Type of heat recoveryRegenerative-
    (g) Thermal efficiency82%
    (h) Max. flow rate (@100Pa)183m3/h
    (i) Power at max. flow rate78W
    (j) Sound power level44dB LwA
    (k) Reference flow rate0.041m3/s
    (l) Reference pressure difference50Pa
    (m) SPI0.45W/(m3/h)
    (n) Type of control/ctrl factorLocal demand control/0.65-
    (o) External (and internal) leakage rate4.22 (N/A)%
    (p) Mixing rateN/A-
    (q) Visual filter warningIn remote control-
    (r) Instruction supply/exhaust grillesSee manual-
    (s) Disassembly instructionswww.ostberg.com-
    (t) Airflow sensitivityN/A-
    (u) Air tightnessN/Am/s
    (v) AEC284kWh
    (w) AHS average4562kWh
    AHS warmer2063kWh
    AHS colder8924kWh
Technical specification
  • Unique ref.heru-50-lp-ec-y1-al
  • Product familyAir handling unit with energy recovery
  • Product groupTop duct connections
  • TypeObject (single object)
  • Date of publishing2024-02-13
  • Edition number1
Links
Related
  • Material mainSheet metal
  • Designed inSweden
  • Manufactured inSweden
Classification
  • BIMobject CategoryHVAC - Heat Recovery
  • IFC classificationAir to Air Heat Recover
  • ETIM CodeEC011286
  • ETIM NameHeat recovery unit
