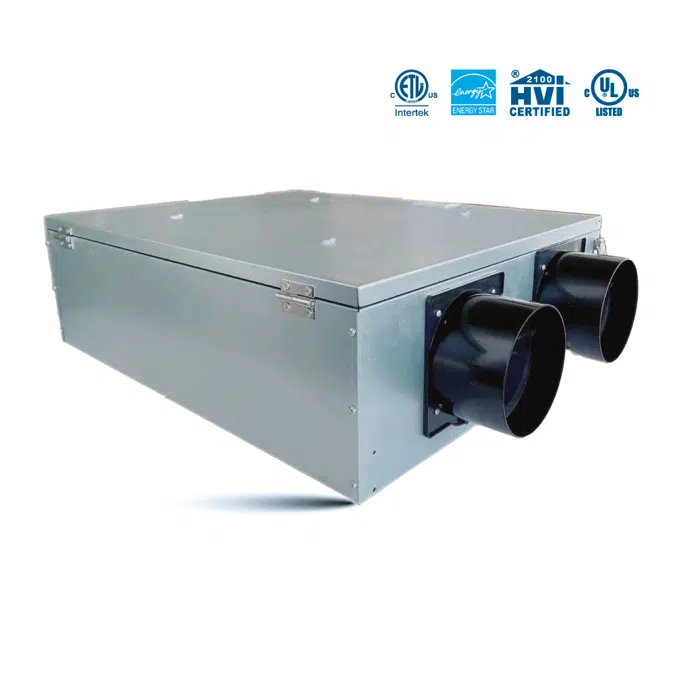

Cold Climate ERV (ODD-ERV100EC)

Energy Recovery Ventilator designed to enhance indoor comfort, reduce energy costs, and promote a healthier, more efficient living environment.

HIGHLIGHTS:

• Enhanced Indoor Air Quality: This air exchange system improves indoor air quality by retaining existing heat and optimizing interior moisture levels.
• Mirrored (ODD-ERV100EC-M): Mirrored unit available for identical but mirrored suites.
• Built-in Humidity Control: Includes a humidity sensor to automatically maintain optimal indoor moisture levels for comfort.
• Adjustable Airflow: Supply and exhaust airflow can be manually adjusted within a range of 40 to 100 CFM.
• Advanced Energy Recovery Core: Features a counterflow graphene core for superior energy transfer and thermal efficiency.
• Efficient EC Motors: Powered by two enclosed EC motors designed for quiet, continuous, and reliable operation.
• Simplified Installation: Hard-wired option available. Mounting brackets included for easy setup for ceiling or wall mounting.
• Low-Temperature Protection: Designed to maintain performance and prevent freezing in extreme conditions.
• Filtration: Utilizes MERV4 washable and replaceable filters with 20 PPI for improved air purity. MERV 8 & 13 optional.
• Sound Level: 1.5 sones @ 100 CFM*
• Safety Feature: Equipped with a door switch that cuts power to the motors when the access door is opened.
• Customizable Run Time: Timer knob allows run time adjustments from 5 to 60 minutes per hour, providing flexibility to suit your needs.
• Airflow Testing: Features built-in test ports with plugs in each area for precise airflow and pressure measurement during startup and balancing.
• Certified Performance: Compliant with CSA Standard C439-18 for trusted energy recovery performance.

MODEL
ODD-ERV100EC and ODD-ERV100EC-M
