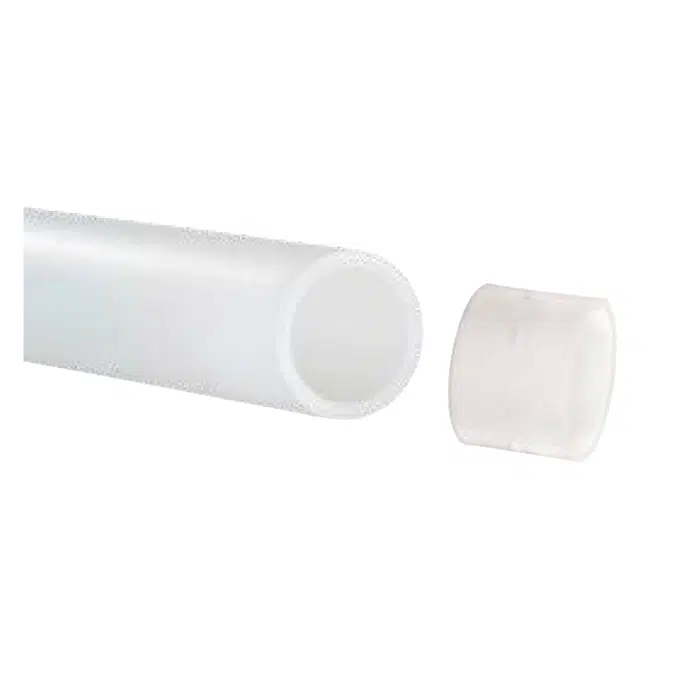

Pipe - Socket Fusion Sample Spec Schedule 40

Pipe - Socket Fusion Sample Spec Schedule 40

Recommended specification for Orion Blueline socket fusion corrosive waste drainage system. The corrosive waste drainage system, conforming to ASTM F1412, will be Orion's Blueline flame retardant pipe and fittings. Pipe and fittings will be joined using the Orion socket fusion system conforming to ASTM D2657. The pipe is supplied in 10 ft. lengths. The fittings will meet or exceed Schedule 40 dimensions. The polypropylene material will conform to ASTM D4101.

-----------------------

Recommended specification for Orion PVDF socket fusion corrosive waste drainage system. The corrosive waste drainage system, conforming to ASTM F1673, will be Orion's PVDF (Polyvinylidene Fluoride) pipe and fittings. The pipe and fittings will be joined using the Orion socket fusion system conforming to ASTM 2657. The pipe is supplied in 10 ft. lengths. The fittings will meet or exceed Schedule 40 dimensions. The PVDF material will conform to ASTM D3222. Pipe will be marked with UL Classified to indicate compliance with UL723 (ASTM E84).

Technical specification

Unique ref.pipe-socket-fusion-sample-spec-s40-copy
Product familyDrainage Solutions
Product groupChemical Waste Pipes and Fittings
TypeObject (single object)
Date of publishing2026-03-20
Edition number1

Links

Technical descriptionhttps://www.watts.ca/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/633500-source/639003780120000000/or-sf-sample-spec.pdf?qh=socket%20fusion

Related

Material mainPolypropylene
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Pipes
IFC classificationPipe Fitting
Uniclass 2015 CodeAc_10_40_63
Uniclass 2015 DescriptionPipe fitting
OmniClass Number23-27 43 00
OmniClass TitlePipe Fittings
CSI UniFormat II CodeC1030
CSI UniFormat II TitleFittings

Region availability

North America
United States
