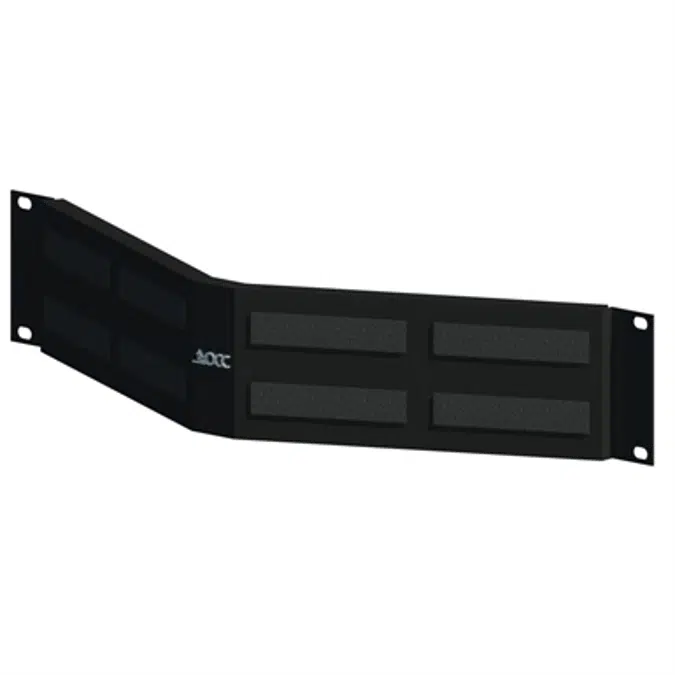

Rack Mount Angled Patch Panel, 568A/B wired, 24 port, 1U, 48 port, 2U

Optical Cable Corporation

Rack Mount Angled Patch Panel, 568A/B wired, 24 port, 1U, 48 port, 2U

OCC's Angled Patch Panels offer a high density solution for a variety of application protocols. The Angled Patch Panel allows patch cords to be easily routed from the front of the panel directly into vertical cable management. The versatility of this panel eliminates the need for horizontal cable management while maintaining proper bend radius requirements. By removing the need for horizontal cable managers, additional rack space is freed up for supplemental patch panels and active equipment.

Applications

Voice
4 / 16 Mbps Token Ring
100 Mbps TP-PMD
155 / 622 Mbps ATM
10BASE-T Ethernet
100BASE-TX Fast Ethernet
1000BASE-T Gigabit Ethernet

Features

Comfortably exceeds EIA/TIA 568-B.2 Category 5e standards
ISO/IEC11801 compliant
Patented PC Board Technology
Constructed of extruded aircraft grade aluminum for durability
Rigid design provides solid frame for hi-impact punching tools
110 Style punch down for easy terminations
Universal TIA 568A/B wiring configuration
IDC's withstand 200 wire insertions
Write on label fields
Icon compatible - 12 colors
Removable cable strain-relief bar attaches directly to Panel
All components made in U.S.

Technical specification

Unique ref.occ-acc
Product familyComputer Network Equipment
Product groupPatch Panel
TypeObject (single object)
Date of publishing2017-01-20
Edition number1

Links

Product urlhttp://occfiber.com/main/index.php?m=1&p=2&s=Y&l=en&it=20&i=51

Classification

BIMobject CategoryElectronics - Networking

Region availability

North America
United States
