AZ Channel Tray Cable Systems
AZ Channel Tray Cable Systems
    OBO Bettermann

    AZ Channel Tray Cable Systems





    • Perfect for automation and motor control applications. Large openings make exit and entry of cables quick and easy.

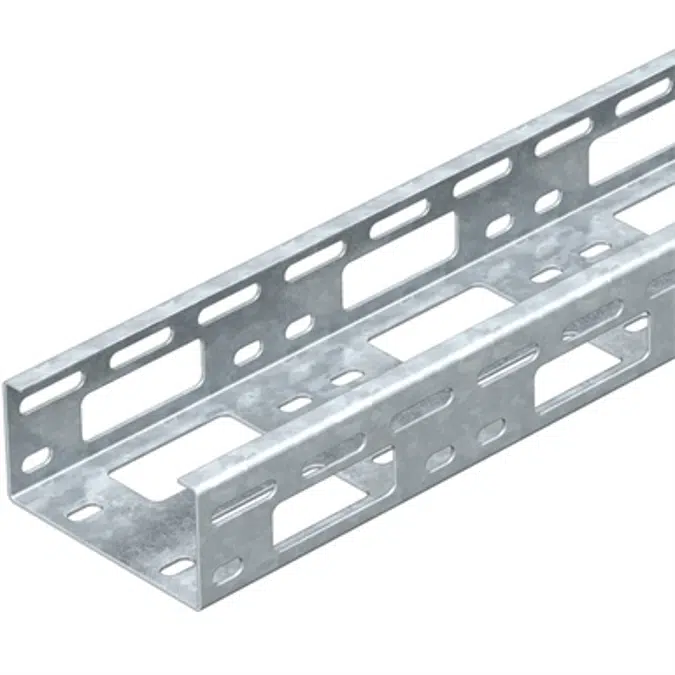

    AZ Channel

    OBO Bettermann’s AZ Channel tray is ideal for automation and assembly lines. Large cut outs allow for cables to be easily routed in and out of the tray. Newly extended product range now includes widths up to 300mm.

    FEATURES

    • Cut outs allow for cables to be easily routed in and out of the tray
    • Available plastic grommets snap into cut outs to protect cables
    • Covers and accessories available
    • UL Listed



    PRODUCT SPECIFICATIONS

    • 1.5mm [16 gauge] plate thickness
    • 50mm [2”] side height
    • 50mm-300mm [2-12”] widths

    Gauge and inch measurements are approximations only.

    Technical specification
    • Unique ref.modular-az
    • Product familyCable Trays and Horizontal Racks
    • Product groupModular Systems
    • TypeObject (single object)
    • Date of publishing2014-01-29
    • Edition number1
    Links
    Classification
    • BIMobject CategoryElectrical - Distribution

    Region availability

    North America
