Ready-Link Rack System

Ready-Link Rack System

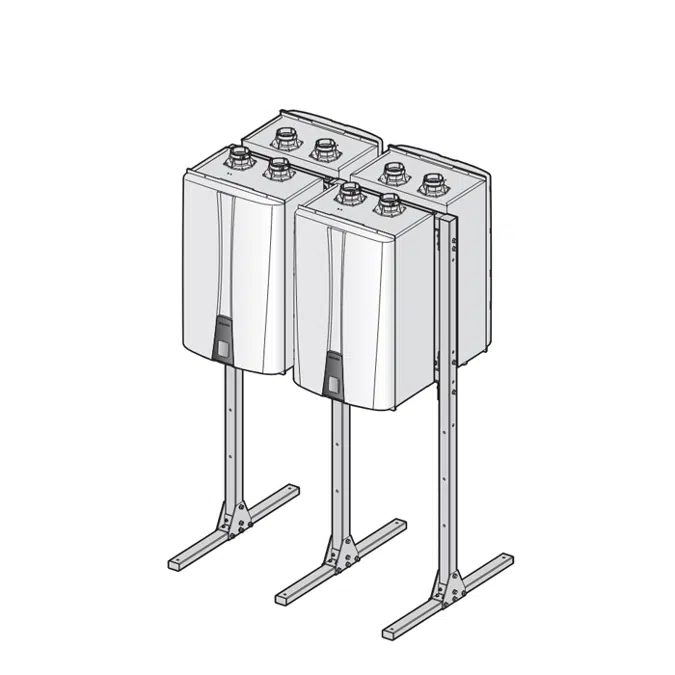

Navien Ready‑Link Rack V3 System, Base and Add-on Racks.

This free standing rack system is modularly designed for infield assembly and available through normal distribution channels, shortening both delivery and installation time.

Designed to hold water heater or boiler units as well as common water and gas piping.

Approved for indoor or outdoor installations.

Specification

- This accessory is compatible with the following Navien tankless water heater, combi-boiler and boiler models:
  - NPE-A/S, NPEA2/S2
  - NCB-E/NCB-H
  - NHB/NHB-H
  - NFB/NFB-H
  - NFC/NFC-H
  - NPN
  - NHW700A/S
- Recommended for systems that are located in tight spacing or in areas without enough available wall space.
- Designed to hold water heater and boiler units as well as common water and gas piping.
- Overall Dimensions will vary by number and type of units being mounted and configuration.
  - Base Rack - 22" W x 65.5" H x 32" D
  - Add-on Rack - 20"W x 65.5"H x 32"D
- Weight: 48lbs (21.8kg) per Base rack, 24lbs (10.9kg) per Add-on rack.
- Navien Part Number(s):
  - GFFM-KDIZUS-005 (Base for single or 2 units back-to-back)
  - GFFM-KDIZUS-006 (Add-on extension kit for 2+ units in-line or 3+ units back-to-back)
- Warranty 1 Year

Technical specification

Unique ref.Ready-Link-Rack-System
Product familyHVAC Water Heater
Product groupRacks and Manifold Accessories
TypeObject (single object)
Date of publishing2025-02-04
Edition number1

Links

Product urlhttps://www.navieninc.com/accessories/readylink
Installation instructionshttps://www.navieninc.com/downloads/ready-link-rack-installation-guide-en

Related

Material mainPowder coated steel
Designed inSouth Korea
Manufactured inSouth Korea
