NFB‑C Commercial Condensing High-Efficiency Boiler
Navien

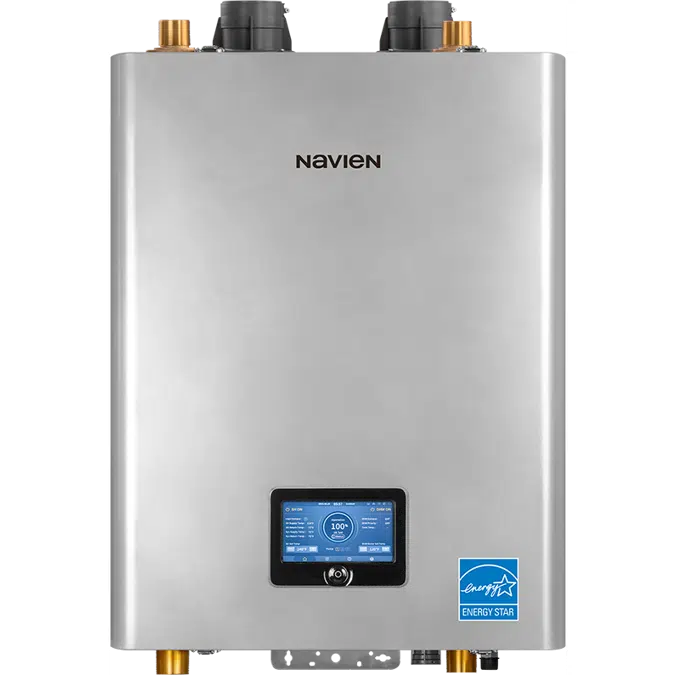

NFB‑C Commercial Condensing High-Efficiency Boiler

Navien’s high efficiency fire tube condensing technology make NFB-C hard to beat and the easy choice for today’s commercial boiler applications

Navien does it all from start to finish...making NFB-C the total package

  • Robotic and automated manufacturing technology for unmatched quality control.
  • In-house designed and built components, for system matched compatibility...unlike most competitors who use the same out-sourced parts to build their boilers.
  • Lower installation costs with our innovative engineered compact wall hung design, intuitive controls, top or bottom piping connections and flexible venting options.
  • Lower operating costs with the industry’s leading thermal efficiency at TE 97.5%...
    Energy Star approved
  • Cascading and common venting capable.
  • Best-in-class training and technical support.
  • One of the industry’s best warranties.
  • Top and bottom piping connections for either floor or wall installations.
  • BMS connectivity (Modbus, BACnet and LonWorks).
  • High altitude installations up to 10,100 ft.
Specification
  • NFB-C Models:

    • NFB-301C
    • NFB-399C

    Model NFB-301C Specs

    • Heating Capacity 20,000-301,000 BTU/H
    • Thermal Efficiency (or UEF) 0.98
    • Installation Type Indoor wall-hung
    • Width 25.1"
    • Height 32.8"
    • Depth 22.3"
    • Weight 243 lb.
    • Water Pressure Min 12 psi
    • Water Pressure Max 160 psi
    • Cold Water Inlet Connection Size 1 1/4"
    • Gas Supply Connection Type NPT
    • Gas Supply Connection Size 3/4"
    • Voltage 120 V
    • Venting Type Forced draft direct vent and non-direct vent (single pipe)


    Model NFB-399C Specs

    • Heating Capacity 26,000-399,000 BTU/H
    • Thermal Efficiency (or UEF) 0.98
    • Installation Type Indoor wall-hung
    • Width 25.1"
    • Height 32.8"
    • Depth 22.3"
    • Weight 278 lb.
    • Water Pressure Min 12 psi
    • Water Pressure Max 160 psi
    • Cold Water Inlet Connection Size 1 1/2"
    • Gas Supply Connection Type NPT
    • Gas Supply Connection Size 3/4"
    • Voltage 120 V
    • Venting Type Forced draft direct vent and non-direct vent (single pipe)
Technical specification
  • Unique ref.NFB-399C
  • Product familyBoilers, Commercial
  • Product groupCommercial Condensing High‑Efficiency Boilers
  • TypeObject (single object)
  • Date of publishing2024-05-17
  • Edition number1
Related
  • Designed inSouth Korea
  • Manufactured inSouth Korea
Classification
  • BIMobject CategoryHVAC - Boilers
