Class 125 Suction Diffusers - 1011

Mueller Steam Specialty

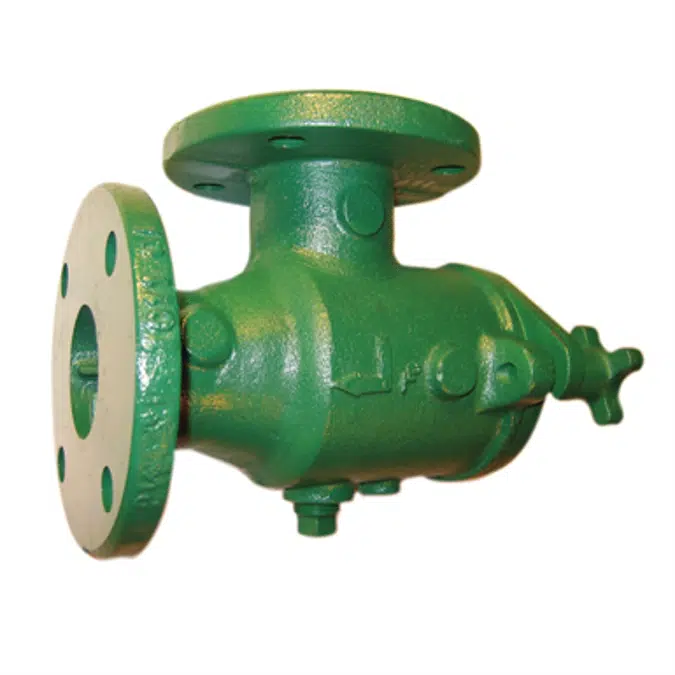

Class 125 Suction Diffusers - 1011

Series 1011 Class 125 Suction Diffusers provide economical and compact pump protection by straining foreign particles and providing proper flow conditions to the pump. This series mounts directly to the suction side of a pump in either the horizontal or vertical position.

Specification

Features
- Straightening vanes on outlet side reduces turbulence into pump, minimizing stress and erosion within pump
- Reduces installation cost and joint leak paths because one unit acts as elbow, strainer, and entry pipe to the suction side of the pump
- Knobs open quickly for easier maintenance access
- O-ring seal eliminates need to clean sealing area and install a new flat gasket

Technical specification

Unique ref.1011-Suction-Diffuser
Product familySpecialty Products
Product groupSuction Diffusers
TypeObject (single object)
Date of publishing2020-02-10
Edition number1

Links

Product urlhttps://www.watts.com/products/plumbing-flow-control-solutions/plumbing-specialties/suction-diffusers/1011
Installation instructionshttps://www.watts.com/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/45697-source/1915975
Technical descriptionhttps://www.watts.com/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/45780-source/ES-MS-1011_1012

Related

Material mainCast iron
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Other Plumbing
IFC classificationValve
UNSPSC nameSwing check valves
UNSPSC code40141634
Uniclass 2015 CodePr_65_54_40_13
Uniclass 2015 DescriptionCheck valves
CSI MasterFormat 2014 Code40 05 65.26
CSI MasterFormat 2014 TitleTilting Disc Check Valves
OmniClass Number23-27 31 19
OmniClass TitleCheck Valves
CSI UniFormat II CodeD20
CSI UniFormat II TitlePLUMBING

Region availability

North America
Canada
Mexico
United States
