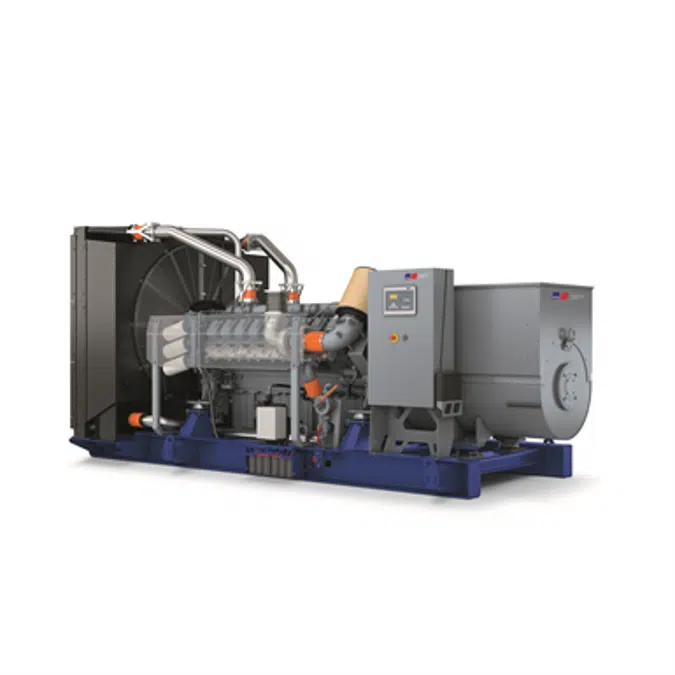

Diesel Generator Set mtu - Series 2000 - 12V • 750-1010 kVA • 50Hz • 380-415V • Prime & Standby Power

mtu gas and diesel generator sets in combination with mtu energy storage products provide reliable solutions for your power generation needs. Featuring low fuel consumption, long service intervals and low emissions backed by more than 60 years of experience, our products are designed to perform. Customers around the world trust us to provide reliable power for a wide range of applications, from healthcare, data centers, airports, manufacturing plants to independent power stations and micro grids. Our product portfolio covers generator sets from 27 up to 11,830 kWe.

Product Highlights:

• Designed and manufactured in facilities certified to standards ISO 9001:2008 and ISO 14001:2004

• Verified product design, quality and performance integrity

• Industry leading average load factor

• Cutting-edge emissions control

• Outstanding fuel economy

• Best-in-class reliability and availability

• Optimized maintenance intervals

• Advanced monitoring & communications

• Load acceptance according ISO 8525-5 class G3

• Accepts Rated Load in One Step Per NFPA 110

• Compliant with industry codes & standards

Specification

System specification:
•Engine: mtu 12V2000G06; fuel consumption or emission optimized
•Generator: 4 pole three-phase synchronousgenerator, Brushless, self-excited, self-regulating, self-ventilated, Digitalvoltage regulator, Anti condensation, heater, Stator winding Y-connected,accessible, neutral (brought out), Protection IP23, Insulation class H,utilization acc. to H, Radio suppression, EN55011, group 1, cl. B, Shortcircuit capability 3xIn for 10 sec, Excitation by AREP + PMI, Mounting of CT´s:3x 2 core CT´s, Winding pitch: 2/3, winding, Voltage setpoint adjustment ± 5%,Meets NEMA MG-1, BS 5000, IEC 60034-1, VDE 0530, DIN EN 12601, AS1359 and ISO8528, equirements.
•Radiator: Unit mounted, mechanical drivenradiator designed for 40°C or 50°C ambient air temperature
•Air Filtration: Single stage air cleaners
•Fuel System: Common rail fuel injection withoptional fuel filter with water separators and opt. Fuel cooler
•Starting System: 24V starter with optionalbatteries, charger and redundant option
•Controls: Generator set control, metering,protection, fault-alarm status indication, event recording
•Sound data: Consult your local mtudistributorfor sound data.
•Emissions data: Consult your local mtudistributorfor emissions data
•Warranty: 2 Year Standard
•Available options: Oversized generator, different controller options, power distribution panel, circuit breaker, fuel filtration systems, starting/charging system, exhaust components and vibration insulation

Technical specification

Unique ref.mtu-12V2000-DS1000-Prime_Standby-Power
Product familyElectrical Generator Sets
Product groupDiesel Generator Sets
TypeObject (single object)
Date of publishing2020-01-20
Edition number1

Links

Product urlhttps://www.mtu-solutions.com/eu/en/applications/power-generation/power-generation-products/diesel-generator-sets.html
Instruction videohttps://www.youtube.com/user/mtuengines

Material mainMetal
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryConstruction - Power Generation & Light
IFC classificationElectric Generator
ETIM CodeEC002823
ETIM NamePower generator
UNSPSC nameDiesel generators
UNSPSC code26111601
Uniclass 2015 CodePr_60_70_65_34
Uniclass 2015 DescriptionGenerator sets
CSI MasterFormat 2014 Code26 32 13.13
CSI MasterFormat 2014 TitleDiesel-Engine-Driven Generator Sets
OmniClass Number23-35 11 15 11
OmniClass TitleDiesel Generator Sets
CSI UniFormat II CodeD5010
CSI UniFormat II TitleElectrical Service and Distribution
