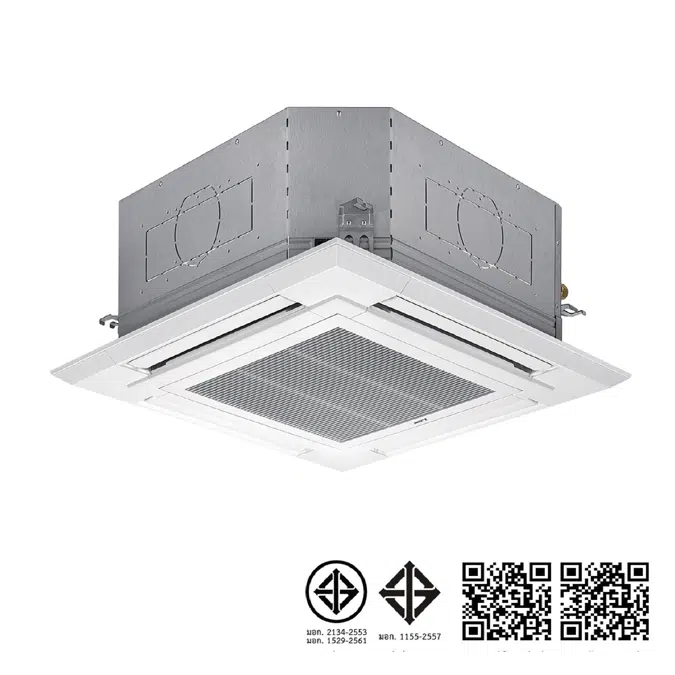

MODEL PLY-SM42EA2 ThreePhase
Cooling capacity (BTU/h) 42,000
SEER (Btu/h/W) 19.86
EGAT level 5 : No
Cooling : Capacity Rated (kW) 12.3(6.1-12.3)
Heating : Capacity Rated (kW)
Power Supply 1ph, 220V, 50Hz
Microprocessor Control: No
Automatic Temperature Control : No
Timer Switch
Remote Control Switch Wireless/Wired
Indoor Fan Speeds 4 Step +1 AUTO
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D) 298 x 840 x 840 (mm.)
Dimensions Outdoor (H x W x D) 981 x 1050 x 330(mm.)
Weight Indoor 27
Weight Outdoor 62
Piping Size : Liquid (mm.in) 9.52(3/8)
Piping Size : Gas (mm.in) 15.88(5/8)
Piping Size : Max.Length / Max.Height (m) 50/30
Refrigerant R32
THIS PRODUCT SPECIFICATION IS FOR USE IN THAILAND ONLY.
FOR TECHNICAL DESIGN SUPPORT, PLEASE CONTACT TEL 0-2763-7000 EXT 5302 (FOR THAI DESIGNERS AND PROJECTS IN THAILAND ONLY).
