MODEL MSY-JY18VF
Cooling capacity (BTU/h) 17,742
SEER (Btu/h/W) 20.5
EGAT level 5
Cooling : Capacity Rated (kW) 5.2 (1.3 - 5.4)
Heating : Capacity Rated (kW) -
Power Supply 220 V. / Single Phese / 50 Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch 24 Hr. ON / OFF Program

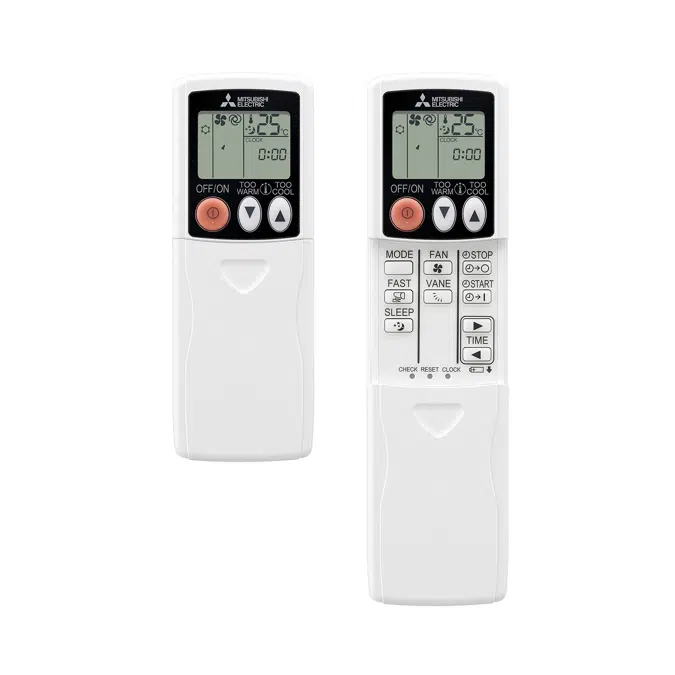

Remote Control Switch Wireless
Indoor Fan Speeds 5+AUTO
Blow Fan Indoor Line Flow Fan
Blow Fan Outdoor Propeller
Dimensions Indoor (H x W x D) 305 x 923 x 250
Dimensions Outdoor (H x W x D) 545 x 780 x 294
Weight Indoor 12.1
Weight Outdoor 27.5
Piping Size : Liquid (mm.in) 6.35 (1/4)
Piping Size : Gas (mm.in) 12.7 (1/2)
Piping Size : Max.Length / Max.Height (m) 20/12
Refrigerant R32
THIS PRODUCT SPECIFICATION IS FOR USE IN THAILAND ONLY.
FOR TECHNICAL DESIGN SUPPORT, PLEASE CONTACT TEL 0-2763-7000 EXT 5302 (FOR THAI DESIGNERS AND PROJECTS IN THAILAND ONLY).
