Mini Split Rail Support

Name: Mini Split Rail Support
Rating: 4.2 (5 reviews)

4.2(5 reviews)

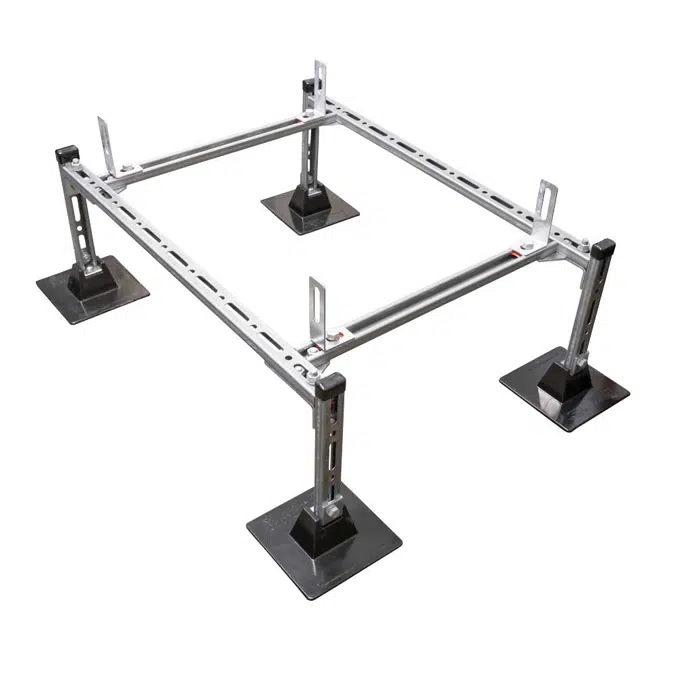

Our Uniflex Mini Split Rail support is an economical option to support mini-splits condensers and heat pumps on the roof or on any surface. It supports a variety of sizes, is easy to install, and is fully adjustable.

Specification

KEY INFORMATION

Designed to support Mini-Split condenser units.
Designed for height, width, and span adjustability for a wide range of Mini-Split Units.
Frame material is 14 gauge Hilti Channel (7/8×1-5/8) with a zinc-magnesium finish for outdoor use.
Base material is polycarbonate with carbon black for UV resistance.
Hardware and brackets are either hot-dip galvanized or electro-galvanized
Support is designed for gravity loading. Additional wind and/or seismic tie downs and engineering provided upon request.
Optimized load of 3.0 PSI to roof is approximately 300LBS. Ultimate load capacity is not tested.

BASE MATERIAL	Polycarbonate
SIZE	Adjustable from 18” wide and 29-1/2” long and smaller
MAX HEIGHT OFF ROOF	6” min to 12” max
MAX LOAD WEIGHT	Optimized load of 3.0 PSI to roof is approximately 300LBS. Ultimate load capacity is not tested.
