MI-QXHUB Heavy Duty Quick Hub Coupling

MI-QXHUB Heavy Duty Quick Hub Coupling

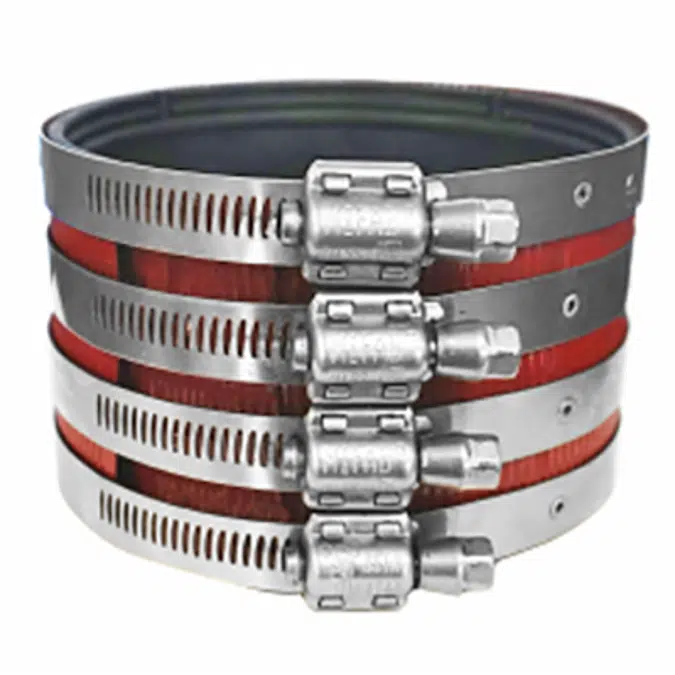

MIFAB® Series MI-QXHUB (specify size) heavy duty shielded no hub couplings are manufactured with gaskets made from neoprene (meets the requirements of ASTM C-564) housed inside a Type 304 stainless steel corrugated shield. Four (2” through 4” size), six (5” through 12” size) Type 304 stainless steel clamps tightened with 3/8” Type 305 stainless steel hex head screws surround the shield to provide the sealing force. MI-QXHUB Series Couplings are tested and certified to the ASTM-C1540-2018 and CSA B602 Standards and listed with I.A.P.M.O. The MI-QXHUB are also tested and certified by Intertek Testing Services to the CAN/ULC S102.2-10 “Smoke Test”. The MI-QXHUB are tested by IAPMO to comply to the FM 1680-1989 Standard (except for markings).

Technical specification

Unique ref.MI-QXHUB
Product familyCouplings
Product groupOther Couplings
TypeObject (single object)
Date of publishing2021-05-15
Edition number1

Links

Product urlhttps://www.mifab.com/products/mi-qxhub-heavy-duty-quick-hub-coupling/
Installation instructionshttps://www.mifab.com/Catalog/Library/MI-QXHUB-SPEC-SHEET.pdf

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Other Plumbing
UNSPSC namePlumbing fixtures
UNSPSC code3018
Uniclass 2015 CodePr_65_52_07_28
Uniclass 2015 DescriptionFlexible couplings between below-ground drainage pipes
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
United States
