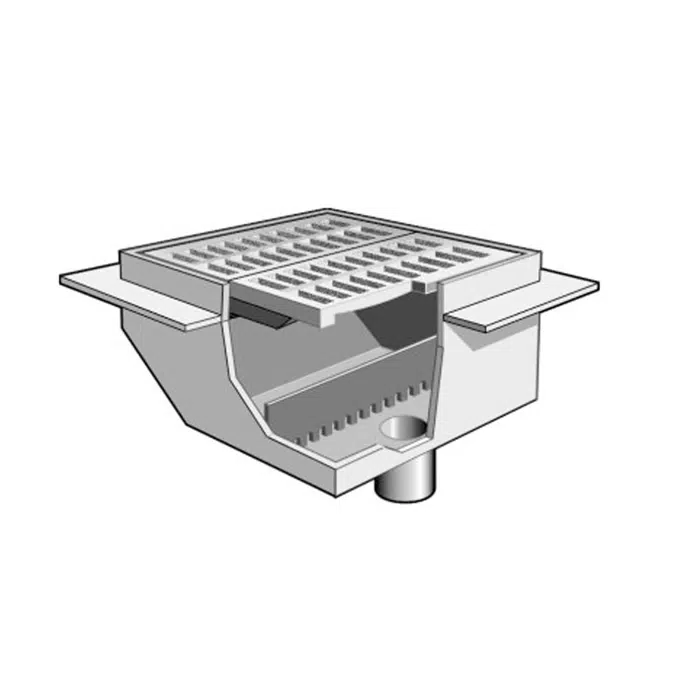

F1590 Heavy Duty Drain with Offset Bottom Outlet

F1590 Heavy Duty Drain with Offset Bottom Outlet

MIFAB® F1590 Series powder epoxy coated drain with offset bottom outlet, anchor flange, and extra heavy duty 24” x 24” (610 x 610) two section ductile iron grates with a free area of 200 square inches (129,032²). Grates to have maximum 13/16” (21) openings.

Specification

SKUs: F1592, F1593, F1594, F1596

Technical specification

Unique ref.f1590-heavy-duty-drain-with-offset-bottom-outlet
Product familyDrains
Product groupFloor and Area Drains » Catch Basins
TypeObject (single object)
Date of publishing2021-02-26
Edition number1

Links

Product urlhttps://www.mifab.com/products/f1590-heavy-duty-drain-with-offset-bottom-outlet/
Installation instructionshttps://www.mifab.com/products/f1590-heavy-duty-drain-with-offset-bottom-outlet/
Technical descriptionhttps://www.mifab.com/Catalog/Library/F1590.pdf

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Drainage

Region availability

North America
United States
