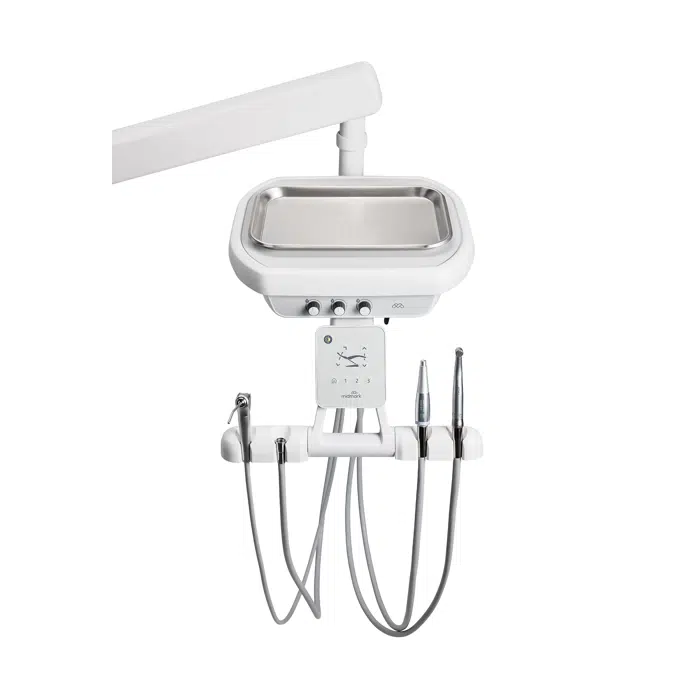

Midmark® Dental Delivery System - DS-1100-001

Engineered for reliable positioning, enhanced waterline safety and seamless integration, the Midmark Dental Delivery System helps deliver safe, exceptional care with ergonomic precision and control.

Support Ergonomics

Configuration options help keep instruments within reach to support healthy posture and movement.

Enhance Safety

Waterlines with minimized internal surface area help inhibit biofilm formation and spread.
Manifold assembly keeps fresh water circulating to help prevent stagnation and biofilm buildup.
Biofilm prevention and treatment options help enhance infection prevention—determined to be effective by testing in accordance with ISO 16954

Streamline Workflow

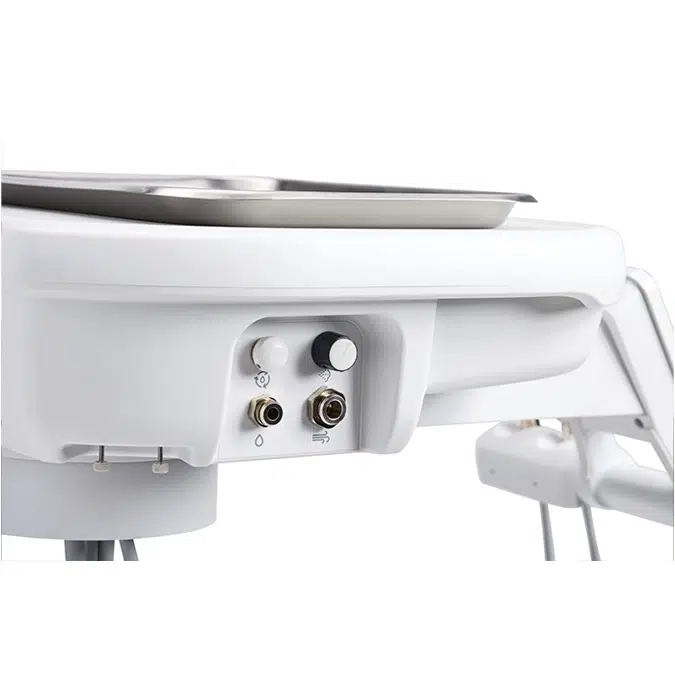

Water and air quick-connect ports help simplify everyday adjustments, routine flushing and maintenance.
Easy-to-access water controls support independent handpiece management and precision.

Optimize Performance

Midmark Smart View^™ Connectivity – Enables software updates and refinements designed to help prevent issues, minimize downtime and keep your equipment performing at its best.

Specification

Mounting Configurations:
Left/Right Chair-Mounted – Doctor-Only Unit
Chair-Mounted – Assistant-Only Unit

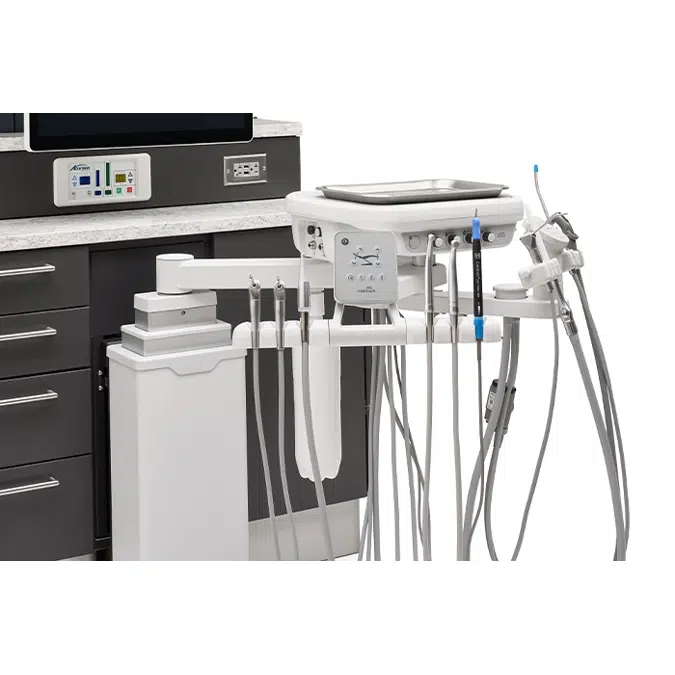

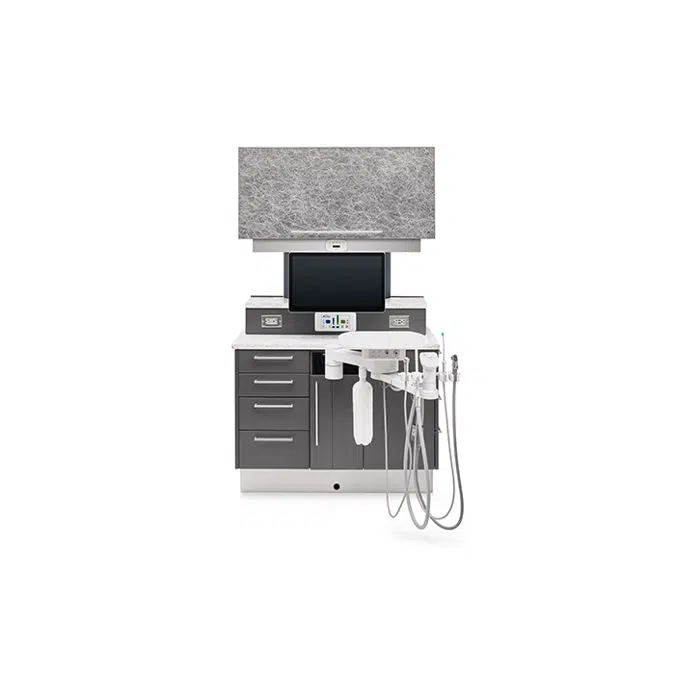

12 O’Clock Cabinet-Mounted – Doctor + Assistant Unit
12 O’Clock Cabinet-Mounted – Assistant-Only Unit
12 O’Clock Column-Mounted – Doctor + Assistant Unit
Handpiece Capacity:
Supports 4 or 6 handpiece positions (configuration dependent)
Independent coolant water control for each handpiece
Water System:
Self-contained water bottle: 2 L
Facility water connection: Available
Recommended water pressure: 40–50 psi
Max. water flow rate: 1.25 GPM
Water hardness limit: 10 ppm TDS
Designed to support cartridge-based dental waterline treatment systems
Air System:
Facility air supply requirement: 80–100 psi
Drive air flow: 60 Nl/min @ 45 psi
Coolant air flow: 1.5 Nl/min @ 35 psi
Individual drive air adjustment for each handpiece
Controls + Integration:

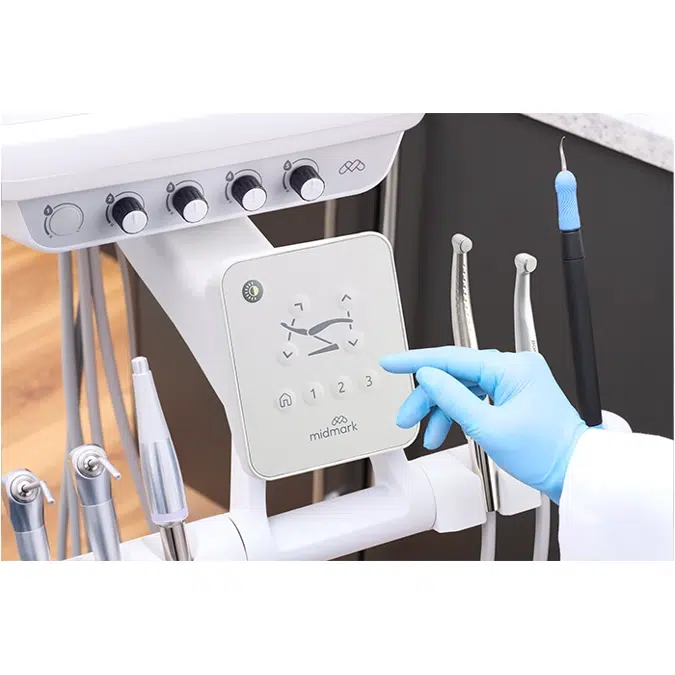

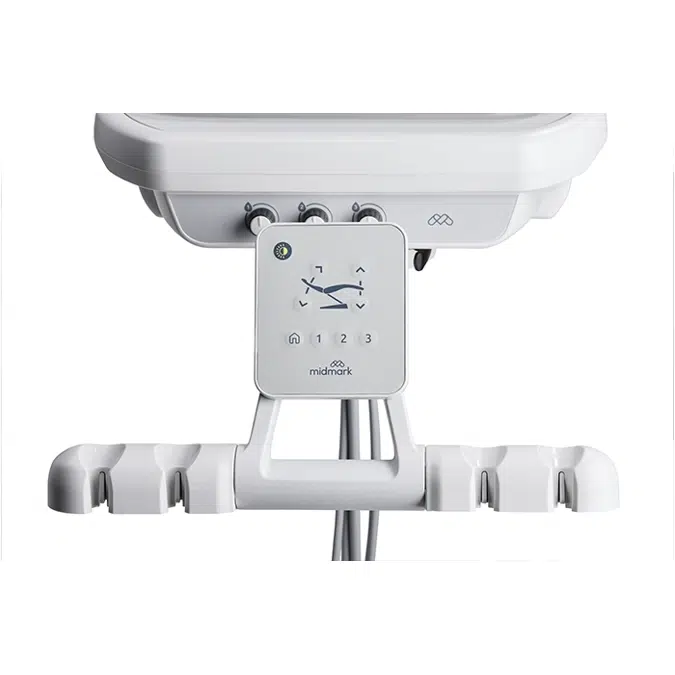

Touchpad controls for chair positioning (when connected)
Supports cure-safe lighting mode with Midmark Dental LED Light
Manual air and water shutoff valves at point of input
Classification + Compliance:
Class I medical electrical equipment
Type B applied part
Continuous operation
Complies with applicable IEC, ISO and ANSI/AAMI standards
Optional Accessories:
Delivery system instrument tray (9" x 13")
Integrated power scaler (configuration dependent)
Assistant’s evacuation system (HVE and saliva ejector)
Specifications and available configurations may vary based on selected delivery system, chair, cabinet and operatory layout.
