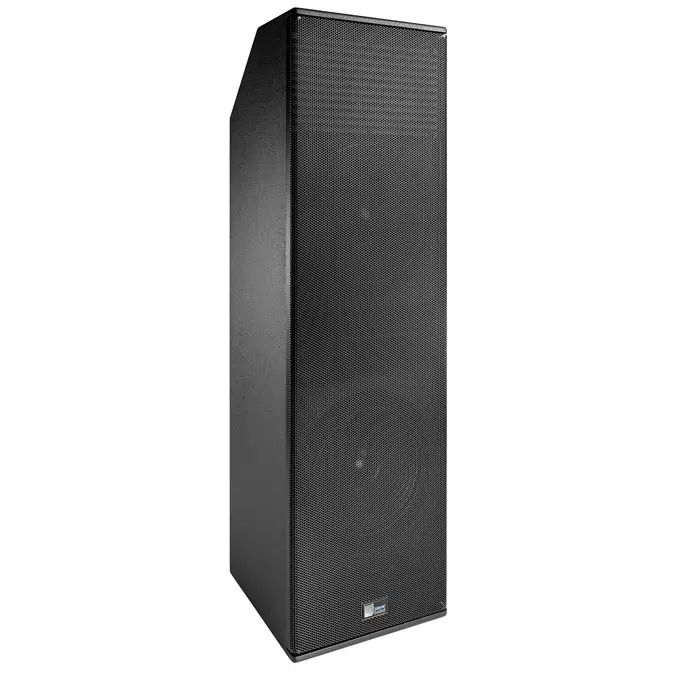

USW-210P - Compact Narrow Subwoofer

USW-210P Compact Narrow Subwoofer

The USW-210P delivers extended low-frequency response in a slim, low-profile cabinet ideal for installations with space constraints. Its dual-driver design matches or exceeds the output of typical 12-inch systems, while a slanted connector panel allows flush wall mounting at just 12 inches depth.

Operating from 30–140 Hz with a peak SPL of 126 dB (M-noise3, half-space, 4 m), the USW-210P uses the same high-efficiency port design as the 1100-LFC. A two-channel Class D amplifier provides onboard processing for protection, frequency, and phase correction. Intelligent AC™ handles voltage selection, EMI filtering, and surge suppression.

Optional RMS™ monitoring enables real-time diagnostics via Compass® software. The birch plywood cabinet includes a steel grille, with weather protection and custom finishes available. Mounting options include M8 points for U-brackets and an optional base plate for vertical orientation.

Features and Benefits

• High power-to-size ratio
• Discrete appearance and versatile, as it accommodates either vertical or horizontal placement
• Fits into tight architectural spaces at only 12 inches deep including connectors
• Clean and low distortion output due to its low air velocity port

Applications

• Commercial installation
• Theatrical sound reinforcement
• Houses of worship
• Conference rooms
• High-end home theatre
• AV systems
