U blocks for reinforced floor joist produced on site, have horizontal stiffening function.

Specification

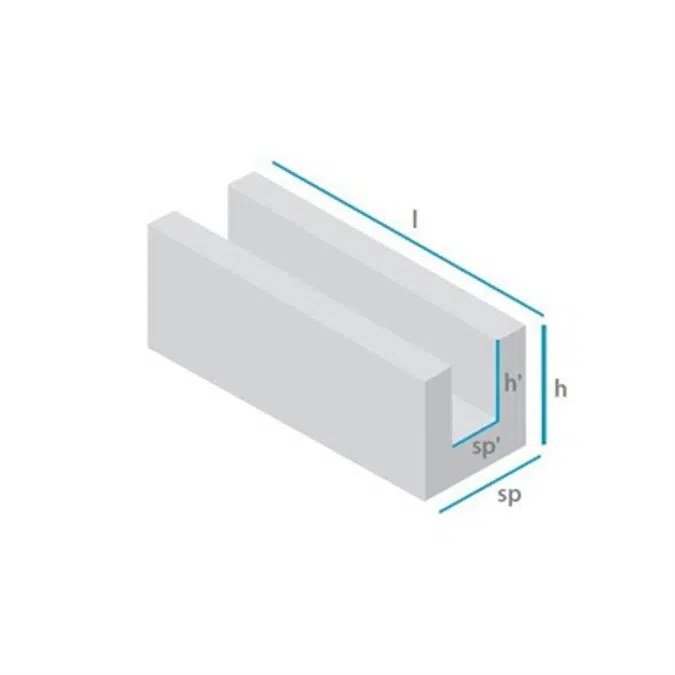

Formation of a reinforced concrete floor joist or lintel placed in the "U" blocks made by autoclaved cellular concrete realized by milling mattONE 500 blocks, having thermal conductivity λ10 dry equal to 0.12 W / mK and CE marking in compliance with UNI EN 771 -4, reaction to fire in Euroclass A1, dimensions 20, 24, 30, 36, 40, 45, 50 cm x 25 x 62.5 cm (S x H x L), section size for the casting CLS sp20cm 10 cm x 17.5 cm - other thicknesses 15 cm x 17.5 cm (B x H) (reinforcement calculations and checks to be carried out).

Technical specification

Unique ref.mattONE-channel
Product familywalls
Product grouphorizontal reinforcement
TypeObject (single object)
Date of publishing2018-05-22
Edition number1
Height (mm)250
Depth (mm)625

Links

As builthttp://www.mattone.eu/
Product urlhttp://www.mattone.eu/
Installation instructionshttp://www.mattone.eu/
Instruction videohttps://www.youtube.com/watch?v=WtapYjVEGzI
Product certificationhttp://www.mattone.eu/
Technical descriptionhttp://www.mattone.eu/

Related

Material mainAerated concrete
Material secondaryLime
Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryWalls - Other Walls
IFC classificationBlock
Uniclass 2015 CodePr_20_93_52_05
Uniclass 2015 DescriptionAutoclaved aerated concrete (AAC) blocks
CSI MasterFormat 2014 Code04 22 26
CSI MasterFormat 2014 TitleAutoclaved Aerated Concrete Unit Masonry
OmniClass Number23-13 35 21 11
OmniClass TitleConcrete Structural Walls
CSI UniFormat II CodeF1020
CSI UniFormat II TitleIntegrated Construction

Region availability

Europe
Italy
San Marino
Vatican City
