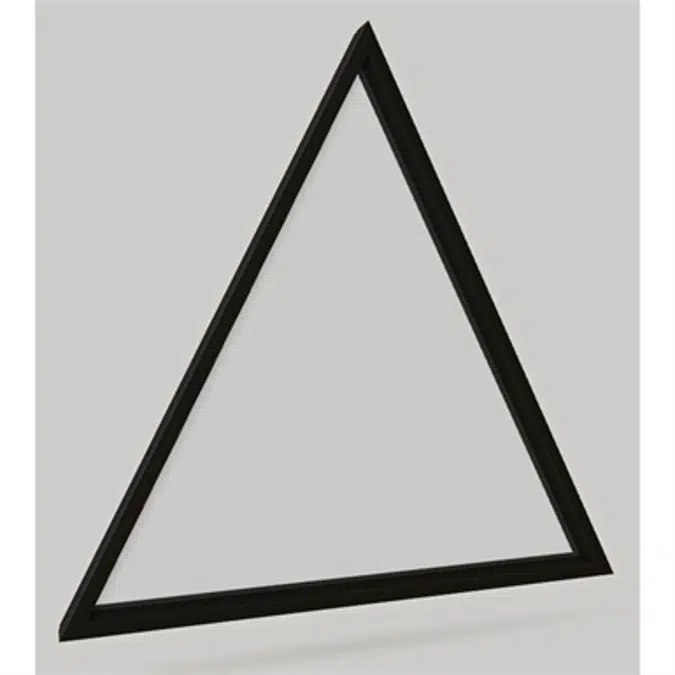

Modern Direct Glaze Triangle Window

Modern Direct Glaze Triangle Window

Modern Direct Glaze Triangle Window

Modern Direct Glaze Triangle Window

4.5(8 reviews)

Combine product ingenuity with pure modern aesthetics and the result is truly stunning. The Marvin Modern line is made to be built big and perform at scale, complemented by the power of critical design details.

Features: Large expanses of glass for maximum views with numerous configurations and sizes available; Rectangular and polygon shapes; Frame recess accepts a drywall return for seamless integration; Horizontal or vertical ribbon mulling capabilities; Non-certified mulling capabilities; Maximum certified frame size - 141 3/8 x 93 3/8"; Single Unit Performance Rating - CW-PG40; Vertical or Horizontal Mulled Units Performance Ratings - CW-PG40.

Technical specification

Unique ref.marvin_mndg-isosceles
Product familySignature
Product groupModern Windows
TypeObject (single object)
Date of publishing2019-12-20
Edition number3

Links

Product urlhttps://www.marvin.com/marvin/windows/modern-direct-glaze
Technical descriptionhttps://www.marvin.com/marvin/windows/modern-direct-glaze?view=pro-resources&option=construction-specifications

Related

Material mainFibreglass reinforced polymer composite
Material secondaryAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWindows - Fixed Frame Windows
IFC classificationWindow
Uniclass 2015 CodePr_30_59_98
Uniclass 2015 DescriptionWindow units
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 19 11
OmniClass TitleComposite Fixed Windows
CSI UniFormat II CodeB2020
CSI UniFormat II TitleExterior Windows

Region availability

North America
United States
