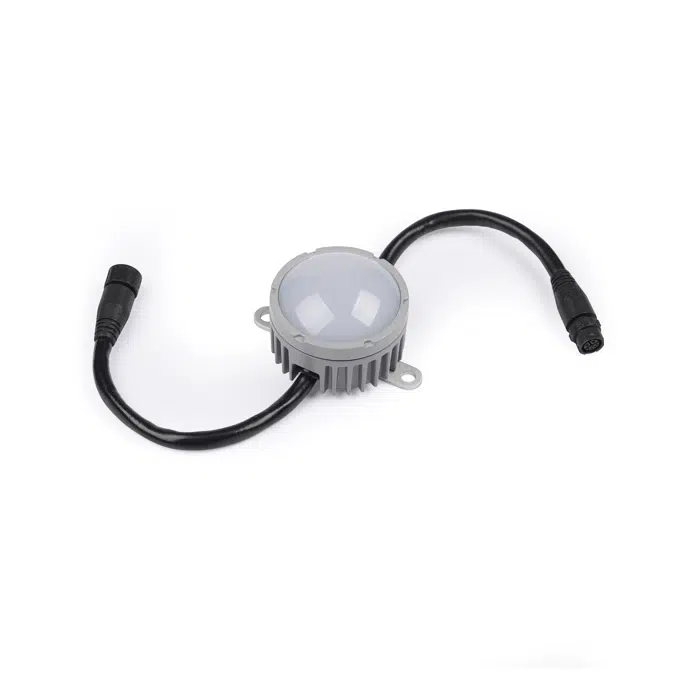

Exterior Dot-HP Pro Outdoor-Rated, High-Output RGBW LED Connector-Based Dot

Physical

• Diameter: 78 mm (3.1 in.)
• Weight: 395 g (0.86 lbs.)
• Height with clear front: 43 mm (1.7 in.)
• Height with dome front: 58 mm (2.3 in.)

Control and Programming

• Control Resolution:
  • 16-bit (P3) or 8-bit (DMX) control of each color
• Control Protocols:
  • Martin P3, Art-Net, or sACN
• Protocol Detection: Automatic
• Setting and Addressing:
  • Martin P3 System controller or RDM (over Art-Net)-compliant controller
• RDM: ANSI/ESTA E1.20
• DMX Modes: Standard, Extended, Raw, RGB, or PixelMap
• DMX Channels: 6, 12, 4, 3, 48
• Fixture Identification: User-settable ID number
• Compliance:
  • Art-Net 1, 2, 3, and 4 (including RDM over Art-Net)
  • sACN (ANSI E1.31 – 2016)
  • Martin P3 System Controller Software 6.1.0 or newer
• Ethernet Transceiver: 10/100Mbit
• Firmware Update: Via Ethernet using Martin Companion or P3 System Controller

Optics

• Light Source: 16 x RGBW LEDs
• Minimum LED Lifetime: 100,000 hours (>70% luminous output at 25°C)
• LED Manufacturer: LumiLeds
• Binning: Tight color and flux binning
• Calibration: Full Gamut Color Calibration

Photometric Data

• CRI (Color Rendering Index): > 70
• Color Resolution: 16 bits per color (64 bits per pixel)
• Dot Pitch: 78 mm - 500 mm (fixture to fixture)
• Color Temperature: 2,000 – 12,000 K
• Viewing Angle:
  • Clear front: 150°
  • Diffused dome: 180°

Luminous Intensity:

• Full @ 6500K:
  • Clear front: 90 cd
  • Diffused dome: 56 cd

Luminous Output:

• Full @ 6500K:
  • Clear front: 260 lm
  • Diffused dome: 175 lm
• Red:
  • Clear front: 80 lm
  • Diffused dome: 55 lm
• Green:
  • Clear front: 230 lm
  • Diffused dome: 155 lm
• Blue:
  • Clear front: 60 lm
  • Diffused dome: 40 lm

*Dot pitch can be extended using hybrid DCE cables.
*Measured in steady state (30 minutes warm-up) at 25°C ambient.

Construction

• Color: Traffic Grey RAL 7042 (custom colors available on request)
• Surface Treatment: Anodized and electrostatic powder-coated
• Base: Cast aluminum
• Protection Rating: IP67
• Effective Projected Area (EPA): 0.007 m²
• Impact Resistance: IK08
• Corrosion Resistance: C5 High (ISO 12944-6)
• Vibration Resistance:
  • 1.0g, Sinusoidal (IEC 60068-2-6)
  • 0.7g RMS Random (IEC 60068-2-64)
  • 3.0g (ANSI C136-31)

Installation

• Mounting Points: Direct surface mount or accessory mounting plate
• Orientation: Any

Connections

• Input: DCE connector cable tail for Power & data input, IP67
• Output: DCE connector cable tail for Power & data thru, IP67
• Connection: Hot-pluggable
• Max Daisy-Chain:
  • Full Mode: 68 fixtures including 50 m cable
  • Reduced Power Mode: 125 fixtures including 50 m cable

*Refer to system diagram for fixture run limitations.

Electrical

• Nominal Input Voltage: 48 VDC +/- 4%
• Power Supply Options:
  • Martin P3 PowerPort 2000
  • P3 PowerPort 500 IP Install
  • P3 PowerPort 500 IP Rental
  • Martin DCE PSU 240 IP
  • Generic 48 VDC PSU
• Surge Protection: 4 KV

Power Consumption:

• Maximum: 5.7 W in full power mode, 3.2 W in reduced power mode
• Idle: 1.8 W
• Hibernation: 1.5 W

*Idle: Zero intensity
*Hibernation: Zero intensity, wake-up procedure to re-use fixture.

Thermal

• Cooling: Convection
• Total Heat Dissipation (calculated): 17 BTU/hr.
• Maximum Ambient Temperature (Ta max.): 55° C (131° F)*
• Minimum Ambient Temperature (Ta min.): -30° C (-22° F)

*Above 45°C, the fixture regulates output to prevent overheating.

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Efficacy (Max Output): 50 lm/W
• LWR (Lumen-to-Weight Ratio): 630 lm/kg (290 lm/lb)
• Packaging: FSC-certified cardboard inlay and outer box

Approvals

• Global CB Certification/IECEE: EC 62368-1
• EU Safety: EN 62368-1
• EU EMC: EN55035, EN55032, EN61000-3-2, EN61000-3-3
• US Safety: UL 62368-1
• US EMC: FCC Part 15 Class B
• Canadian Safety: CSA C22.2 No.62368-1
• Canadian EMC: ICES-003 Class B
• Australia/NZ: RCM (Pending)
• United Kingdom: UKCA
• India: BIS IS 10322 (Part5/Section7) - Pending

Related Items

• Controllers and Power Supplies:
  • Martin P3 PowerPort 2000: P/N MAR-90721200
  • Martin P3 PowerPort 500 IP Rental: P/N MAR-90721201
  • Martin P3 PowerPort 500 IP Install: P/N MAR-90721202
  • Martin DCE PSU 240 IP: P/N MAR-90721203
  • DCE DataSplitterBooster IP: P/N MAR-90721204
  • Martin P3-175 System Controller: P/N MAR-90721100
  • Martin P3-275 System Controller: P/N MAR-90721101
  • Martin P3-PC System Controller: Free download from martin.com
  • Martin Companion Software: Free download from martin.com
• Cables and Adapters:
  • DC + Ethernet Cables (various lengths): P/N MAR-91700100 to MAR-91700106
  • DC + Ethernet Adapters: P/N MAR-91700111 to MAR-91700114
  • Closing Caps: Male (P/N MAR-91700109), Female (P/N MAR-91700110)
• Accessories:
  • Dot-HP Pro Flange Bracket (10 pcs): P/N MAR-90581012
  • Mounting Profile Kit: P/N 91606021

Ordering Information

• Exterior Dot-HP Pro (clear front, grey): P/N MAR-90581000
• Exterior Dot-HP Pro (diffused dome, grey): P/N MAR-90581010
