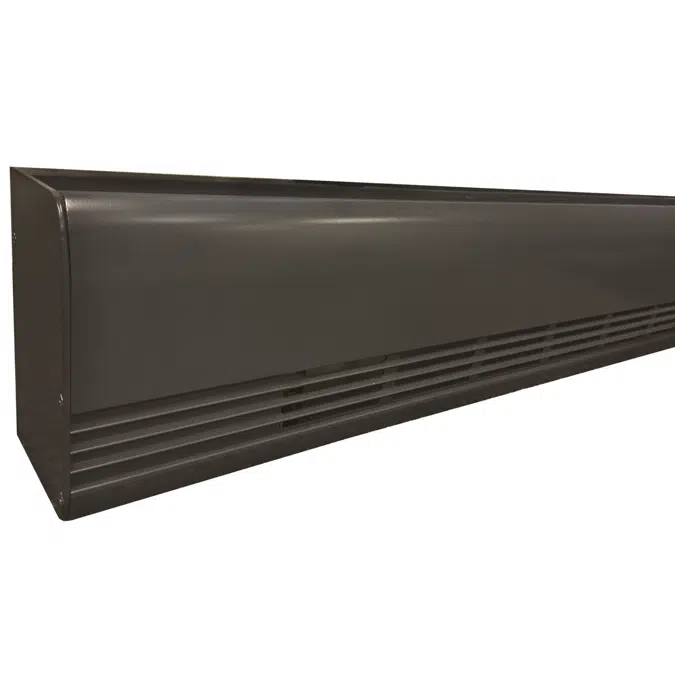

QMark - Architectural Sill-Height Convector – DBA & SHA Series

DBA Series is approved for residential applications
Patented “Stair-Step” SHA heating element design accommodates a multitude of applications and heating needs
Unique two-piece extruded aluminum Snap-Lock closure design secures the one-piece top and front grilles to the one-piece back and bottom providing a rapid, secure fit all along the length of the unit
Front/bottom inlet air grille utilizes slots which create an attractive installation where inlet grille is visible
Blend into any dcor with custom paint and anodizing upon request

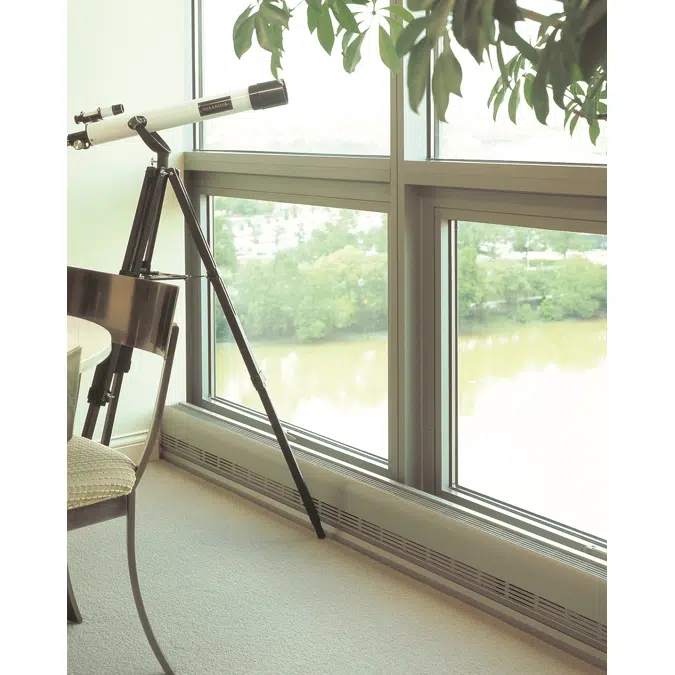

Units can be mounted on floor, wall, or pedestals
Customize space with wall-to-wall installation, or as discrete units in standard lengths of 28 in. to 10 ft.
Units are available in a wide range of heating capacities per foot length (see specifications)
Architectural-style end sections give a finished look when used as a stand-alone or where a wall-to-wall run is not desired
Inside and outside corners can be ordered factory-cut and mitered to fit difficult or unusual spaces
Right -or left-hand entry and built-in wire way (equivalent to 3/4 in. conduit) with factory-installed wiring
Full line of trim accessories, including matching blank sections, end caps, filler sections, inside and outside corners, diagonal end sections, and splice plates
Optional built-in controls include: line-voltage thermostat; two-stage thermostat; on/off switch; transformer relay; power relay and pneumatic/switch
Easy connection of supply wiring from bottom, rear or end, as well as multiple wiring of adjacent heaters from one entry point
Thermal limit switch with linear type (full length) sensing bulb provides constant protection against overheating from any cause
Switch will automatically reset when normal operating temperatures are restored

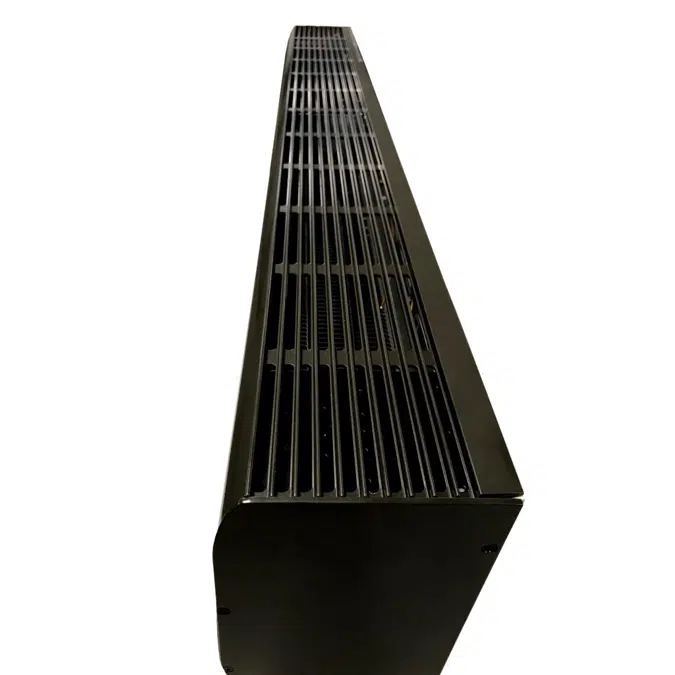

Discharge air openings in top grille are punched slots which are pencil-proof for safety

Specification

- DIMENSIONS | (DBA) 6″ H x 3-5/8″D (Length varies)
- DIMENSIONS | (SHA) 7″ H x 5-5/8″D (Length varies)
- COLORS | White, Beige, Aluminum, Bronze, Black, Charcoal Gray, Custom Colors & Anodizing
