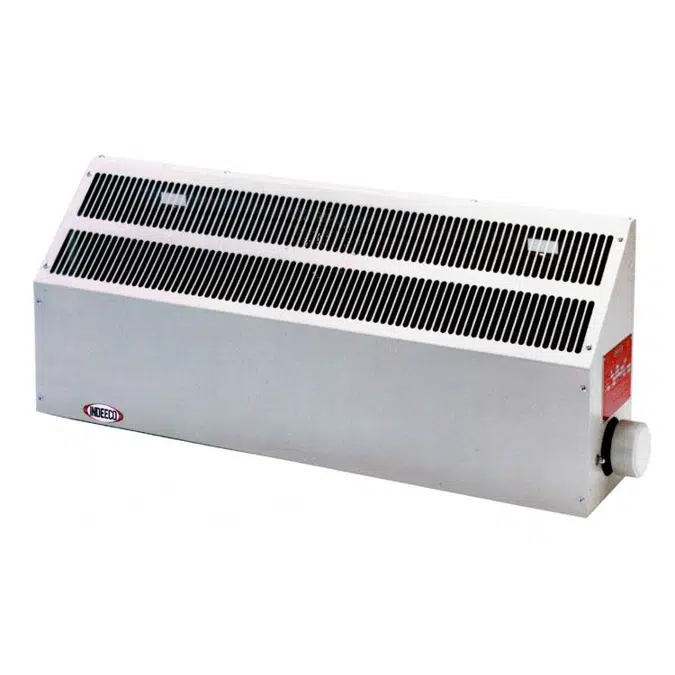

Indeeco - Explosion-proof Convector

Indeeco’s Explosion-Proof Convector Heater is specifically engineered to deliver dependable heating in areas where explosive gases, vapors, or dust may be present. Designed for both safety and durability, this unit provides a heavy-duty, corrosion-resistant heat source ideal for harsh industrial applications.

Constructed with high-quality materials and built to meet stringent safety standards, this heater is certified for use in Class I, Division 1 and Division 2 hazardous locations, as well as Class II, Groups E, F, and G. Its low-profile, wall-mounted design ensures space-saving installation without sacrificing performance. It provides silent, convection-based heat without moving parts, reducing maintenance and improving reliability in remote or hard-to-access locations.

Whether it’s a chemical processing plant, offshore oil platform, or fuel storage terminal, the Indeeco Explosion-Proof Convector ensures consistent and safe operation, even in the most demanding environments.

Specification

Wide Selection of Sizes
Four compact sizes to fit any space with ratings from 500 to 9,500 watts.
Sloped Top Cabinet
Prevents objects from being set on top of the convector, which can restrict airflow and cause overheating.
Single and Three-Phase
Unique design provides single and balanced three-phase loads in a single element.
Gas and Dust Atmospheres
Three listings cover the entire field, two for hazardous gases and vapors and one for dust particles.
Wet Locations
All unit sizes available with iriditecoated elements and powder-coated frames for NEMA 3 wet locations.
Element
Grade A Nickel-Chromium heating coils are insulated with ceramics and magnesium oxide from the copper heater tube and fitted with large aluminum fins locked in place.
Cabinet
Heavy gauge galvanized steel cabinet is painted with a beige powder coat for durability. Cabinet should be mounted at least 6 inches (152 mm) above the floor. Factoryfurnished wall brackets make installation easy.
Thermal Protection
A linear limit, automatic reset thermal cutout is built into every unit.
Complete Electrical Package
For larger single-phase and all three-phase units, a built-on contactor and transformer option package are available.
