Arctic Seal® Ice and Water Barrier

Arctic Seal® Ice and Water Barrier

Malarkey Roofing Products

Arctic Seal® Ice and Water Barrier

Our Most Economical Ice & Water Barrier

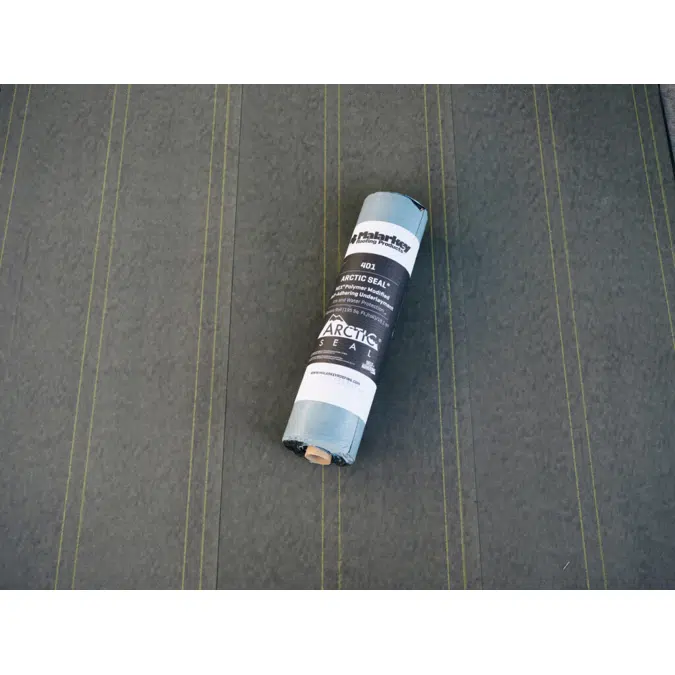

Arctic Seal® is a durable, waterproof, self-adhering underlayment made for areas of the roof most susceptible to leaks. Arctic Seal® can also be used as a high-performance, all-roof underlayment.

Ice & Water Barrier

A new roof requires more than just shingles. It’s a cohesive, coordinated system of 5 parts. In order of installation, they are: 1) ice & water barrier, 2) underlayment, 3) starter shingles, 4) field shingles, and 5) hip & ridge shingles.

The ice & water barrier sits under the shingles and the underlayment to provide an extra, waterproof membrane in more leak sensitive areas like roof valleys, edges, and transitions.

Malarkey offers two ice & water barriers tailored to asphalt shingle roofs. Arctic Seal® is our most economical.

Specification

Technical Specs
SKU: 401
L: 65′
W: 36″
SQ/Roll: 2
Thickness: 65 mils nominal
Testing Compliance
ASTM D1970
FM Approved
Shipping Specifications
SQ/Roll: 2
Rolls/Pallet: 25 Portland
Rolls/Truckload: 650 Portland

Technical specification

Unique ref.arctic-seal-ice-and-water-barrier
Product familyAccessories
Product groupIce & Water Barriers
TypeObject (single object)
Date of publishing2025-03-03
Edition number1

Links

Product urlhttps://www.malarkeyroofing.com/products/accessories/arctic-seal/
Installation instructionshttps://www.malarkeyroofing.com/app/uploads/2021/05/401-arctic-seal-installation-guide-malarkey.pdf
Technical descriptionhttps://www.malarkeyroofing.com/app/uploads/2021/05/401-arctic-seal-tech-data-sheet-malarkey.pdf

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryConstruction - Roof
IFC classificationRoof
ETIM CodeEG019610
ETIM NameRoofing materials
Uniclass 2015 CodePr_25_57_08_71
Uniclass 2015 DescriptionReinforced bitumen membrane perforated underlays
CSI MasterFormat 2014 Code07 25 00
CSI MasterFormat 2014 TitleWeather Barriers
OmniClass Number23-13 25 00
OmniClass TitleThermal and Moisture Protective Products

Region availability

North America
Canada
United States
