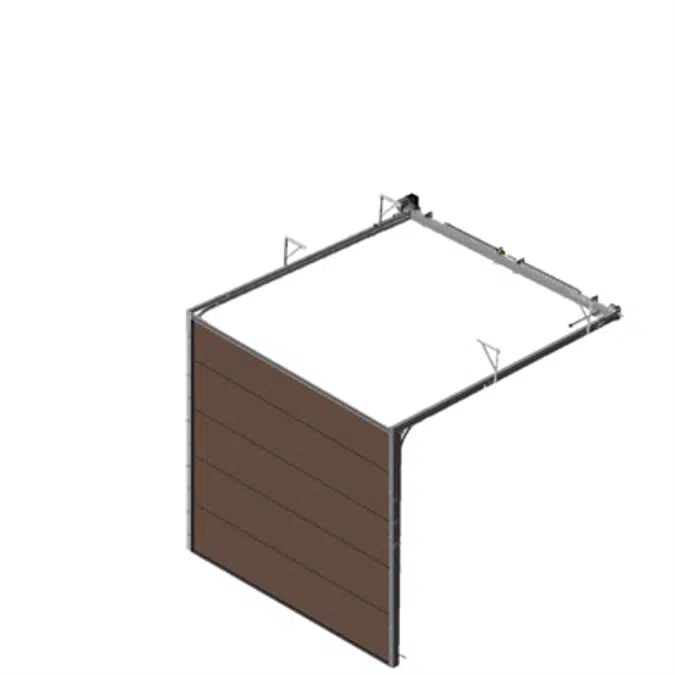

Sectional overhead door 601 - low lift - 40mm panels

The Loading Systems sectional overhead doors are fully insulated at all sides and prevents the possible ingress of rain, draughts, sand and dirt. Synthetic sealing tape with a closed core provides optimal sealing between the panels.

The Loading Systems overhead doors can be fitted with the following track systems

1. Low lift (this model)
2. Standard lift
3. High lift
4. Vertical lift

The different track systems (with the exception of the vertical lift system) can also be designed to follow the pitch of the roof.The maximum dimensions of the Loading Systems sectional overhead doors are 8000 mm (w) x 6700 mm (h).

Standard safety provisions

• The PowerDoor 601 is provided with a CE-marking, a guarantee for quality and safety, in accordance with the current applicable European standards;
• Spring fracture safeguard (for manual operation or applicable for a de-clutching motor);
• Deadman push button control (for electrical operation);
• Motor protection with the aid of a thermal relay (for electrical operation);
• Control cabinet with emergency stop, in accordance with the current applicable European standards (for electrical operation);
• Slack cable protection (for electrical operation).

Technical specifications

• Standards CE
• Cladding thickness 0.5 mm
• Panel thickness 40 mm
• Filling Polyurethane 100% HFCKW free
• Tracks and profiles 2.0 mm thick galvanised
• Motor 0.37 kW
• Power supply 230/400 V
• Control current 24 V DC
• Standard colour RAL 9010

No rights may be derived from the BIM models.
