Loading Systems

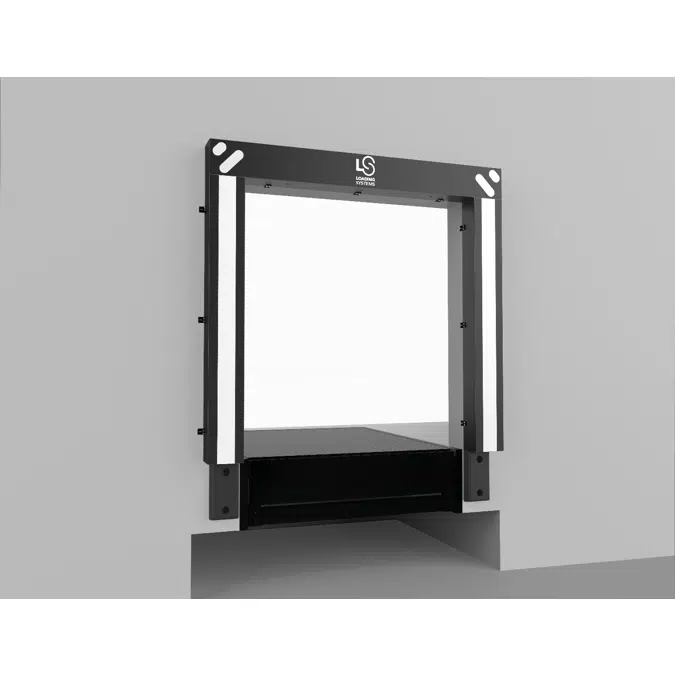

Cushion dock shelter 400NG

Name: Cushion dock shelter 400NG
Rating: 4.7 (6 reviews)

4.7(6 reviews)

The cushion dock shelter 400NG is a dock shelter that uses robust cushions made of durable materials to close the space between the warehouse opening and the docked truck. The choice of high quality materials ensure that seals are extremely resistant to UV radiation. Furthermore, the material has a high tear resistance, tensile strength and excellent temperature durability.

The correct layout of a loading / unloading platform depends on a large number of different factors. That is why the dock shelter 400NG can be adapted to every customer-specific situation.

Specification

The dock shelter 400NG consists of 3 cushions consisting of a galvanized steel frame, high-quality resilient polyfoam and a cover made of polyester trevira fabric, with a matt PVC coating on both sides. The 400NG is standard equipped with robust powdercoated mounting brackets. Mounting material can be ordered optionally.

The front side of the side cushions is provided with full-height approach stripes, which serve as orientation points for the driver to encourage correct manoeuvring of the vehicle against the seal.
All Loading Systems products and systems comply with the highest quality standards.

Standard Dimensions (mm)	831	832	833	841	842	843
OW: Overall width	2800	2800	2800	3000	3000	3000
OH: Overall height	2500	2700	2900	2600	2800	3000
W: Clear opening width	2200	2200	2200	2200	2200	2200
H: Clear opening height	2200	2400	2600	2200	2400	2600
CW: Cushion width	300	300	300	400	400	400
D: Depth	230	230	230	230	230	230

Special sizes are available on request.

No rights may be derived from the BIM models.

Technical specification

Unique ref.cushion-dock-shelter-400
Product familyDock Equipment
Product groupDock shelters
TypeObject (single object)
Date of publishing2018-05-15
Edition number1

Links

Product urlhttps://www.loading-systems.com/products/dock-shelters/cushion

Material mainRubber
Designed inNetherlands
Manufactured inNetherlands

Classification

BIMobject CategoryLoading Equipment - Dock shelters
IFC classificationDoor
UNSPSC nameDoors
UNSPSC code301715
Uniclass 2015 CodePr_80_77_23_31
Uniclass 2015 DescriptionFoam pad (cushion) dock seals
CSI MasterFormat 2014 Code11 13 16.13
CSI MasterFormat 2014 TitleLoading Dock Seals
OmniClass Number23-23 23 19
OmniClass TitleLoading Dock Seals
CSI UniFormat II CodeE10
CSI UniFormat II TitleEQUIPMENT
