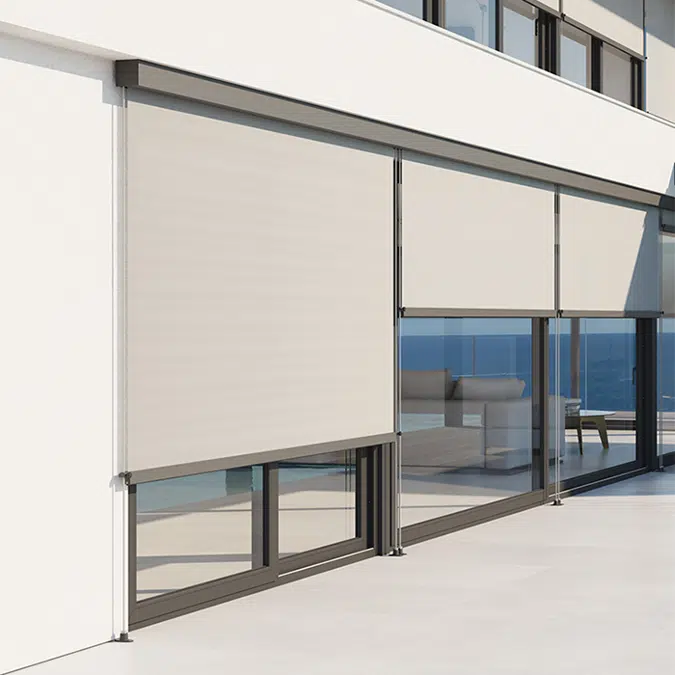

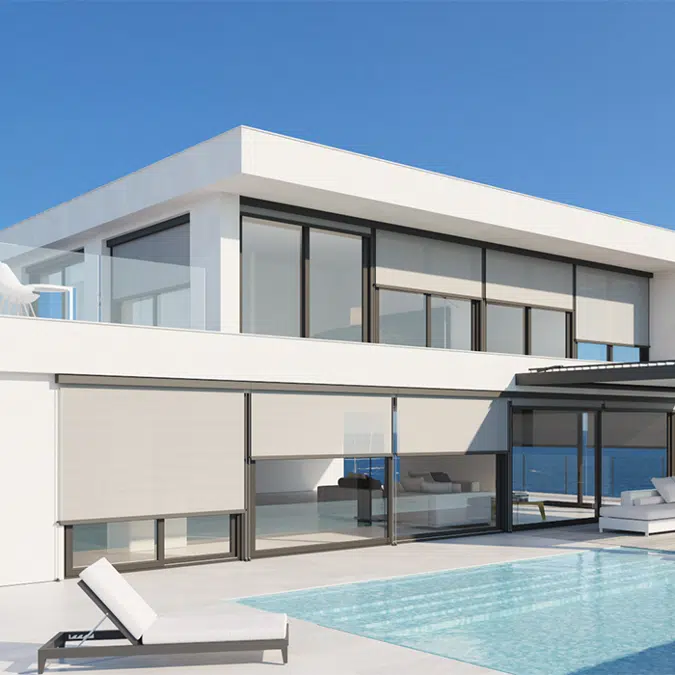

KLAIS 110 VC vertical awning / blind with box with visible guidance
KLAIS 110 VC vertical awning / blind with box with visible guidance
KLAIS 110 VC vertical awning / blind with box with visible guidance
    Llaza

    KLAIS 110 VC vertical awning / blind with box with visible guidance

    Klais 110 Rod-Cable: vertical system with cassette with visible guiding

    Klais 110-CV with rod or cable guiding system.

    By using the LLAZA objects together with the RECASENS fabrics, the user will be able to perform the calculations of thermal and visual properties. Thanks to the program hosted in RECASENS BIM materials, it is possible to adapt these calculations to the project specific needs.

    BENEFITS FOR THE END USER

    • The straight, minimalist lines of the box make it suitable for all kinds of façades.
    • Optimal 110x110 mm cassette dimensions allow for more roll-up in less space.
    • Strength and a 100% metal look with no visible plastic pieces.
    • Fabric always protected thanks to the cassette box.
    • It provides thermal comfort and visual comfort.
    • It defines individual spaces, creating comfort zones protected from passers-by and the view of outsiders.
    • Great versatility to allow both cable and rod guiding systems.

    BENEFITS FOR THE PROFESSIONAL INSTALLERS

    • Easy access to the interior mechanism after the awning has been installed.
    • Designed for simple and safe installation.
    • Allows 3 installation options, frontal, ceiling and between walls, by means of the front/ceiling support.
    • Versatility of assembly with different possibilities of guiding systems, fixings and tensioners.
    Specification
      • Maximum dimensions: up to 5,00 m of width x 2,50 m of height or up to 3,50 m of width x 5,00 m of height
      • Guiding system: rod or cable guide
      • Use: outdoors and indoors
      • Operation: manual, motorised or automated
      • Mounting: wall or ceiling or between walls
      • Product subjected to the tests required by European standard UNE-EN 13561:2015 for obtaining the CE marking
      • Wind resistance: Class 2 up to 38 km/h
      • Lacquer in accordance with Qualicoat standards
      • Stainless steel screws and bolts
    Technical specification
    • Unique ref.KLAIS_110-CV
    • Product familyVertical textile systems
    • Product groupRod or cable guide
    • TypeObject (single object)
    • Date of publishing2026-02-04
    • Edition number1
    • Height (mm)2500
    • Width (mm)5000
    Links
    Related
    • Material mainAluminium
    • Material secondaryStainless steel
    • Designed inSpain
    • Manufactured inSpain
    Classification
    • BIMobject CategoryConstruction - Shading Systems
    • IFC classificationObject
    • UNSPSC nameWindow screens
    • UNSPSC code30171614
    • Uniclass 2015 CodePr_30_59_07
    • Uniclass 2015 DescriptionBlinds and shading devices
    • CSI MasterFormat 2014 Code12 24 00
    • CSI MasterFormat 2014 TitleWindow Shades
    • OmniClass Number23-17 21 00
    • OmniClass TitleProtection of Openings
    • CSI UniFormat II CodeB20
    • CSI UniFormat II TitleEXTERIOR CLOSURE
