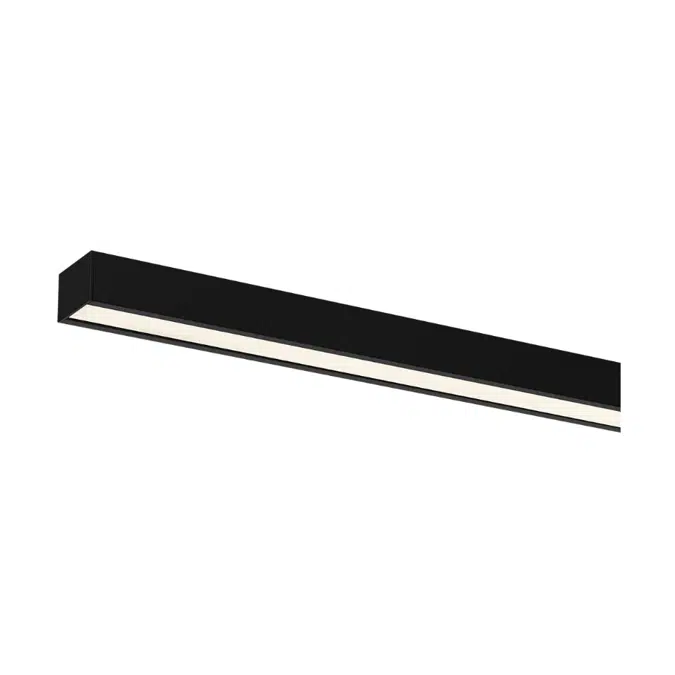

    STRIPE Linear Linkable Lightbar

    STRIPE is linear made easy. This sleek, plug-and-play, linear lighting system is designed for modern spaces. The easy to install construction enables seamless power connections through junction boxes, electrical device boxes, hardwiring and plug-in. Available in multiple lengths and capable of joining up to 150ft no light gaps. STRIPE's modular design allows for creative configurations, from linear runs to geometric shapes making it perfect for corridors, bathroom vanity lights, kitchen islands, gyms, offices and more.

    Specification
    • Approved Location Damp

      Beam Angle 125°

      CCT (switch)

      2700 K / 3000 K / 3500 K / 4000 K / 5000 K

      Certification cETLus

      CRI 90+

      Dimming Yes

      Dimming Technology TRIAC / ELV

      Fixture length 18" / 24" / 36" / 48"

      Lumens Up to 1800

      Lumens per watt Up to 93

      Min. Start Temp. -18°C

      Power Factor >0.95

      R9 >60

      Rated Life 50,000 hrs

      THD <15

      Voltage 120V

      Warranty 3 Years

      Wattage 8 / 10 / 15 / 20

    Technical specification
    • Unique ref.stripe-linear-linkable-lightbar
    • Product familyLinear
    • Product groupSTRIPE
    • TypeObject (single object)
    • Date of publishing2025-08-27
    • Edition number1
    Classification
    • BIMobject CategoryLighting - Other
    • Uniclass 2015 CodeEF_70_80
    • Uniclass 2015 DescriptionLighting
    • CSI MasterFormat 2014 Code26 50 00
    • CSI MasterFormat 2014 TitleLighting
    • OmniClass Number23-35 47 00
    • OmniClass TitleElectrical Lighting
