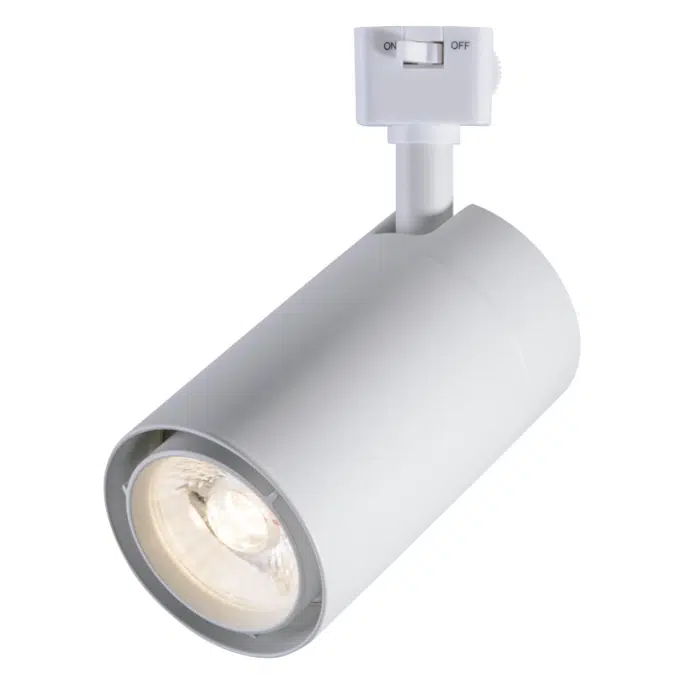

    FLEX Series: Track, Pendant, Surface, etc.

    ombining sleek aesthetics with the power of versatility, the FLEX Series by A-Line fits a variety of applications from Grocery Stores, Fast Food, Retail, Hospitality and everything in-between. Fulfil the vision of your next project with Dim-to-Warm, 27K, 30K, 35K and 40K color options, up to a commanding 4140 lumens delivered, 95+CRI and 7 mounting options. Available in black, white or silver, FLEX will provide your space with consistency of appearance and integrity of design throughout every room.

    Mounting Options: Track, Track Pendant, Pendant, Monopoint, Dual head,  Flushmount, Hald Sconce, and Sconce

    Specification
    • Approved Location Dry / Indoor

      Beam Angle 15° / 25° / 40° / 60°

      CCT

      2700 K / 3000 K / 3500 K / 4000 K / DTW (3000 K -2000 K)

      Certification cETLus

      Class II Yes

      Color BK / SL / WH

      CRI 95

      Dimming

      Yes: 10W / 15W / 22W / 32W

      No: 38W

      Dimming Tech TRIAC/ELV

      Input 100-135V AC, 60Hz

      Lumens 700-4140

      Lumens per Watt Up to 109

      Power Factor 0.95

      Projected Life 70% @ 50,000 hrs

      UGR/Glare Refer to photometric

      reports

      Warranty 5 years

      Wattage 10W / 15W / 22W / 32W / 38W

    Technical specification
    • Unique ref.flex-series
    • Product familyTrack
    • Product groupFLEX
    • TypeObject (single object)
    • Date of publishing2025-08-27
    • Edition number1
    Classification
    • BIMobject CategoryLighting - Other
    • Uniclass 2015 CodeEF_70_80
    • Uniclass 2015 DescriptionLighting
    • CSI MasterFormat 2014 Code26 50 00
    • CSI MasterFormat 2014 TitleLighting
    • OmniClass Number23-35 47 00
    • OmniClass TitleElectrical Lighting
