    Liteline

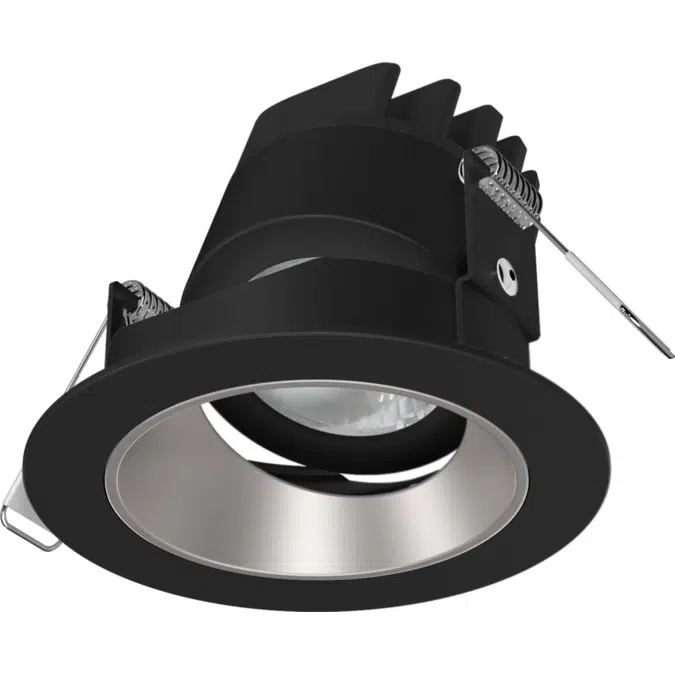

    DINE Recessed Downlight

    The Dine Recessed Series is a versatile lighting fixture designed to create a warm, inviting atmosphere with consistent light output. It offers ultra-low glare and exceptional adjustability, delivering precise illumination ideal for design-focused hospitality and high-end residential spaces. This fixture is the perfect solution for applications that require field-changeable optics to meet specific design goals.

    Specification
    • Aperture 2 1/2" (65mm)
      Application Recessed
      Approved Location Damp
      Certification cETLus
      CRI >90
      Dimming Yes
      Engine Tilt 22.5°
      Hole Cut Size Ø 3 1/4" (82mm)
      Lumen Maintenance 70% @ 50,000 Hrs
      Max Ceiling Thickness 1 1/4" (32mm)
      Power Factor > 0.9
      Power Supply Type Constant Current
      THD <20%
      Title 24 Yes
      TM-30 Annex E P2 / V- / F3

    Technical specification
    • Unique ref.dine-recessed-downlight
    • Product familyDownlights
    • Product groupDine
    • TypeObject (single object)
    • Date of publishing2025-09-30
    • Edition number1
    Classification
    • BIMobject CategoryLighting - Ceiling Mounted
