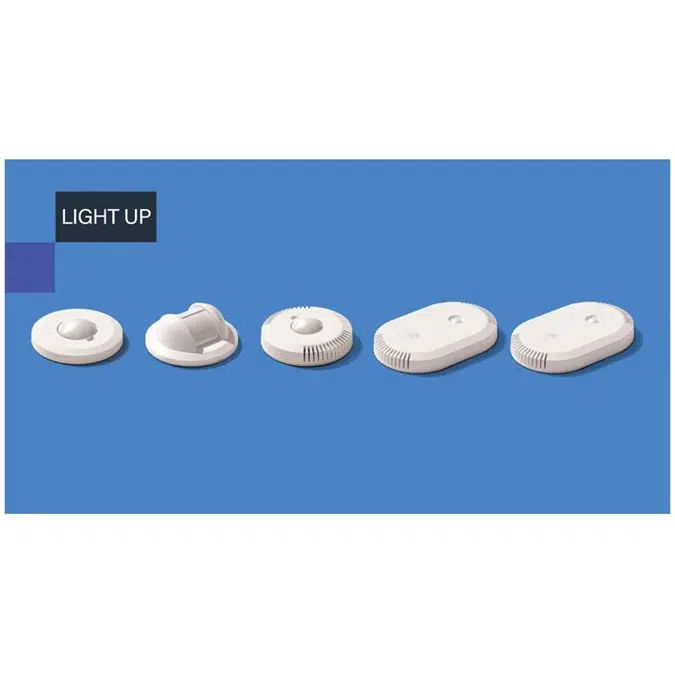

Light Up Sensors

Legrand Light Up is a scalable sensor range with a wide array of features, from lighting optimization to data collection. These new Light Up sensors can truly transform the user experience in remarkable ways. Thanks to presence, activity and environmental detection, they help improve the employees’ well-being as well as the energy performance in office spaces. 11 catalogue references  to meet wide-ranging needs.

• Quick and flexible installation
• Configuration via Bluetooth directly from your smartphone
• Updated version of your “Close UP” app
• Master-Slave application for larger rooms
• DALI Multicast 3 zones (board, window, and corridor group = 3 dim levels)
• Multicast offset to fulfill the needs precisely
• DALI 2.0 certified

The 3D models, available for Revit 2021 and later versions, consist of two downloadable files :

"Legrand_Digital_Management_Building_LIGHTUP_Data.rfa", including the PoE-powered sensor Activity :

Light Up Activity :

• POE for power and communication (MQTTS)
• It detects: presence, light level, humidity, temperature, sound level, and air quality, 8x8=64m² reach
• It counts and reports the number of persons in the room, "no face" recognition: no invasion of privacy
• It does not embed lighting control
• 1 Available version

"Legrand_Digital_Management_Building_LIGHTUP_Sensor.rfa", including all the 110-230VAC-powered sensors :

Light Up Occupancy :

• Light level and presence detection, 12m reach
• 3 Available versions: ON/OFF, DALI 1 zone & DALI 3 zones

Light Up Corridor :

• Light level and presence detection, 24m reach
• 3 Available versions: ON/OFF, DALI 1 zone & DALI 3 zones

Light Up Multisensor :

• It detects: presence, light level, humidity, temperature, sound level, and air quality, 12m reach
• 2 Available versions: DALI 1 zone & DALI 3 zones

Light Up Advanced :

• It detects: presence, light level, humidity, temperature, sound level, and air quality, 8x8=64m² reach
• It counts and reports the number of persons in the room, "no face" recognition: no invasion of privacy
• 2 Available versions: DALI 1 zone & DALI 3 zones

Click on the URL in the "links" tab below to go to your country website.
