    PANEL PROTECT 600 UGR<19 PS
    Product benefits
    • Suitable for use in applications where a higher IP and IK protection is needed
    • Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
    • Tool-free electrical connection due to push button connector
    • Through-wiring possible with included connector box
    • Energy savings thanks to high system efficacy: up to 140 lm/W
    • High color consistency with SDCM 3
    • Extended services such as energy monitoring and remote maintenance possible with DALI versions
    • Good glare reduction (UGR ≤ 19)
    • Extended heat resistance of the diffuser with up to 850° C
    • Suitable for battery emergency installations according to EN 60598-2-22
    • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
    • 5 years guarantee
    Product features
    • Type of protection: IP54 (frontside), IP20 (backside)
    • Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
    • Polycarbonate (PC) diffuser
    • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
    • Luminaire versions with IoT-ready DALI-2 driver available
    • Lifetime (L90/B10): 50,000 h (at 25° C)
    • Panel can be customized with optical sensors on individual request
    Areas of application
    • Direct replacement for luminaires with fluorescent lamps
    • Suitable for recessed ceiling systems with grid size of 600 x 600 mm

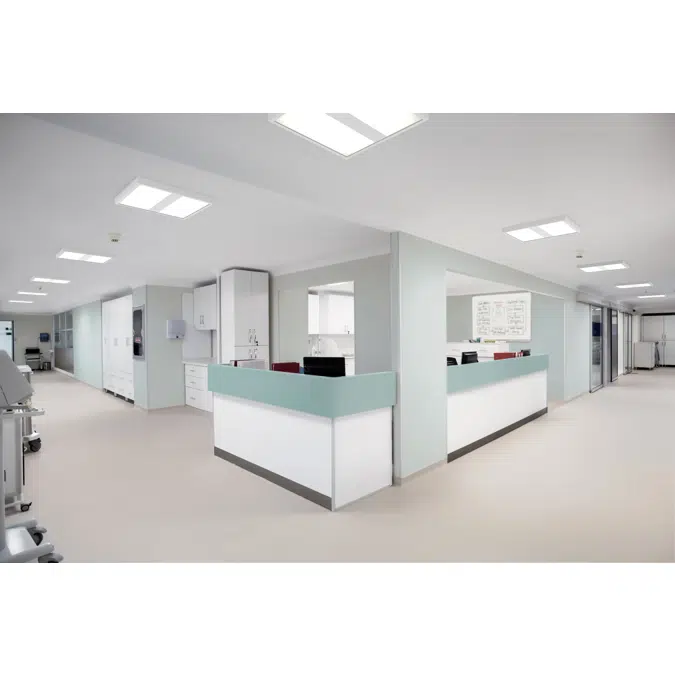

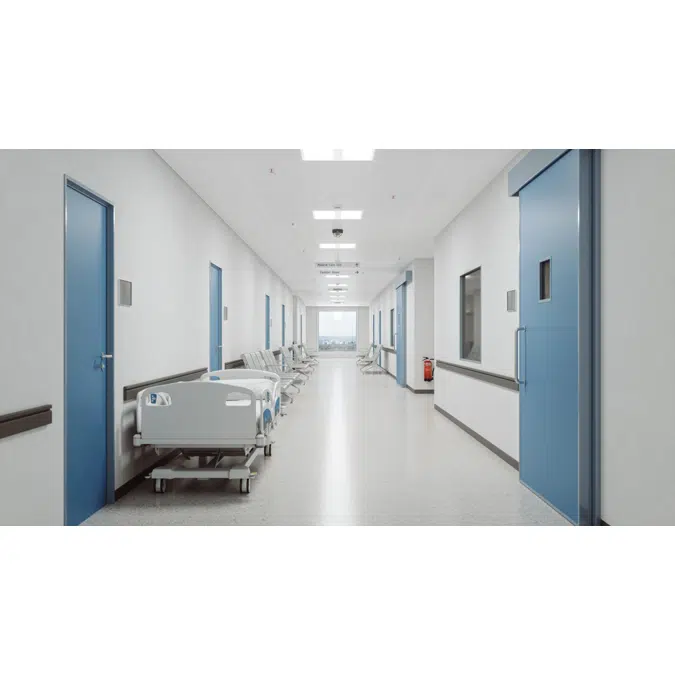

    • Hospitals
    • Laboratories
    • Kitchens, canteens, workspaces
    Equipment / Accessories
    • Accessories for several mounting options available
    • Connector box with 5-pole terminal pre-installed
    • Security rope for luminaire included
    • Security brackets preinstalled
    • External control gear included
    • Suitable for use with seperate Emergency Conversion Box
    • Special mounting frame with an overall height of only 50 mm available separately
    .

    PANEL PROTECT 600 PS
    Product benefits
    • Suitable for use in applications where a higher IP protection is needed
    • Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
    • Tool-free electrical connection due to push button connector
    • Through-wiring possible with included connector box
    • Energy savings thanks to high system efficacy: up to 140 lm/W
    • High color consistency with SDCM 3
    • Extended services such as energy monitoring and remote maintenance possible with DALI versions
    • External driver for extended flexibility and easy installation
    • Easy cleanable frontside thanks to the smooth PMMA surface of the diffuser
    • Suitable for battery emergency installations according to EN 60598-2-22
    • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
    • 5 years guarantee
    Product features
    • Type of protection: IP54 (frontside), IP20 (backside)
    • Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
    • PMMA diffuser
    • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
    • Luminaire versions with IoT-ready DALI-2 driver available
    • Lifetime (L90/B10): 50,000 h (at 25° C)
    • Panel can be customized with optical sensors on individual request
    Areas of application
    • Direct replacement for luminaires with fluorescent lamps
    • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
    • Hospitals
    • Laboratories
    • Kitchens, canteens, workspaces
    Equipment / Accessories
    • Accessories for several mounting options available
    • Connector box with 5-pole terminal pre-installed
    • Security rope for luminaire included
    • Security brackets preinstalled
    • External control gear included
    • Suitable for use with seperate Emergency Conversion Box
    • Special mounting frame with an overall height of only 50 mm available separately
    .

    PANEL PROTECT 600 DALI
    Product benefits
    • Suitable for use in applications where a higher IP protection is needed
    • Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
    • Tool-free electrical connection due to push button connector
    • Through-wiring possible with included connector box
    • Energy savings thanks to high system efficacy: up to 140 lm/W
    • High color consistency with SDCM 3
    • Extended services such as energy monitoring and remote maintenance possible with DALI versions
    • External driver for extended flexibility and easy installation
    • Easy cleanable frontside thanks to the smooth PMMA surface of the diffuser
    • Suitable for battery emergency installations according to EN 60598-2-22
    • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
    • 5 years guarantee
    Product features
    • Type of protection: IP54 (frontside), IP20 (backside)
    • Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
    • PMMA diffuser
    • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
    • Luminaire versions with IoT-ready DALI-2 driver available
    • Lifetime (L90/B10): 50,000 h (at 25° C)
    • Panel can be customized with optical sensors on individual request
    Areas of application
    • Direct replacement for luminaires with fluorescent lamps
    • Suitable for recessed ceiling systems with grid size of 625 x 625 mm
    • Hospitals
    • Laboratories
    • Kitchens, canteens, workspaces
    Equipment / Accessories
    • Accessories for several mounting options available
    • Connector box with 5-pole terminal pre-installed
    • Security brackets preinstalled
    • External control gear included
    • Suitable for use with seperate Emergency Conversion Box
    • Special mounting frame with an overall height of only 50 mm available separately
    .

    PANEL PROTECT 600 UGR<19 DALI
    Product benefits
    • Suitable for use in applications where a higher IP and IK protection is needed
    • Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
    • Tool-free electrical connection due to push button connector
    • Through-wiring possible with included connector box
    • Energy savings thanks to high system efficacy: up to 140 lm/W
    • High color consistency with SDCM 3
    • Extended services such as energy monitoring and remote maintenance possible with DALI versions
    • Good glare reduction (UGR ≤ 19)
    • Extended heat resistance of the diffuser with up to 850° C
    • Suitable for battery emergency installations according to EN 60598-2-22
    • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
    • 5 years guarantee
    Product features
    • Type of protection: IP54 (frontside), IP20 (backside)
    • Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
    • Polycarbonate (PC) diffuser
    • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
    • Luminaire versions with IoT-ready DALI-2 driver available
    • Lifetime (L90/B10): 50,000 h (at 25° C)
    • Panel can be customized with optical sensors on individual request
    Areas of application
    • Direct replacement for luminaires with fluorescent lamps
    • Suitable for recessed ceiling systems with grid size of 625 x 625 mm
    • Hospitals
    • Laboratories

    ... text truncated, BIMObject limit of 10,000 chars exceeded!
    You can find the full text on our website.
    For guarantee see www.ledvance.com/guarantee
    For this product family multiple variants might exist with specific properties!
    Please refer to the specification text where each product url is listed.
    Older generations of a product family can be accessed at our website https://www.ledvance.com.
    You need to use Revit 2021 or higher to use our Revit files.
    Contact: bim@ledvance.com
    Specification

    • Please note that the provided Revit-file can be valid for a product family!
      To access further product information, please follow the attached list of EAN-GTIN numbers.

      Product EAN-GTIN list:

      4099854083303 PL PROT 600 P 36W 840 U19 PS LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083303

      4099854082863 PL PROT 600 P 36W 830 PS LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854082863

      4099854082887 PL PROT 600 P 36W 840 PS LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854082887

      4099854082900 PL PROT 600 P 36W 830 DALIVR LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854082900

      4099854083105 PL PROT 600 P 36W 840 DALIVR LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083105

      4099854083327 PL PROT 600 P 36W 840 U19 DALIVR LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083327

      4099854083365 PL PROT 625 P 36W 830 PS LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083365

      4099854083389 PL PROT 625 P 36W 840 PS LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083389

      4099854083488 PL PROT 625 P 36W 840 U19 PS LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083488

      4099854083402 PL PROT 625 P 36W 830 DALIVR LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083402

      4099854083440 PL PROT 625 P 36W 840 DALIVR LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083440

      4099854083501 PL PROT 625 P 36W 840 U19 DALIVR LEDV
      • Catalog:
      https://www.ledvance.com/shortlink/4099854083501
    Technical specification
    • Unique ref.Panel-Protect
    • Product familyProfessional luminaires
    • Product groupPanel
    • TypeObject (single object)
    • Date of publishing2023-11-15
    • Edition number1
    Links
    Related
    • Material mainSteel
    • Manufactured inChina
    Classification
    • BIMobject CategoryLighting - Other
    • ETIM CodeEC002892
    • ETIM NameCeiling-/wall luminaire
