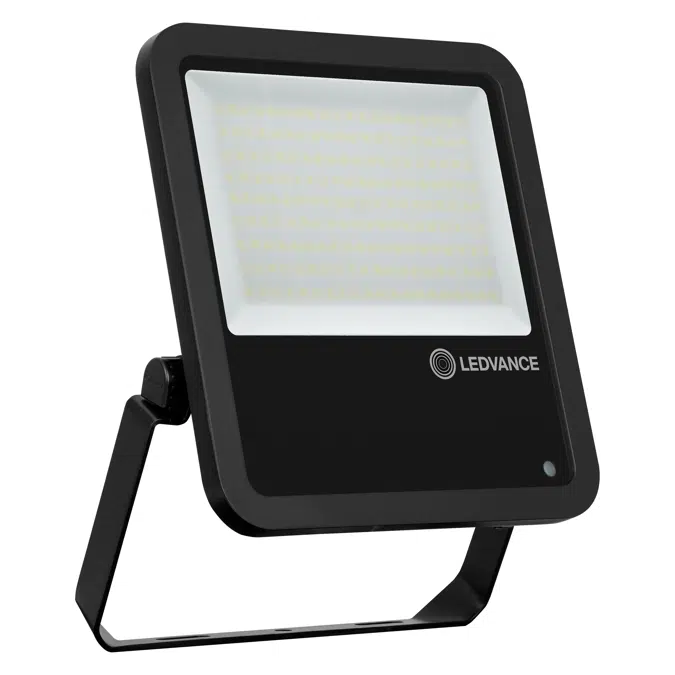

Floodlight Photocell Gen 3

FLOODLIGHT PHOTOCELL 125 W
Product benefits

Bright, robust and durable

Automatically switches on and off according to the amount of available daylight

Always-on override, activated via special mains switching pattern

Safe and very uniform illumination, due to frosted and tempered glass diffuser

No upper light output ratio (ULOR 0%) when mounted at 0° tilt

Energy savings of up to 90 % compared to halogen lamp floodlights

5 years guarantee

Product features

Daylight sensor, integrated in glass cover

Switch on below 35 lux, switch off above 95 lux illuminance

Reflector-based, symmetric light distribution with 100° x 100° beam angle

Integrated wide voltage driver, suitable for 100 - 277 V AC

Surge protection: up to 6 kV (L/N-PE), 4 kV (L-N)

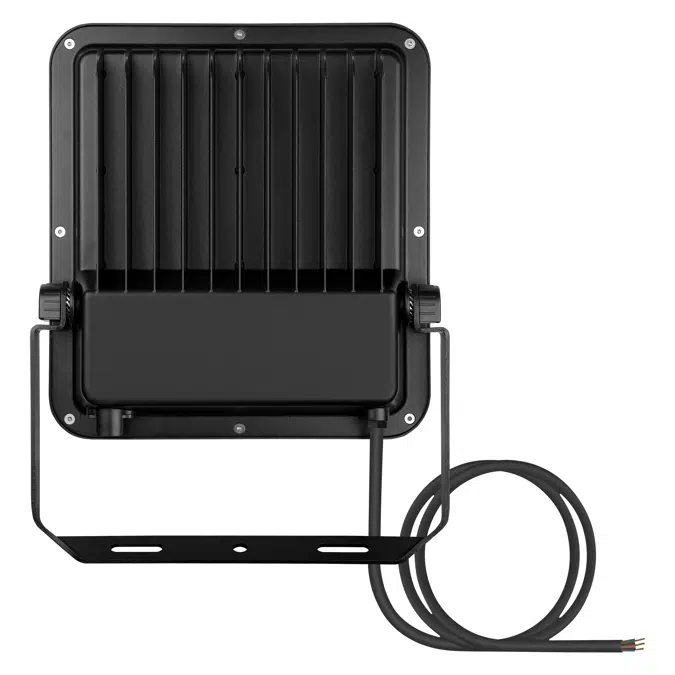

Mounting bracket with 30° angle and wide rotation area

Breather membrane to optimize air exchange, without compromising IP protection

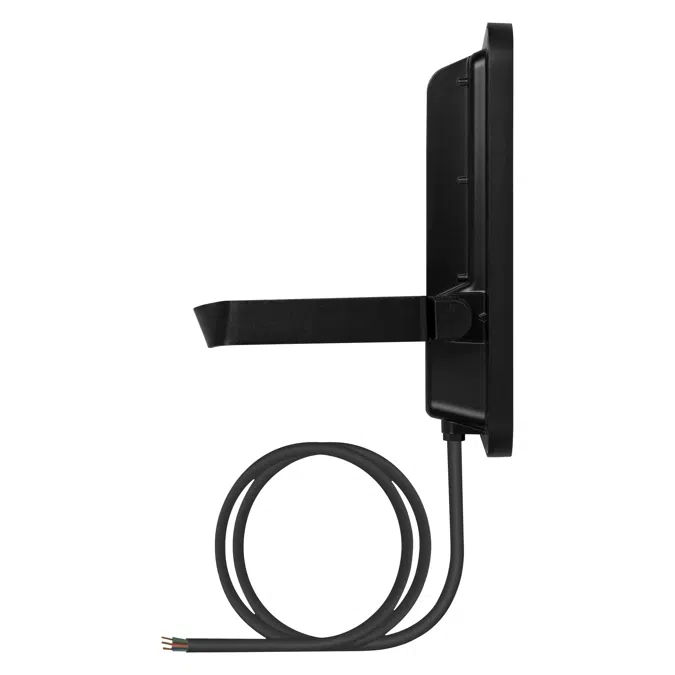

Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

Areas of application

Replacement for floodlights with halogen lamps

Outdoor use (IP65)

Industry

Public areas

Construction areas

Building facades

.

FLOODLIGHT PHOTOCELL 200 W
Product benefits

Bright, robust and durable

Automatically switches on and off according to the amount of available daylight

Always-on override, activated via special mains switching pattern

Safe and very uniform illumination, due to frosted and tempered glass diffuser

No upper light output ratio (ULOR 0%) when mounted at 0° tilt

Energy savings of up to 90 % compared to halogen lamp floodlights

5 years guarantee

Product features

Daylight sensor, integrated in glass cover

Switch on below 35 lux, switch off above 95 lux illuminance

Reflector-based, symmetric light distribution with 100° x 100° beam angle

Integrated wide voltage driver, suitable for 100 - 277 V AC

Surge protection: up to 6 kV (L/N-PE), 4 kV (L-N)

Mounting bracket with 30° angle and wide rotation area

Breather membrane to optimize air exchange, without compromising IP protection

Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

Areas of application

Replacement for floodlights with halogen lamps

Outdoor use (IP65)

Industry

Public areas

Construction areas

Building facades

.

For guarantee see www.ledvance.com/guarantee
For this product family multiple variants might exist with specific properties!
Please refer to the specification text where each product url is listed.
Older generations of a product family can be accessed at our website https://www.ledvance.com.
You need to use Revit 2021 or higher to use our Revit files.
Contact: bim@ledvance.com

Specification

Please note that the provided Revit-file can be valid for a product family!
To access further product information, please follow the attached list of EAN-GTIN numbers.
Product EAN-GTIN list:

4058075461161 FL PFM125W-4000K SYM100SL BK LEDV
- Catalog:
https://www.ledvance.com/shortlink/4058075461161

4058075461208 FL PFM200W-4000K SYM100SL BK LEDV
- Catalog:
https://www.ledvance.com/shortlink/4058075461208
