WSMB-Bogen 90° 200 x 60 A4, 1.4404

WSMB-Bogen 90° 200 x 60 A4, 1.4404

lanz oensingen ag

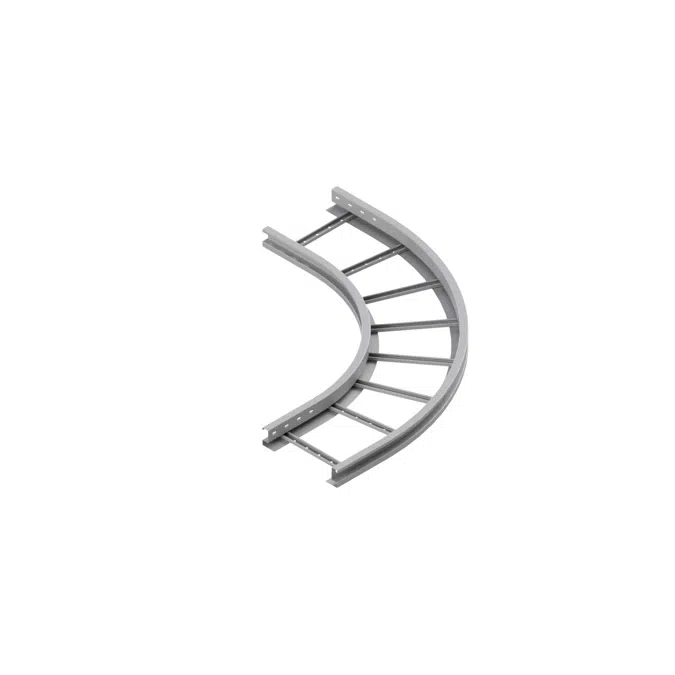

WSMB-Bogen 90° 200 x 60 A4, 1.4404

Zur Verwendung für grosse Radien. Sprossen aus C-Profil mit Sprossenabstand 150mm. Rostfreier Stahl.

Varianten

WSMB-Bogen 90° 300 x 60 A4, 1.4404 (Art.Nr: 322308)
WSMB-Bogen 90° 600 x 60 A4, 1.4404 (Art.Nr: 322311)
WSMB-Bogen 90° 500 x 60 A4, 1.4404 (Art.Nr: 322310)
WSMB-Bogen 90° 400 x 60 A4, 1.4404 (Art.Nr: 322309)

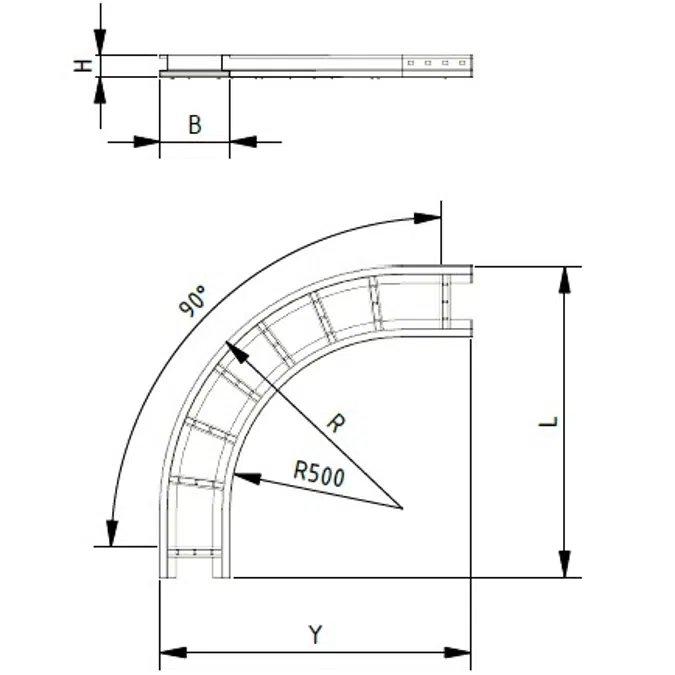

Specification

Art.Nr 322307
ELDAS®-Nr -
Werkstoff Rostfreier Stahl - 1.4404
Länge 907 mm
Breite 907 mm
Höhe 60 mm
Gewicht 5.964 kg
Blechstärke 1.5 mm
Sprossenabstand 157 mm
Varianten
WSMB-Bogen 90° 300 x 60 A4, 1.4404
Art.Nr: 322308 | Breite: 1007 mm | Höhe: 60 mm | Gewicht: 6.629 kg
WSMB-Bogen 90° 600 x 60 A4, 1.4404
Art.Nr: 322311 | Breite: 1307 mm | Höhe: 60 mm | Gewicht: 8.626 kg
WSMB-Bogen 90° 500 x 60 A4, 1.4404
Art.Nr: 322310 | Breite: 1207 mm | Höhe: 60 mm | Gewicht: 7.96 kg
WSMB-Bogen 90° 400 x 60 A4, 1.4404
Art.Nr: 322309 | Breite: 1107 mm | Höhe: 60 mm | Gewicht: 7.295 kg

Technical specification

Unique ref.322307
TypeAssembly (multiple objects)
Edition number1
Height (mm)60
Width (mm)907
Depth (mm)907

Links

Product urlhttps://lanz-oens.ch/de/p/wsmb-bogen-90-200-x-60-a4-322307

Related

Material mainStainless steel
Designed inSwitzerland
Manufactured inSwitzerland
Weight Net (Kg)5.964

Classification

BIMobject CategoryElectrical - Distribution

Region availability

Europe
Austria
Germany
Switzerland
