Weitspann-Multibahn 200 x 60 Abstand 150 A4, 1.4404

Weitspann-Multibahn 200 x 60 Abstand 150 A4, 1.4404

lanz oensingen ag

Weitspann-Multibahn 200 x 60 Abstand 150 A4, 1.4404

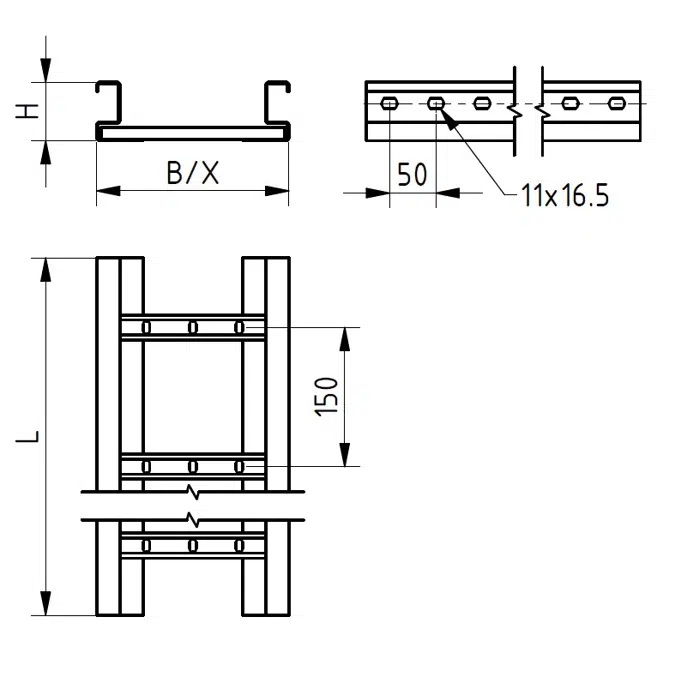

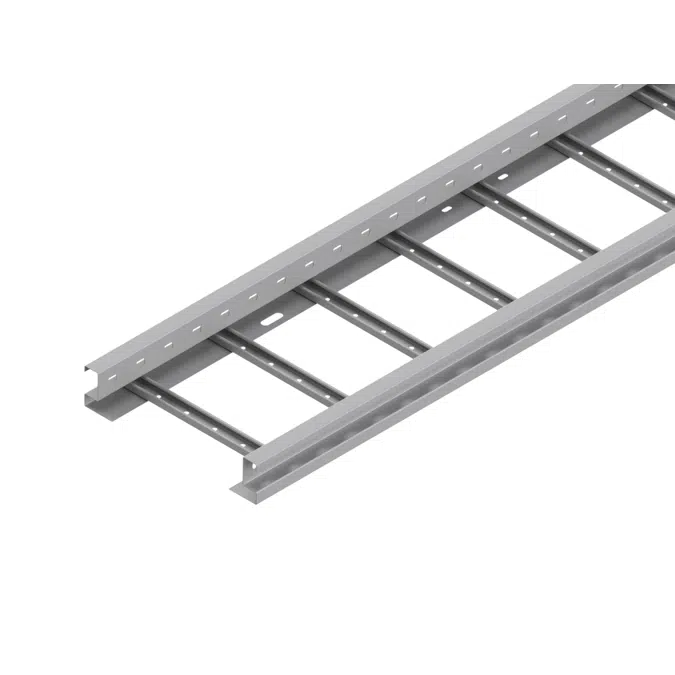

Weitspann-Multibahn mit Seitenwandlochung und C-Profil Sprossen. Rostfreier Stahl.

Varianten

Weitspann-Multibahn 600 x 60 Abstand 150 A4, 1.4404 (Art.Nr: 322304)
Weitspann-Multibahn 500 x 60 Abstand 150 A4, 1.4404 (Art.Nr: 322303)
Weitspann-Multibahn 400 x 60 Abstand 150 A4, 1.4404 (Art.Nr: 322302)
Weitspann-Multibahn 300 x 60 Abstand 150 A4, 1.4404 (Art.Nr: 322301)

Specification

Art.Nr 322300
ELDAS®-Nr -
Werkstoff Rostfreier Stahl - 1.4404
Länge 3000 mm
Breite 207 mm
Höhe 60 mm
Gewicht 11.2 kg
Blechstärke 1.5 mm
Sprossenabstand 150 mm
Varianten
Weitspann-Multibahn 600 x 60 Abstand 150 A4, 1.4404
Art.Nr: 322304 | Breite: 607 mm | Höhe: 60 mm | Gewicht: 14.8 kg
Weitspann-Multibahn 500 x 60 Abstand 150 A4, 1.4404
Art.Nr: 322303 | Breite: 507 mm | Höhe: 60 mm | Gewicht: 13.9 kg
Weitspann-Multibahn 400 x 60 Abstand 150 A4, 1.4404
Art.Nr: 322302 | ELDAS®-Nr: - | Breite: 407 mm | Höhe: 60 mm | Gewicht: 13 kg
Weitspann-Multibahn 300 x 60 Abstand 150 A4, 1.4404
Art.Nr: 322301 | Breite: 307 mm | Höhe: 60 mm | Gewicht: 12.1 kg

Technical specification

Unique ref.322300
TypeAssembly (multiple objects)
Edition number1
Height (mm)60
Width (mm)207
Depth (mm)3000

Links

Product urlhttps://lanz-oens.ch/de/p/weitspann-multibahn-200-x-60-abstand-150-a4-322300

Related

Material mainStainless steel
Designed inSwitzerland
Manufactured inSwitzerland
Weight Net (Kg)11.2

Classification

BIMobject CategoryElectrical - Distribution

Region availability

Europe
Austria
Germany
Switzerland
