4-Loch-Kopfplatte fvz

4-Loch-Kopfplatte fvz

lanz oensingen ag

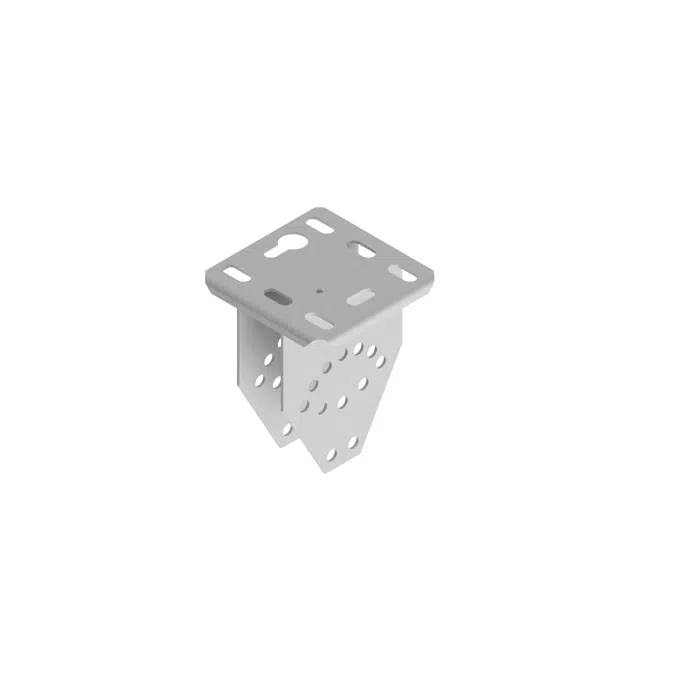

4-Loch-Kopfplatte fvz

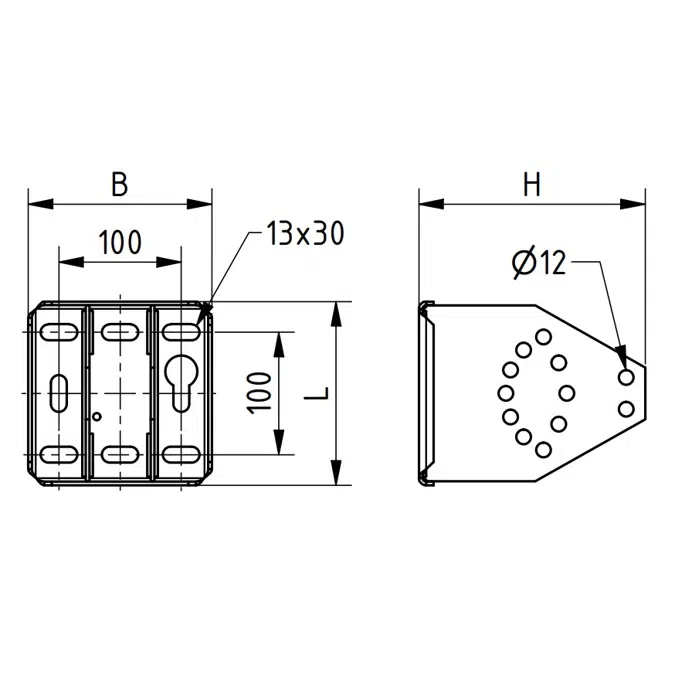

Kopfplatte winkelverstellbar, 0, 7.5°, 15°, 22.5°, 30,°, 45°, 67.5°. Für Tragkonstruktionen mit U- und Mulitix Profilen. Befestigung der Profile mittels 2 Schraubengarnituren M10x70, Art. Nr. 309517 mit Distanzhülsen, separat bestellen.

Specification

Art.Nr 309880

ELDAS®-Nr -

Werkstoff Stahl - DD11

Länge 150 mm

Breite 150 mm

Höhe 185 mm

Gewicht 1.479 kg

Technical specification

Unique ref.309880
TypeObject (single object)
Edition number1
Height (mm)185
Width (mm)150
Depth (mm)150

Links

Product urlhttps://lanz-oens.ch/de/p/4-loch-kopfplatte-fvz-309880

Related

Material mainSteel
Designed inSwitzerland
Manufactured inSwitzerland
Weight Net (Kg)1.479

Classification

BIMobject CategoryElectrical - Distribution

Region availability

Europe
Austria
Germany
Switzerland
