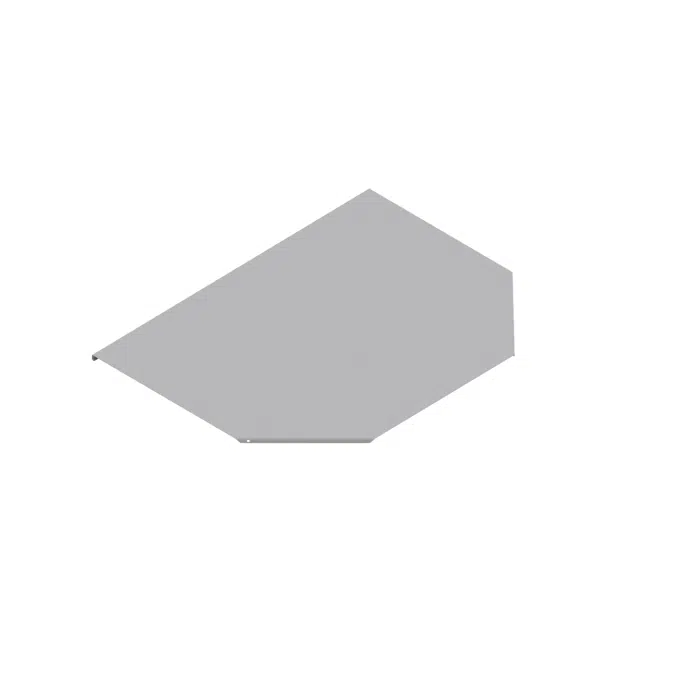

Deckel zu T-Stück 100 x 110 ZMA

Deckel zu T-Stück 100 x 110 ZMA

lanz oensingen ag

Deckel zu T-Stück 100 x 110 ZMA

Schutz der Kabel vor Beschädigungen und Schmutz. Zusätzliche Sicherung durch Halteklammern bei vertikaler Installation.

Varianten

Deckel zu T-Stück 500 x 110 ZMA (Art.Nr: 307395)
Deckel zu T-Stück 600 x 110 ZMA (Art.Nr: 307396)
Deckel zu T-Stück 400 x 110 ZMA (Art.Nr: 307394)
Deckel zu T-Stück 300 x 110 ZMA (Art.Nr: 307393)
Deckel zu T-Stück 200 x 110 ZMA (Art.Nr: 307392)

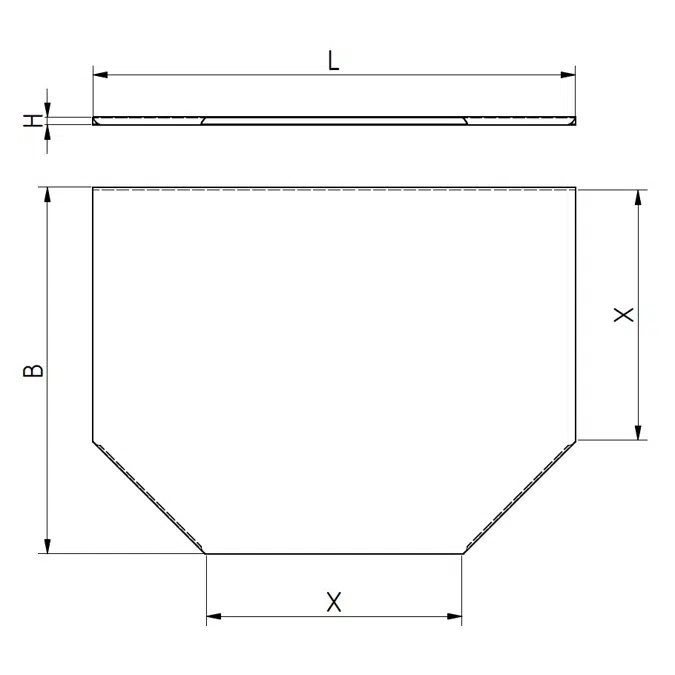

Specification

Art.Nr 307391
ELDAS®-Nr 127005606
Werkstoff Stahl - S250GD
Länge 550 mm
Breite 345 mm
Höhe 14 mm
Gewicht 1.301 kg
Blechstärke 1 mm
Varianten
Deckel zu T-Stück 500 x 110 ZMA
Art.Nr: 307395 | ELDAS®-Nr: 127005646 | Breite: 745 mm | Höhe: 14 mm | Gewicht: 5.328 kg
Deckel zu T-Stück 600 x 110 ZMA
Art.Nr: 307396 | ELDAS®-Nr: 127005656 | Breite: 845 mm | Höhe: 14 mm | Gewicht: 6.83 kg
Deckel zu T-Stück 400 x 110 ZMA
Art.Nr: 307394 | ELDAS®-Nr: 127005636 | Breite: 645 mm | Höhe: 14 mm | Gewicht: 4.084 kg
Deckel zu T-Stück 300 x 110 ZMA
Art.Nr: 307393 | ELDAS®-Nr: 127005626 | Breite: 545 mm | Höhe: 14 mm | Gewicht: 3.042 kg
Deckel zu T-Stück 200 x 110 ZMA
Art.Nr: 307392 | ELDAS®-Nr: 127005616 | Breite: 445 mm | Höhe: 14 mm | Gewicht: 2.093 kg

Technical specification

Unique ref.307391
TypeAssembly (multiple objects)
Edition number1
Height (mm)14
Width (mm)345
Depth (mm)550

Links

Product urlhttps://lanz-oens.ch/de/p/deckel-zu-t-stuck-100-x-110-zma-307391

Related

Material mainSteel
Designed inSwitzerland
Manufactured inSwitzerland
Weight Net (Kg)1.301

Classification

BIMobject CategoryElectrical - Distribution

Region availability

Europe
Austria
Germany
Switzerland
