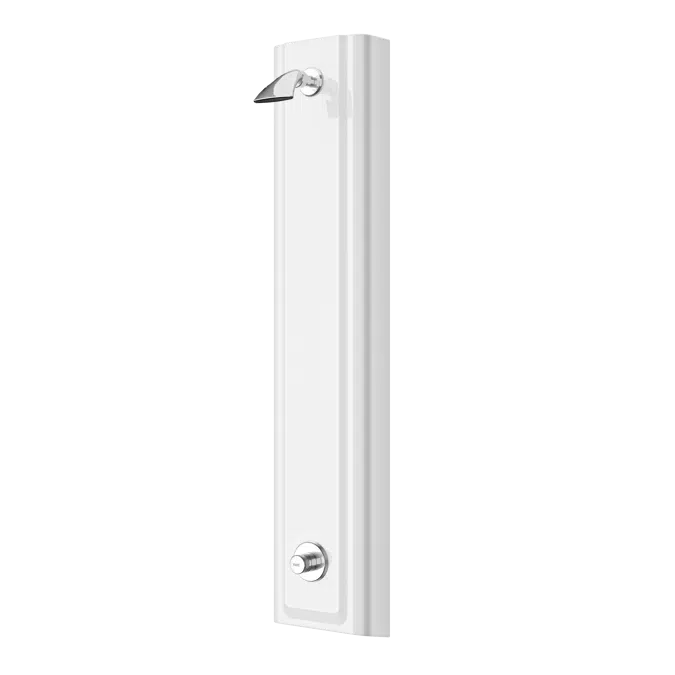

F3S Shower panel made of MIRANIT with waterfall shower F3SV2016

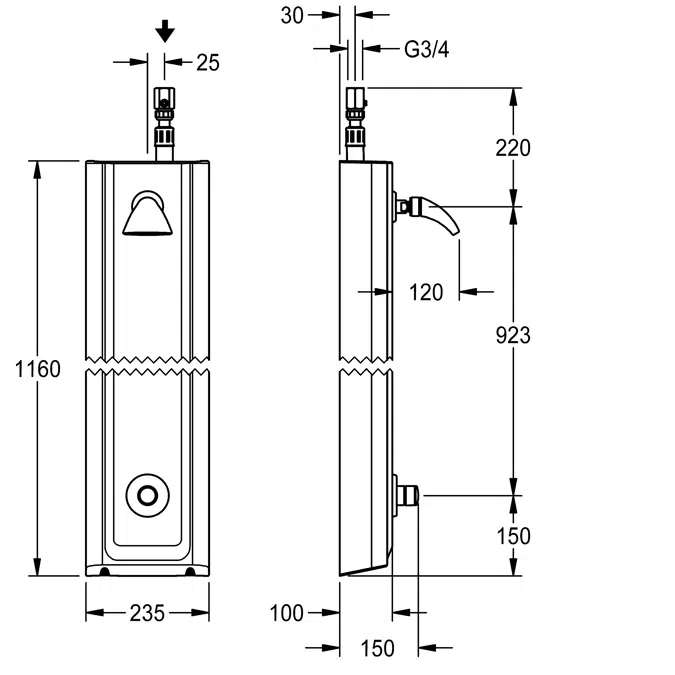

F3S shower panel made of mineral material for wall mounting with DN 20 self-closing gate valve and waterfall shower. Hydraulically controlled, for connection from above to pre-mixed hot or cold water. Self-closing functional part, piston-free design, self-closing and stepless adjustment of flow duration. Valve housing including shuttle valve seat, visible parts polished chrome-plated. DN 15 waterfall shower with ball joint and rosette. Adjustable jet tilt angle 28°. Polished chromium-plated brass. Housing with raised function surface made of MIRANIT resin-bonded mineral material with pore-free smooth surface (temperature-resistant up to 80 °C), Alpine white colour. Connecting hose with lockable water flow regulator and strainer. Dimensions of housing 235 x 1160 x 100 mm (W x H x D)

Specification

additional connections	no
with backflow preventer	no
circulation	no
compatible A3000 open	no
connection with pay water dispenser	not possible
with filter	yes
adjustable flow time	yes
functional principle	hydraulic self-closing
for hand shower	no
hygiene flushing	no
diameter nominal	DN 20
inlet size	DN 20
locking mechanism	Top section, non-ceramic
material casing	mineral material
material code casing	Miranit
material fitting	brass-look
maximum flow time	30 Seconds
minimum flow pressure	1 bar
minimum flow time	5 Seconds
type of mixing	no
overall depth	100 mm
overall height	1,160 mm
overall width	235 mm
with rosettes/cover plate	yes
protective shutdown	no
shower pipe draining	no
shower head	with shower head
with shower set	no
sound insulation	no
surface finish fitting	chromed
surface treatment fitting	polished
temperature limit	no
thermal disinfection	no
adjustable tilt angle	yes
type of mounting	wall mounting
type of operation	manual operation
type of shower	shower panel
type of shower head	drench shower head
volume flow rate at 3 bar	0.98 l/s
water connection	hose (gland nut)
position of water connection	above
with soap dish	no
accent colour	chrome-look (glossy)
basic colour	white

Technical specification

Unique ref.3600007159
Product familyShowers
Product groupSelf closing showers
TypeObject (single object)
Date of publishing2026-02-06
Edition number1
Height (mm)1160
Width (mm)235
Depth (mm)100

Links

Product urlhttps://kwc-professional.com/en/and-nbsp_p3600007159

Material mainMineral
Material secondaryBrass
Designed inGermany
Manufactured inGermany
Weight Net (Kg)10.3

Classification

BIMobject CategorySanitary - Showers
Uniclass 2015 CodePr_40_20_87_75
Uniclass 2015 DescriptionShower fittings package
