MEDCARE 90° angled grab rail MEDC0007
MEDCARE 90° angled grab rail MEDC0007
    KWC Group Management AG

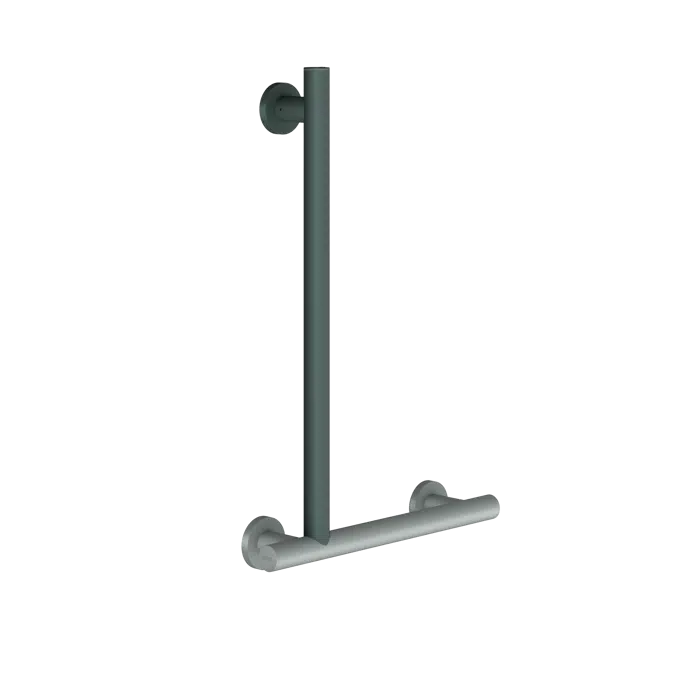

    MEDCARE 90° angled grab rail MEDC0007

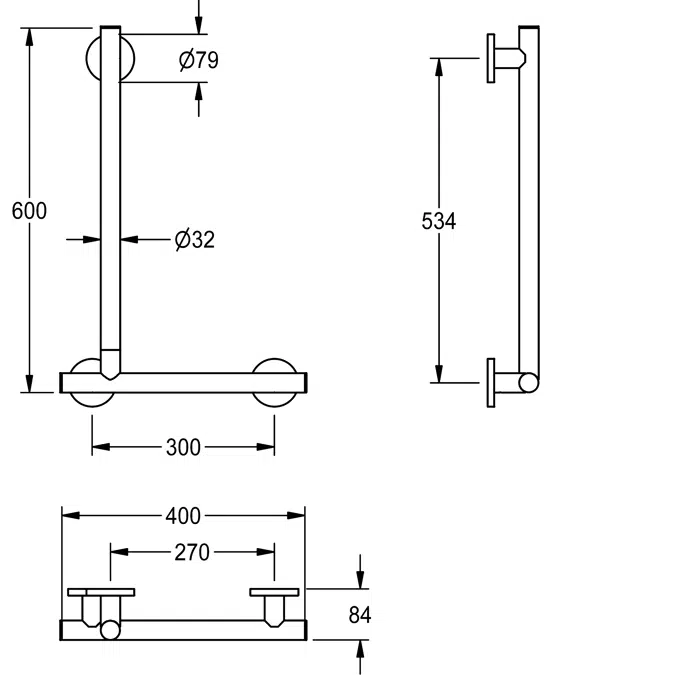

    MEDCARE 90° angled grab rail for wall mounting, stainless steel, basalt grey coated surface, 32 mm pipe diameter, 1.5 mm material thickness, 84 mm wall clearance, with plastic end caps, concealed mounting via stainless steel cylinders and rosettes, including mounting material. Right-hand version Dimensions 400 x 600 x 84 mm (W x H x D)
    Specification
    • back no
      direction right
      material stainless steel
      material code 1.4301 Chrome Nickel steel V2A
      overall depth 84 mm
      overall height 623 mm
      overall width 406 mm
      pipe diameter32 mm
      surface finish satin finished
      type of fixing screw
      type of grab rail angle bar
      type of mounting wall mounting
    Technical specification
    • Unique ref.3600003775
    • Product familyGrab rails
    • Product groupGrab rails
    • TypeObject (single object)
    • Date of publishing2025-07-22
    • Edition number1
    • Height (mm)623
    • Width (mm)406
    • Depth (mm)84
    Links
    Related
    • Material mainStainless steel
    • Material secondaryPlastic
    • Designed inItaly
    • Manufactured inItaly
    • Weight Net (Kg)1.4
    Classification
    • BIMobject CategorySanitary - Bathroom Accessories
    • Uniclass 2015 CodePr_40_20_76_84
    • Uniclass 2015 DescriptionSupport rails
