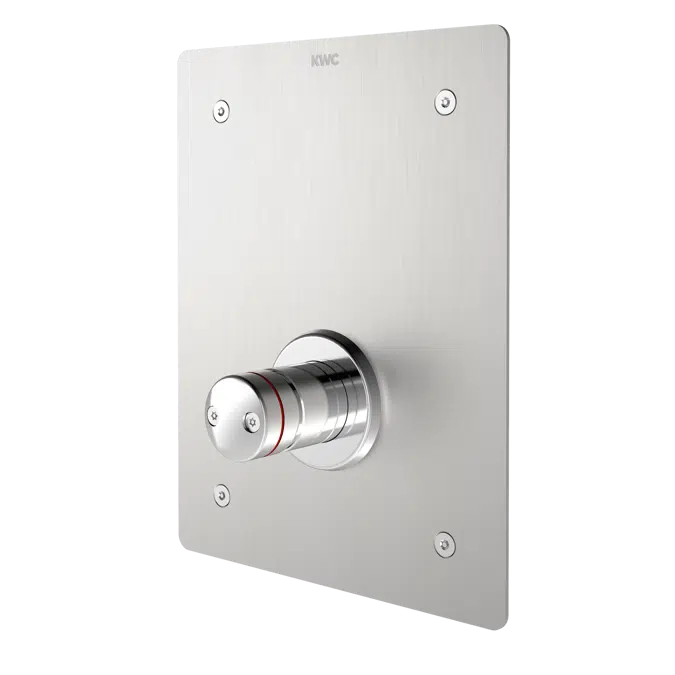

F3S Self-closing shower F3SV2011

F3S self-closing straight-way valve DN 15 as finished installation kit for in-wall installation in basic installation kit, for shower facilities. Especially suitable for facilities at risk of vandalism. Self-closing functional part, hydraulically controlled, piston-free design, self-closing, continuously adjustable flow duration. For connection to pre-mixed hot water or cold water. Housing including shuttle valve seat, pressure cap with safety screws, visible parts, polished chromium-plated brass. Stainless steel cover plate 190 x 245 x 2 mm, mounting from the front with safety screws and rosette. Depth adjustability 20 mm.

Specification

additional connections	no
with backflow preventer	no
built-in fitting model	Finishing section
circulation	no
connection with pay water dispenser	not possible

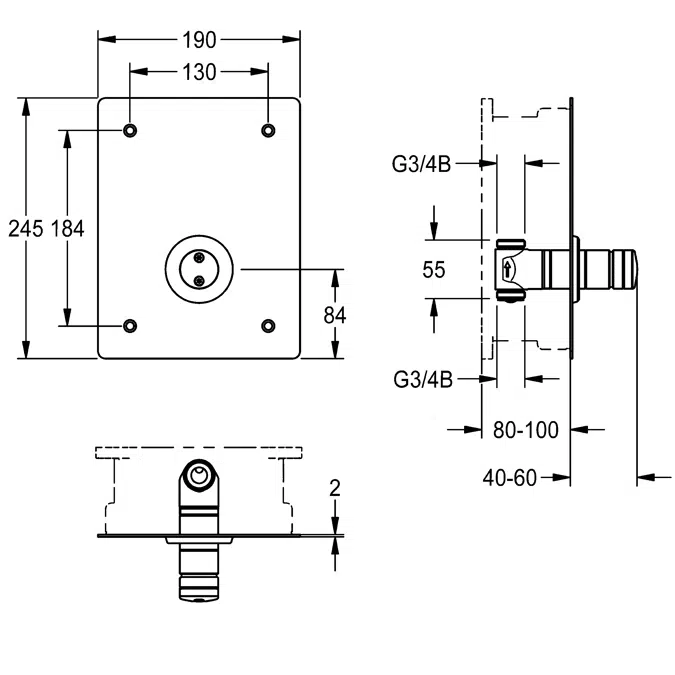

cover plate height	245 mm
cover plate width	190 mm
with filter	yes
adjustable flow time	yes
functional principle	hydraulic self-closing
for hand shower	no
hygiene flushing	no
diameter nominal	DN 15
inlet size	G 3/4 B
locking mechanism	Top section, non-ceramic
material casing	stainless steel
material fitting	brass-look
maximum flow time	35 Seconds
minimum flow pressure	1 bar
minimum flow time	5 Seconds
type of mixing	no
with rosettes/cover plate	yes
protective shutdown	no
shower pipe draining	no
sound insulation	no
surface finish casing	satin finished
surface finish fitting	chromed
surface treatment fitting	polished
temperature limit	no
thermal disinfection	no
type of mounting	in-wall installation with box
type of operation	manual operation
type of shower	in-wall fitting
volume flow rate at 3 bar	0.4 l/s
water connection	threaded connection (external)
accent colour	chrome-look (glossy)
basic colour	stainless steel-look

Technical specification

Unique ref.2030068215
Product familyShowers
Product groupSelf closing showers
TypeObject (single object)
Date of publishing2025-06-11
Edition number1
Height (mm)245
Width (mm)190

Links

Product urlhttps://kwc-professional.com/en/and-nbsp_p2030068215

Material mainStainless steel
Material secondaryBrass
Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.55

Classification

BIMobject CategorySanitary - Showers
Uniclass 2015 CodePr_40_20_87_75
Uniclass 2015 DescriptionShower fittings package
