F3S WC flush valve F3SF4002

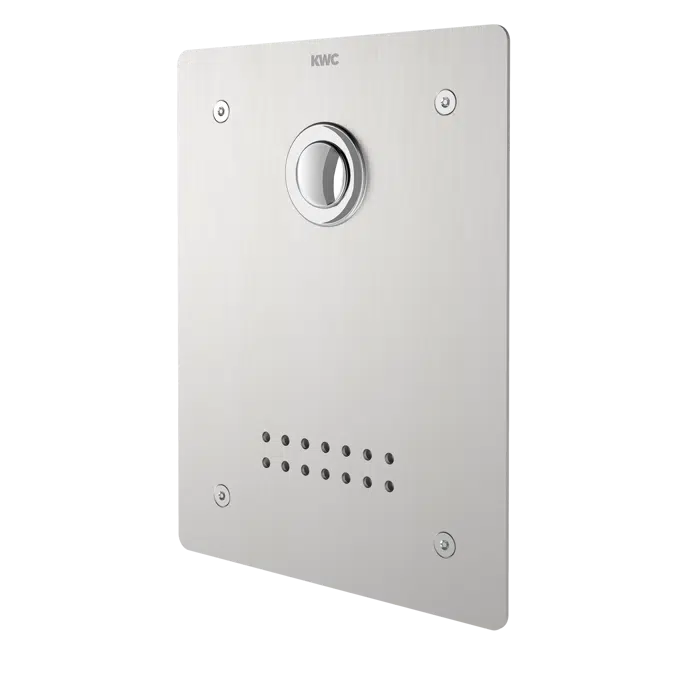

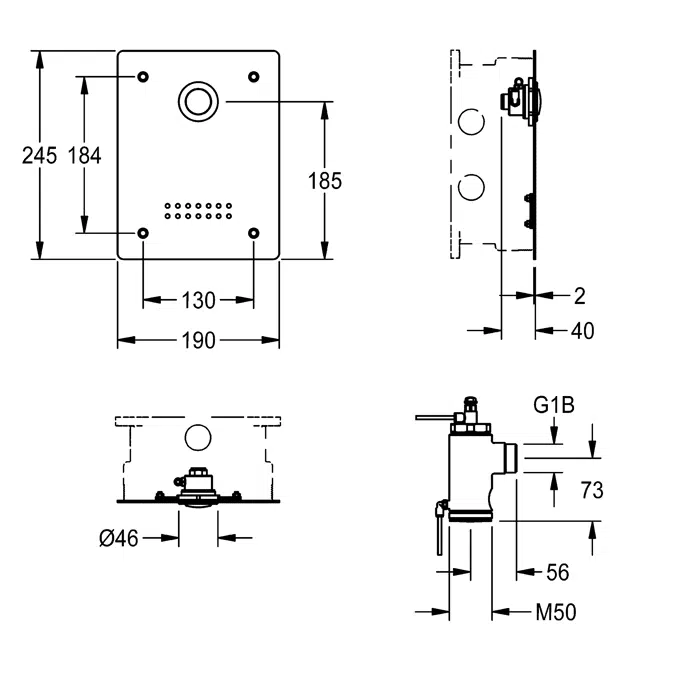

F3S WC flush valve DN 20 as a finished installation kit for in-wall installation in the basic installation kit, for wall-mounted toilet bowls, fitting group 1. Especially suitable for facilities at risk of vandalism. Self-closing upper component hydraulically controlled, piston-free design, automatic and backlash-free closing. Automatic flush flow regulation and adjustable flush water volume. All-metal construction, visible parts polished chromium-plated. Stainless steel cover plate 190 x 245 x 2 mm, mounting from the front with safety screws, pre-mounted push-button actuation. Hydraulic control lines and mounting material. Depth adjustability 20 mm.

Specification

built-in fitting model	Finishing section
calculation flow rate cold water	1 l/s
cover plate height	245 mm
cover plate width	190 mm
flushing volume adjustable	yes
functional principle	hydraulic self-closing
diameter nominal	DN 20
material casing	stainless steel
material code casing	1.4301 Chrome Nickel steel V2A
material fitting	brass-look
maximum flow pressure	4 bar
maximum flushing flow	1.3 l/s
minimum flow pressure	1.2 bar
minimum flushing flow	1 l/s
parameterization	manual
protective shutdown	no
sound insulation	I-
surface finish casing	satin finished
surface finish fitting	raw
type of flushing fitting	WC flush valve
type of mounting	in-wall installation with box
type of operation	manual operation
water connection	threaded connection (external)
basic colour	stainless steel-look

Technical specification

Unique ref.2030068201
Product familyFlushing systems
Product groupSelf closing WC flushing systems
TypeObject (single object)
Date of publishing2025-06-11
Edition number1
Height (mm)245
Width (mm)190

Links

Product urlhttps://kwc-professional.com/en/and-nbsp_p2030068201

Material mainStainless steel
Material secondaryBrass
Designed inGermany
Manufactured inGermany
Weight Net (Kg)2.28

Classification

BIMobject CategorySanitary - Installation Systems
Uniclass 2015 CodePr_75_50_46_31
Uniclass 2015 DescriptionFlush control devices
