F3S WC flushing valve F3SF4001

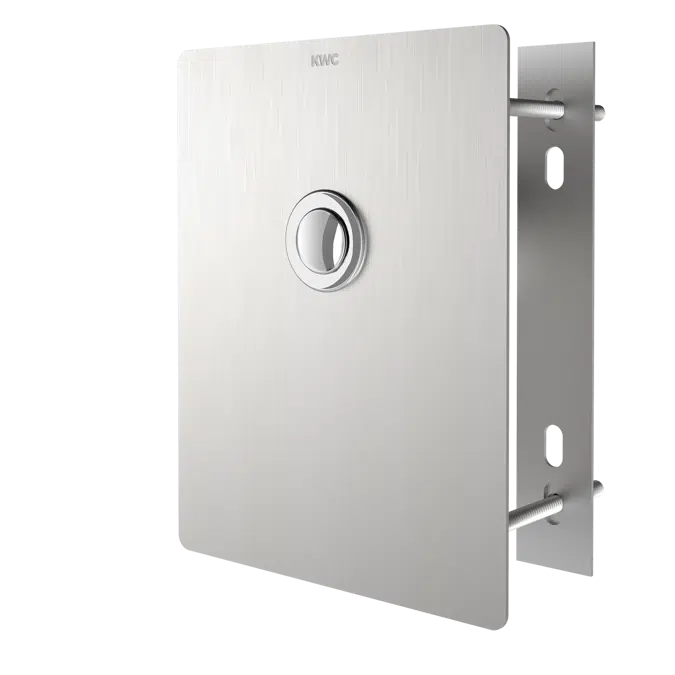

F3S WC flushing valve DN 20, for wall-mounted toilet bowls, fitting group 1, with remote control for concealed mounting. Especially suitable for facilities at risk of vandalism. Self-closing upper component for remote operation, hydraulically controlled, piston-free design, automatic and backlash-free closing. Automatic flush flow regulation and adjustable flush water volume. Flush valve complete with flush pipe connection and screw connection. All-metal construction, visible parts polished chromium-plated. Stainless steel cover plate 190 x 245 x 2 mm for invisible mounting via threaded rods, up to a wall thickness of 50 to 500 mm, pre-mounted push-button actuation, flush-mounted box. Hydraulic control lines and empty conduit (2 m) and mounting material. Connection and maintenance via service room.

Specification

cover plate height	245 mm
cover plate width	190 mm
functional principle	hydraulic self-closing
diameter nominal	DN 20
material casing	stainless steel
material code casing	1.4301 Chrome Nickel steel V2A
material fitting	brass-look
protective shutdown	no
surface finish casing	satin finished
type of flushing fitting	WC flush valve
type of mounting	concealed
type of operation	manual operation
basic colour	stainless steel-look

Technical specification

Unique ref.2030068191
Product familyFlushing systems
Product groupSelf closing WC flushing systems
TypeObject (single object)
Date of publishing2025-06-11
Edition number1
Height (mm)245
Width (mm)190

Links

Product urlhttps://kwc-professional.com/en/and-nbsp_p2030068191

Material mainStainless steel
Material secondaryBrass
Designed inGermany
Manufactured inGermany
Weight Net (Kg)3.2

Classification

BIMobject CategorySanitary - Installation Systems
Uniclass 2015 CodePr_75_50_46_31
Uniclass 2015 DescriptionFlush control devices
