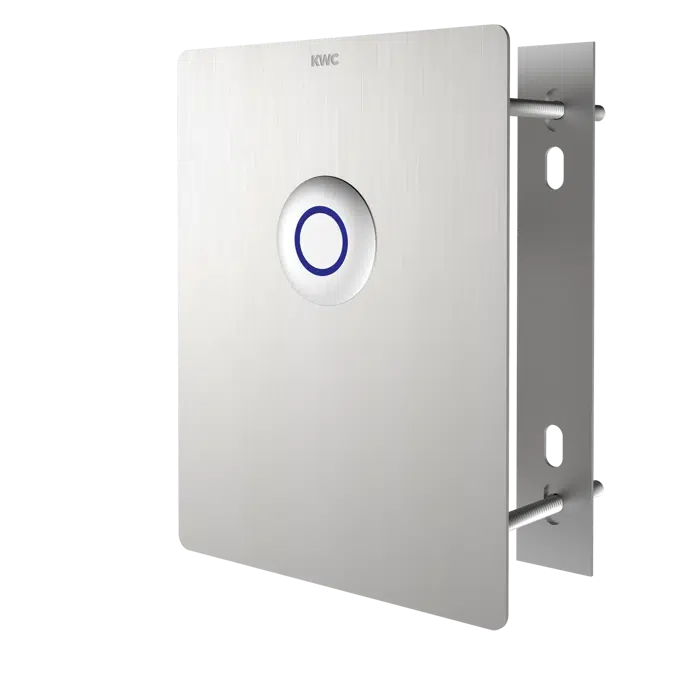

F5E Electronic WC control F5EF4003

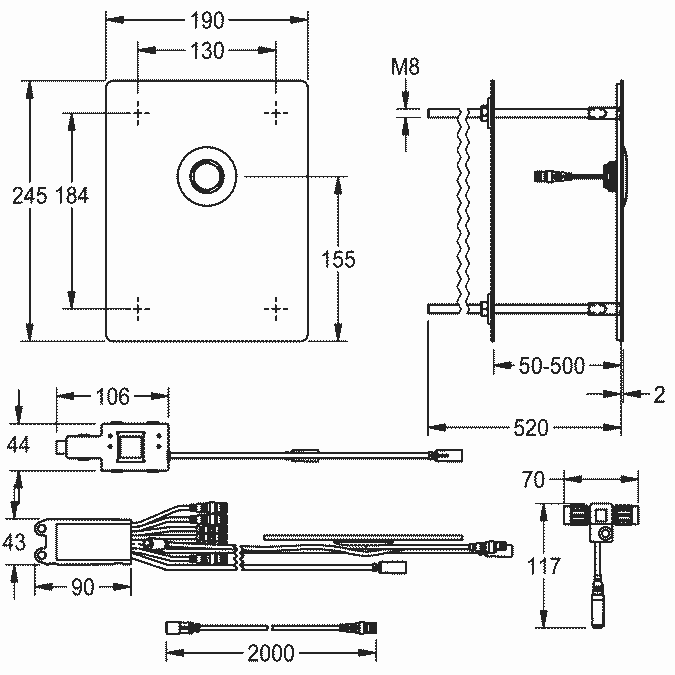

F5E - A3000 open WC control unit for cistern for concealed mounting, electronically controlled. Especially suitable for facilities at risk of vandalism. With waterproof electronic module with additional input for sensors to be provided by the client, maximum distance to electronic module 5 m, servomotor unit, two waterproof electric T-junctions for connection to system cable, stainless steel cover plate 190 x 245 x 2 mm for invisible mounting via threaded rods, up to a wall thickness of 50 to 500 mm, including piezo push-button and 2 m extension cable. Connection and maintenance via service room. Activated hygiene flushing 24 hours after the last activity. With facility for parameterization, cleaning deactivation and communication via ECC2 function controller, 24 V DC.

Specification

default automatic hygiene flushing	24h after the last activity
functional principle	electronic self-closing
diameter nominal	DN 20
material casing	stainless steel
material code casing	1.4301 Chrome Nickel steel V2A
material fitting	brass-look
power supply connection	A3000 open 24 V DC
surface finish casing	satin finished
type of flushing fitting	WC flush valve
type of mounting	bolt fix with duct wall
type of operation	sensor operation
type of sensor	piezo-electronic sensor
basic colour	stainless steel-look

Technical specification

Unique ref.2030068176
Product familyFlushing systems
Product groupElectronic WC flushing systems
TypeObject (single object)
Date of publishing2025-06-11
Edition number1
Height (mm)245
Width (mm)190

Links

Product urlhttps://kwc-professional.com/en/and-nbsp_p2030068176

Material mainStainless steel
Designed inGermany
Manufactured inGermany
Weight Net (Kg)2.6

Classification

BIMobject CategorySanitary - Installation Systems
Uniclass 2015 CodePr_75_50_46_31
Uniclass 2015 DescriptionFlush control devices
