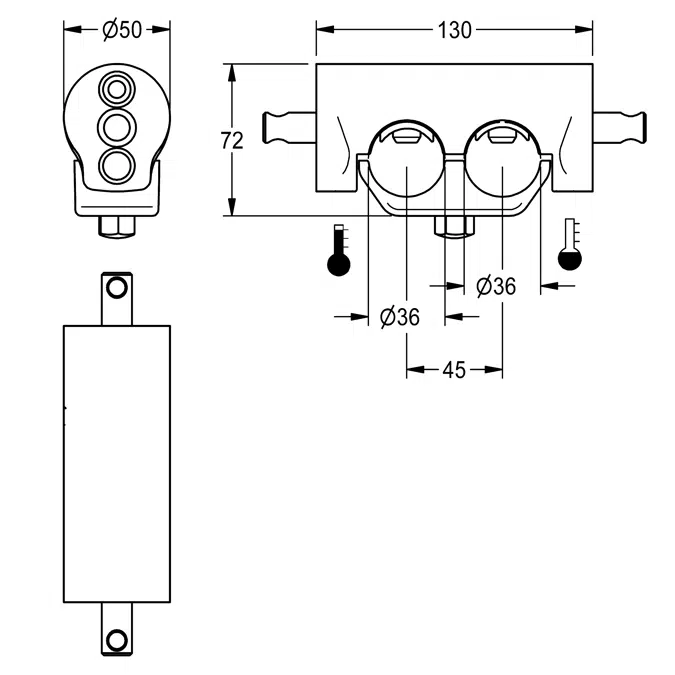

Double clamping bridge ACXM1004

Double clamping bridge for washbasin mixers with water connections positioned arranged side by side, for installation on distribution lines positioned next to one another, diameter 45 mm

Specification

quantity 1

quantity uom piece

Technical specification

Unique ref.2030059971
Product familyTaps
Product groupComplementary parts taps
TypeObject (single object)
Date of publishing2026-02-27
Edition number1
Height (mm)72
Width (mm)50
Depth (mm)130

Links

Product urlhttps://kwc-professional.com/en/and-nbsp_p2030059971

Material mainBrass
Designed inGermany
Manufactured inGermany
Weight Net (Kg)2

Classification

BIMobject CategorySanitary - Taps & Mixers
Uniclass 2015 CodePr_40_20_96_96
Uniclass 2015 DescriptionWall-hung wash basins

Region availability

Asia	Europe	Oceania	North America	Africa
United Arab Emirates	Austria	Australia	Canada	South Africa
	Belgium		United States
	Croatia
	Czech Republic
	Estonia
	Finland
	France
	Germany
	Hungary
	Ireland
	Italy
	Latvia
	Lithuania
	Luxembourg
	Netherlands
	Poland
	Romania
	Russia
	Serbia
	Slovakia
	Slovenia
	Spain
	Sweden
	Switzerland
	Ukraine
	United Kingdom
